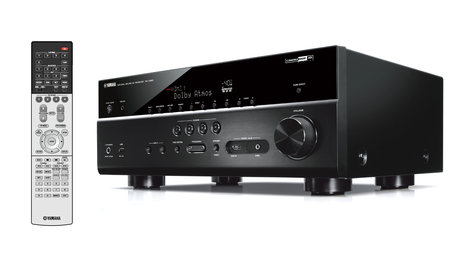

Yamaha RX-V683
Network Audio/Visual Receiver in Black

OUR PART #:  RX-V683BL

A 7.2-channel 4K Ultra HD network A/V receiver, the Yamaha RX-V683 features Dolby Atmos® and DTS:X™ object-based surround sound.
Learn More
Our Price: $599.95
List Price: $649.95
You save 8%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Yamaha RX-V683
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A 7.2-channel 4K Ultra HD network A/V receiver, the Yamaha RX-V683 features Dolby Atmos® and DTS:X™ object-based surround sound. With it, you can bring audio into up to 9 additional rooms via MusicCast wireless speakers or other MusicCast devices (sold separately). Wi-Fi®, Bluetooth® and AirPlay® wireless connectivity, a phono input for vinyl playback, and Zone 2 audio all provide added versatility to this system. Additionally, Dolby Vision™ and Hybrid Log-Gamma compatibility offer incredible contrast, smooth tone, and rich, bright colors.

Yamaha RX-V683 Includes:

  • RX-V683 unit
  • AM antenna
  • FM antenna
  • YPAO™ Microphone
  • Remote control
  • Batteries
  • CD-ROM (Owner's Manual)
  • Quick Start Guide

Yamaha RX-V683 Features:

  • MusicCast - Access all of your music with a simple app and wirelessly stream it throughout your home using your existing Wi-Fi network.
  • Bluetooth - Equipped with Bluetooth functionality to let you enjoy easy wireless music playback from smartphones and other devices. The Compressed Music Enhancer from Yamaha is now optimized for Bluetooth audio transmissions, ensuring your music will have vivid, lively sound quality during wireless playback.
  • Stream it all - Listen to Pandora®, Spotify, and thousands of free internet radio stations, plus the music stored on your smart devices and computers.
  • Wireless connectivity - All MusicCast products are fully loaded with Wi-Fi, Bluetooth, and AirPlay.
  • Expand to a whole home audio experience - When you’re ready, add MusicCast wireless speakers, sound bars or other devices in up to 9 other rooms and listen throughout your home.
  • No wires, easy installation - By using MusicCast, you don't need to fuss with placing wires through walls into other rooms.
  • Other Features:
    • 7.2-channel surround sound with Dolby Atmos® and DTS:X™
    • Zone 2 audio with Extra Bass, Volume Equalizer, Party Mode, and Main Zone Sync input for separate second room audio
    • HDMI® (6 in / 1 out) with 4K Ultra HD full support (4K / 60p [4:4:4]), HDR Video, including Dolby Vision and Hybrid Log-Gamma, and BT.2020 and HDCP 2.2
    • Phono input to connect to your favorite turntable
    • Compressed Music Enhancer and high-resolution audio support for sound clarity
    • YPAO sound optimization tuning for your home

Yamaha RX-V683 Specifications:

General

  • Manufacturer code: RX-V683BL
  • Standby Power Consumption (IR only): =0.1 W
  • Auto Power Standby: Yes
  • ECO mode: Yes
  • Dimensions (W x H x D): 17-1/8" x 6-3/4" x 14-7/8" (17-1/8" x 9-1/4" x 14-7/8" with antenna up)
  • Weight: 22 lbs.

Amplifier Section

  • Channel: 7.2
  • Rated Output Power (1 kHz, 2ch driven): 105 W (8 ohms, 0.9% THD)
  • Rated Output Power (20 Hz - 20 kHz, 2ch driven): 90 W (8 ohms, 0.06% THD)
  • Maximum Effective Output Power (1 kHz, 1ch driven) (JEITA): 150W (8 ohms, 10% THD)
  • Dynamic Power / Ch (Front L/R, 8/6/4/2 ohms): 125 / 165 / 190 / 235 W

Surround Sound Processing

  • CINEMA DSP: Yes (3D)
  • DSP Programs: 17
  • Dialog Level Adjustment: Yes
  • Virtual Presence Speaker: Yes
  • Virtual Surround Back Speaker: Yes
  • Dialogue Lift: Yes (no presence speakers required)
  • SILENT CINEMA / Virtual CINEMA DSP: Yes (Virtual CINEMA FRONT)
  • Dolby Atmos: Yes
  • Dolby TrueHD: Yes
  • Dolby Digital Plus: Yes
  • Dolby Surround: Yes
  • DTS:X: Yes
  • DTS-HD Master Audio: Yes

Audio Features

  • Pure Direct: Yes (with video on mode)
  • Compressed Music Enhancer: Yes (including for Bluetooth®)
  • YPAO sound optimization: Yes (R.S.C.)
  • YPAO Volume: Yes
  • Adaptive DRC (Dynamic Range Control): Yes
  • Initial Volume & Maximum Volume Setting: Yes
  • Bi-amp capability: Yes
  • Audio Delay: Yes (0-500 ms)
  • 192 kHz / 24-bit DACs for all channels: Yes (Burr-Brown)

Video Features

  • 4K Ultra HD Pass-through and upscaling: Yes (4K / 60p, 4:4:4)
  • HDMI 3D passthrough: Yes
  • HDMI Audio Return Channel: Yes
  • HDMI upscaling: Yes (Analog to HDMI® / HDMI to HDMI)
  • Deep Color / x.v.Color / 24Hz Refresh Rate / Auto Lip-Sync: Yes

Extensive Connectivity

  • HDMI Input/Output: 6 / 1 (HDCP2.2, HDR10 / Dolby Vision™ / HLG and BT.2020 compatible)
  • HDMI CEC: Yes (SCENE, Device Control)
  • USB Input: USB Memory, Portable Audio Player
  • Network Port: Yes
  • Front AV Input: HDMI / USB / mini-jack
  • Digital Audio Input/Output: Optical  2 / 0
  • Digital Audio Input/Output: Coaxial  2 / 0
  • Analog Audio Input/Output  5 (front 1) / 0
  • Composite Video Input/Output  1 / 0
  • Preout: Subwoofer (2 x mono)
  • Headphone Output: Yes

Connectivity

  • Wi-Fi: Yes (with Wireless Direct)
  • AirPlay: Yes
  • Bluetooth: Yes (SBC / AAC)
  • Phono Input: Yes
  • Component Video I/O: 1 / 0
  • Tuner Section: FM/AM Tuner: Yes

User Interface

  • On-screen display: Graphical User Inter face
  • SCENE: SCENE (4 sets)
  • App Control: Yes (iPhone® / iPad® / Android™ phone / tablets - all sold separately)
  • Web Browser Control: Yes

Zone Control

  • Zone 2 Audio Output: Preout
  • Powered Zone: Zone 2
  • +12V Trigger Output: 1
  • Remote (IR) Input/Output: 1 / 1
  • Party Mode: Yes
