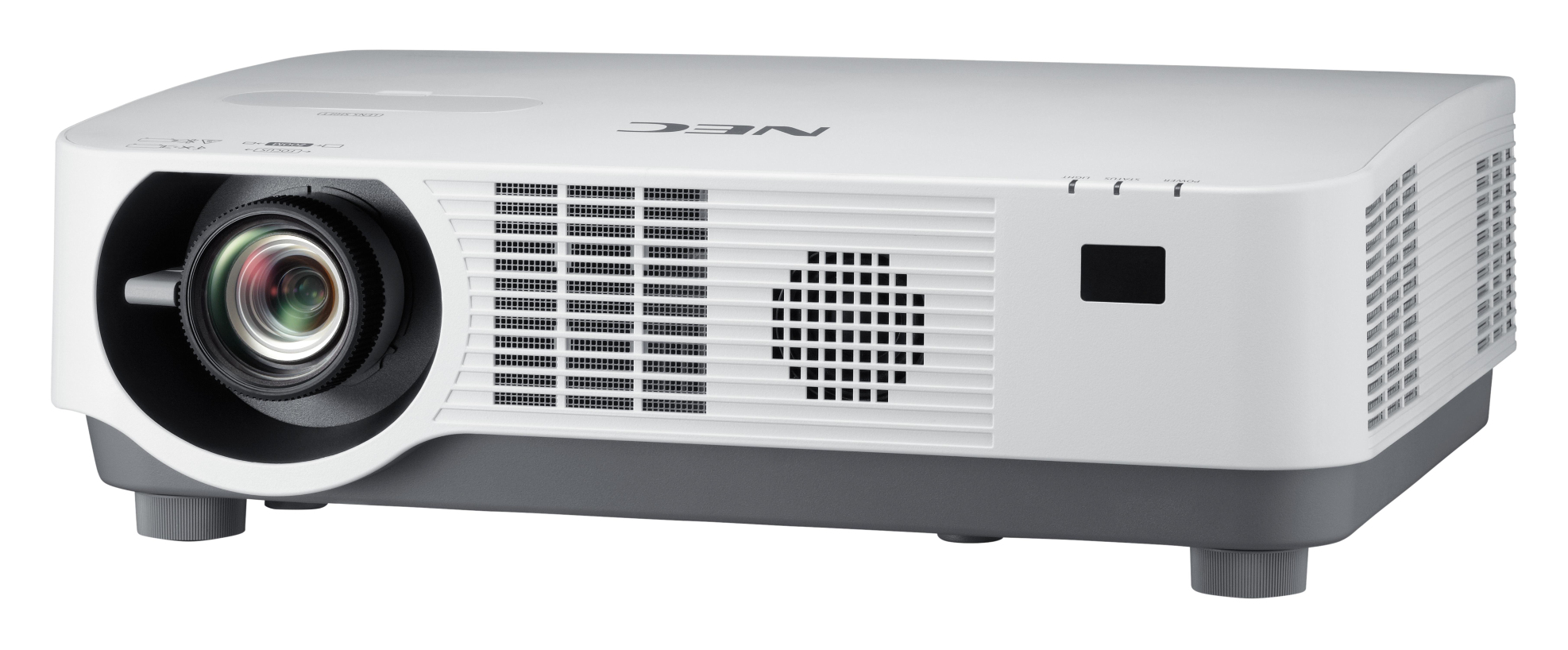

NEC Visual Systems P502HL-2
5000 Lumen 1080P DLP Laser Projector

OUR PART #:  NP-P502HL-2

The NEC NP-P502HL-2 is the smallest 5000 lumen installation projector with a laser/phosphor light source that makes it ideal for higher education classrooms...
Learn More
NEC P502HL-2 - Right Side View
NEC P502HL-2 - Connector View
NEC P502HL-2 - Top View

Click a thumbnail to see more images. (5 total)

Our Price: $3,409.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

NEC Visual Systems P502HL-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The NEC NP-P502HL-2 is the smallest 5000 lumen installation projector with a laser/phosphor light source that makes it ideal for higher education classrooms, corporate boardrooms and government training rooms. With more consistent brightness, improved color fidelity, and tilt-free or portrait modes these projectors will deliver in new verticals such as retail, simulation, and theme park installations. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership.

NEC Visual Systems P502HL-2 Includes:

  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • User manual
  • Quick Start Guide
  • Important Info
  • Product registration card
  • Security Stricker

NEC Visual Systems P502HL-2 Features:

  • High-brightness, lower power consumption enhance always-on capabilities of laser projection
  • Ideal for new applications such as digital signage
  • Lamp-less operation reduces TCO
  • Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for demanding integration applications such as higher education and corporate
  • Built-in HDBaseT enables simplified installations with a single cable for video, audio, and control signals: LAN connection for control and asset management over the network. Dual HDMI inputs (with HDCP) ensures quick switching between presentations
  • 15,000:1 Contrast Ratio creating extremely detailed images
  • Powerful 20W speakers provide volume needed for large rooms
  • Built in cornerstone correction including Pincushion and Barrel correction
  • Horizontal & Vertical lens shift enables flexible projector placement
  • MultiPresenter for audio and video transmission from up to 16 sources simultaneously to the projector over the network
  • NaViSet Administrator 2
  • Manual keystone correction
  • Wireless LAN
  • USB Viewer
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

NEC Visual Systems P502HL-2 Specifications:

  • Model Number: NEC NP-P502HL-2
  • Optical:
    • Display Technology: DLP (0.66" DMD)
    • Light Output(Lumens): 5000 normal
    • Resolution:
      • Native: 1080p 1920 x 1080
      • Maximum: WUXGA 1920 x 1200
    • Contrast Ratio (up to): 15,000:1 with auto iris
    • Lamp Type: Laser/Phosphor
    • Lamp Life (up to): 20,000 hours
    • Screen Size (diagonal): 30" to 300" (0.76 to 7.6m)
    • Throw Ratio: 1.24 to 2.1
    • Projection Distance: 2.6 to 47.6 ft. (0.8 to 14.5m)
    • Projector Angle:
      • Tele: 13.2° to 13.5°
      • Wide: 21.9° to 22.9°
    • Lens:
      • Zoom: 1 to 1.7
      • Focus: Manual
      • F number, f number: F=2.0, f=18.2 to 31.1mm
      • Shift: Mechanical +0.62 vertical, +/-0.28 horizontal
    • Keystone Correction:
      • Horizontal: +/- 25°
      • Vertical: +/- 30°
  • Signal Compatibility/Connectivity:
    • Synchronization Range:
      • Horizontal (Analog/Digital): 15-100 kHz
      • Vertical (Analog/Digital): 50-120 Hz
    • Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
    • SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
    • Macintosh Compatibility: Yes
    • Input/Output Terminals:
      • RGB1(analog): VGA 15-pin D-sub
      • RGB2(digital): HDMI w/HDCP
      • RGB3(digital): HDMI w/HDCP
      • RGB5(digital): HDBaseT
      • Video 1: RCA
      • Monitor out: VGA 15-pin D-sub
      • Audio out: 1/8 in. stereo (Variable audio out)
    • Audio: 20W speaker
    • External Control: RS-232, IR, DDC/CI, USB
    • Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
    • Networking: RJ-45 Monitoring
  • Electrical:
    • Power Requirements: 100-240V AC, 50/60 Hz
    • Input Current: 5.7-2.3A
    • Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 464W / 362W / 2.1W / 0.5W
  • Mechanical:
    • Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
    • Dimensions (WxDxH): 18.5" x 14.4" x 5.4" (469 x 365 x 137mm)
    • Net Weight: 19.4 lbs. (8.8 kg)
    • Fan Noise: 39 dB normal / 33 dB eco
    • Regulations: USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
  • Environmental:
    • Operating Temperature: 41°-104°F (5°-40°C)
    • Humidity: 20-80% non-condensing
    • Storage: 14°-122°F (-10°-50°C)
  • Limited Warranty: 5 year or 20,000 hour parts & labor warranty. Firstyear InstaCare Service.
