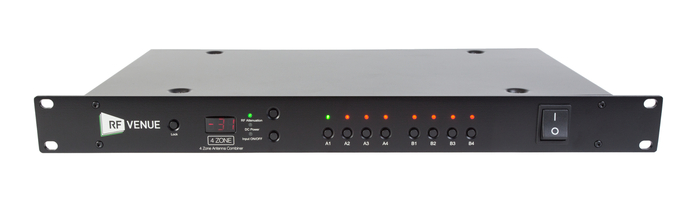

RF Venue 4 ZONE
4 Zone Antenna Combiner

OUR PART #:  ZONE-4

Designed to combine multiple pairs of diversity antennas used for wireless microphone receivers...
Learn More
Our Price: $650.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RF Venue 4 ZONE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Designed to combine multiple pairs of diversity antennas used for wireless microphone receivers, the RF Venue 4 ZONE takes the complexity out of multi-zone wireless microphone projects. Combines together up to 4 separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms. It features RF input ON/OFF, along with 0 dB to -31 dB input attenuation, DC power for in-line ampliers or active antennas, and individual input signal ON/OFF control. It allows fine tuning of RF levels in each coverage area by providing individual channel RF signal attenuation control down to -31dB in 1 dB steps. For active antennas or in-line amplifiers, it features selectable 12V DC power to accommodate long cable runs. It has selectable ON/OFF inputs, offering quick control of coverage zones for roaming microphone transmitters, letting you choose which zones are active as a live event or location sound project progresses, saving onsite setup and breakdown time. Additionally, when it's used together with up to 4 Diversity Fin Antennas and one or more DISTRO4 antenna distributors (antennas and distributors sold separately), 4 ZONE completes a turnkey package that can be used for any multi-zone wireless microphone project.

RF Venue 4 ZONE Includes:

  • (1) 4 ZONE unit
  • (1) AC Power Cable x1
  • (2) BNC to BNC coaxial cables

RF Venue 4 ZONE Specifications:

  • Manufacturer part#: 4ZONE
  • Carrier Frequency Range: 470 ~ 960 MHz
  • Full System Gain: 3 dB (┬▒3dB)
  • Input/Output Impedance: 50
  • A/B Antenna Input: 4+4
  • OIP3: -35 dBm (typ.) @ 2-tone; Pi=-15 dBm/tone
  • RF Input Attenuation: -31 ~ 0 dB (Step:1dB)
  • Input/Output Connectors: BNC(F): Input x8 / Output x2
  • Functions:
         1. DC Power (for In-Line Amplier) ON/OFF Control
         2. RF Input Attenuation Control
         3. RF Input Signal ON/OFF Control
  • In-Line Amplier Power: 12V/200mA*8
  • Power Supply: 100~240VAC; MAX 2A 50/60Hz
  • Dimensions (W x H x D): approx. 19" x 1.8" x 10.3" (480 x 45 x 260mm)
  • Typical application diagram (NOTE: Antennas, DISTRO4, and Wireless Microphone Receivers all sold separately):
