Chroma-Q CHCF272RGBA Color Force II [RESTOCK ITEM]
72" RGBA LED Batten


NOTE: This is a RESTOCK item that has been refurbished by the manufacturer. Please contact your Sales Pro for more information on this and other products.
Learn More
Sale Price: $3,828.87
List Price: $6,783.00
You save 44%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Chroma-Q CHCF272RGBA Color Force II [RESTOCK ITEM]
In Stock

Similar Products

NOTE: This is a RESTOCK item that has been refurbished by the manufacturer. Please contact your Sales Pro for more information on this and other products.

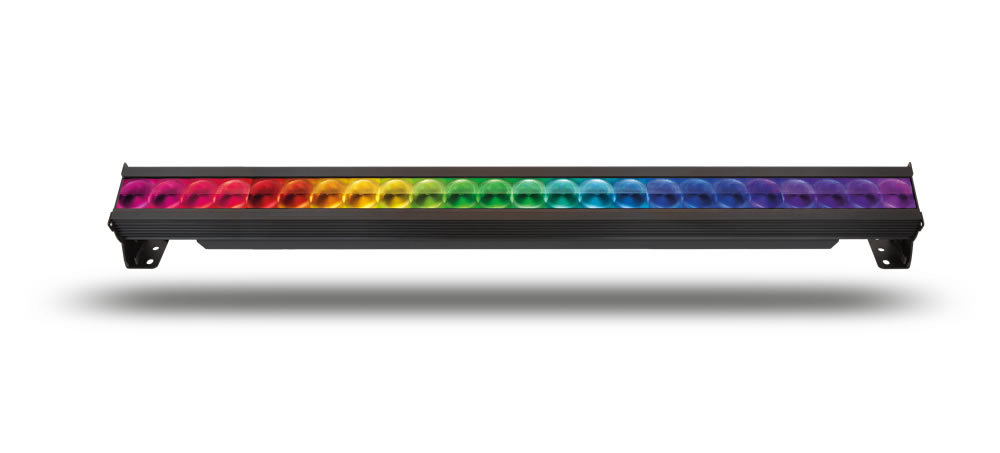

The Chroma-Q CHCF272RGBA Color Force II™ is a batten that delivers formidable output and superior color blending, all with smooth even coverage. With four powerful homogenised cells per foot/305mm, these units can be grouped and controlled to release your creativity. Unsightly color shadowing is eliminated with this innovative optical system that gives power enough to light nearly 12m of cyclorama. Perfect for a wide range of cyclorama, flood and wall washing applications where a powerful throw is needed. These fixtures are specifically designed to fit in flight cases used with the original Color Force.

Chroma-Q CHCF272RGBA Features:

  • Featuring Chroma-Q's proven award winning technology
  • Over 18,000 hot lumens will easily wash a 39 ft.(12m) cyc
  • Extremely smooth, uniform output
  • Homogenised RGBA color mixing
  • Pixel control to 3" (76mm) increments
  • High CRI of 92
  • Theatrical grade dimming
  • Rugged extruded aluminium body
  • Built-in power supply
  • Chroma-Q calibration means: superior fixture-to-fixture consistency
  • Works great in any theatre, TV, concert touring, exhibitions or corporate event
  • Optional internal Lumen Radio
  • Touchscreen user interface

Chroma-Q CHCF272RGBA Specifications:

  • Technical Specifications:
    • Dimensions: 69.25" x 6.5" x 7.5" (1,759 x 165 x 191mm)
    • Net Weight: 53 lb (24 kg)
    • Shipping Deimensions: 73" x 12" x 12.5" (1,855 x 305 x 320mm)
    • Shipping Weight: 59 lbs (27 kg)
    • Power Supply: Built-in
    • Power Input Rating: 100-240V AC 50-60Hz 800VA
    • Power Factor: 0.96 @ 120V, 0.99 @ 240V
    • Power Consumption: 660W @ 120V AC, 646W @ 240V AC
    • Idle Power Consumption: 29W @ 120V AC, 31W @ 230V AC
    • Power Connectors In/Out: Neutrik powerCON TRUE1
    • Control Protocol: ANSI E1.11 USITT DMX 512-A
    • Cooling System: Forced
    • Operating Temperature: 0°C to 40°C
    • Construction: Anodised aluminium extrusion
    • Color: Black
    • Built-in Hardware: Quick release lever for tilt adjustment
    • IP Rating: IP20
    • Approvals: CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750
  • Control & Photometric Data:
    • LED Engines: 24
    • Hot Lumen Output (Combined): 18,600
    • Control Modes: Strobe Options, RGBA, RGB, HSI, x1, x2, x3, x4, x6, x8, x12, x24, Look Select, Master, Odd / Even, Skip2, Skip3, Skip6
    • Dimming Curve: Theatrical
    • Variable Effects Engine: Strobe, Strobe on Top, Strobe Random
    • Optics: Fully homogenised
    • Beam Angle: 22° (approx.)
    • Beam Angle with Optional Cyc Optic: 80° x 35° (approx.)
    • Beam Angle With Optional Border Optic: 43° (approx.)
    • Beam Distribution: Asymmetrical direct illumination
    • CCT: 1,000K - 10,000K
    • Color Gamet: Performance enhanced
    • CRI: 92
    • Lamp Life: L70 at 50,000 hours
