Product Overview

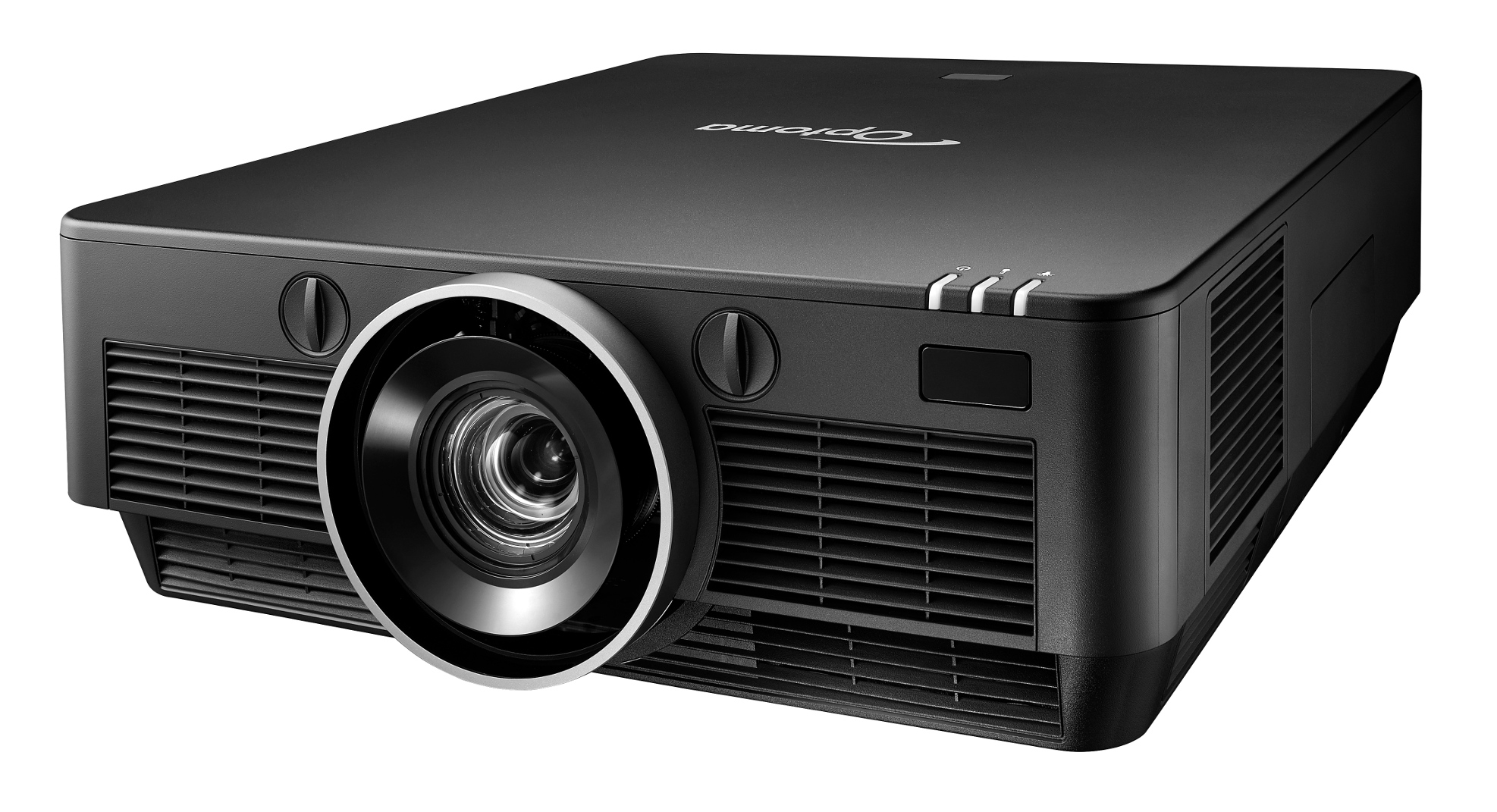

For a state-of-the-art 4K Ultra High Definition (UHD resolution) installation projector, an option on your list should be the Optoma 4K500. This installation projector is engineered to deliver crisp, ultra-sharp images and presentations with a high level of detail and astounding color. With 4 times the pixel count of a 1080p projector, a resolution of 3840x2160 pixels, 5000 lumens, and advanced optics, the 4K500 delivers razor sharp text in PowerPoint presentations and Word documents in addition to cinematic video in breathtaking color for large venues, meeting rooms, houses of worship, and post production screening rooms.
The 4K500 is powered by a revolutionary Texas Instruments 4K DLP UHD chipset with a high performance DMD. This technology utilizes XPR video processing with fast switching to display 8.3 million distinct pixels. Offering High Dynamic Range support in the form of HDR10, with a vertical and horizontal lens shift, and a powerful 2.0x zoom, the 4K500 has been crafted to deliver the definitive 4K UHD HDR experience.
High Dynamic Range (HDR) leverages BT.2020 wide color gamut coverage to deliver bright whites, deep black levels, and life-like, real world color. Pure Motion and UltraDetail features deliver stunning image reproduction for any video content. In addition, the 4K500 is equipped with RS232 and RJ45 ports for full control, and an optional wired remote is available for installations where IR interference limits remote functionality.
Optoma 4K500 Features:
- Native 4K UHD 3840x2160 2160p
- Bright 5,000 lumens, HDR compatible with BT.2020 coverage
- 2.0x Motorized Zoom and Focus with high optics performance
- Four digital ports including HDMI 1.4a and 2.0 with HDCP 2.2
- Vertical and Horizontal lens shift for flexible installation
- Pure Motion and UltraDetail for smooth image reproduction
Optoma 4K500 Specifications:
- Display Technology: “Single 0.66” TRP S610 4K UHD DMDDLP® Technology by Texas Instruments™
- Native Resolution: UHD (3840x2160)
- Brightness: 5000 Lumens
- Contrast Ratio: 5000:1
- Lamp Life2: 2000/3000 hrs (Bright/ECO)
- Throw Ratio 3: 1.35 - 2.63 (with tolerance +/- 5%)
- Zoom Type: Optical Zoom 2.0x, Digital Zoom 0.95x -1.25x
- Lens Shift: Horizontal Lens Shift 35% offset (with tolerance +/- 5%), Vertical Lens Shift 80% offset (with tolerance +/- 5%)
- I/O Connectors: 2xHDMI 1.4a, 1xHDMI 2.0 (w/ HDCP 2.2and Full 18Gbps), HDMI-Out, Display Port, VGA-In, USB-A Power, RJ45, Remote In (3.5mm), RS232C, 2x 12V Trigger, Jack 3.5mm
- Weight: 36 lbs
- Dimensions (W x H x D): 19.5” x 22.5” x 7.5” (with feet)
- Aspect Ratio: 16:9 (native), 4:3, Auto, LBX (2160p and 1080p)
- Projection Screen Size: 84” - 300”
- Projection Distance: 8.2ft - 30ft
- Projection Lens: F/2.5 - 2.67; F= 19.975- 39.811mm with Iris
- Uniformity: 85%
- Maximum Resolution: 4K 4096x2160 @ 60Hz with XPR Technology
- Computer Compatibility: UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1366x768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible
- Video Compatibility: UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz), 480i/p, 576i/p
- Horizontal Scan Rate: 31.0 to 135.0KHz
- Vertical Scan Rate: 24Hz to 120Hz
- Displayable Colors: REC.2020 will be used anytime the source content contains HDR metadata.
- Noise Level (Eco mode): 32/35 dB (ECO/Bright) normal
- Power Supply: AC input 100–240V, 50–60Hz, auto-switching
- Power Consumption: 600W Typical (Bright mode), 660W Max (Bright mode), 480W Typical (Eco+ mode), 528W Max (Eco+ mode)
- Operating Conditions: 41–104°F (5–40°C), 85% max humidity
- Operating Temperature: 41–104°F (5–40°C), 85% max humidity
- Security: Kensington® lock port, password (OSD)
- Remote Control: IR Full Size Full Function Backlit Remote Control and Wired Remote
- Optional Accessories: Universal ceiling mount, IR/Wired Remote, Lamp
- Optional Wireless: No
- Warranty: 3 Years
- RoHS: Compliant
- Projection method: Front, rear, ceiling mount, tabletop
- Warranty: 3 Year Optoma Express Warranty/1Year Lamp
Notes:
- 1 Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
- 2 Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions
- 3 +/- 5% tolerance
