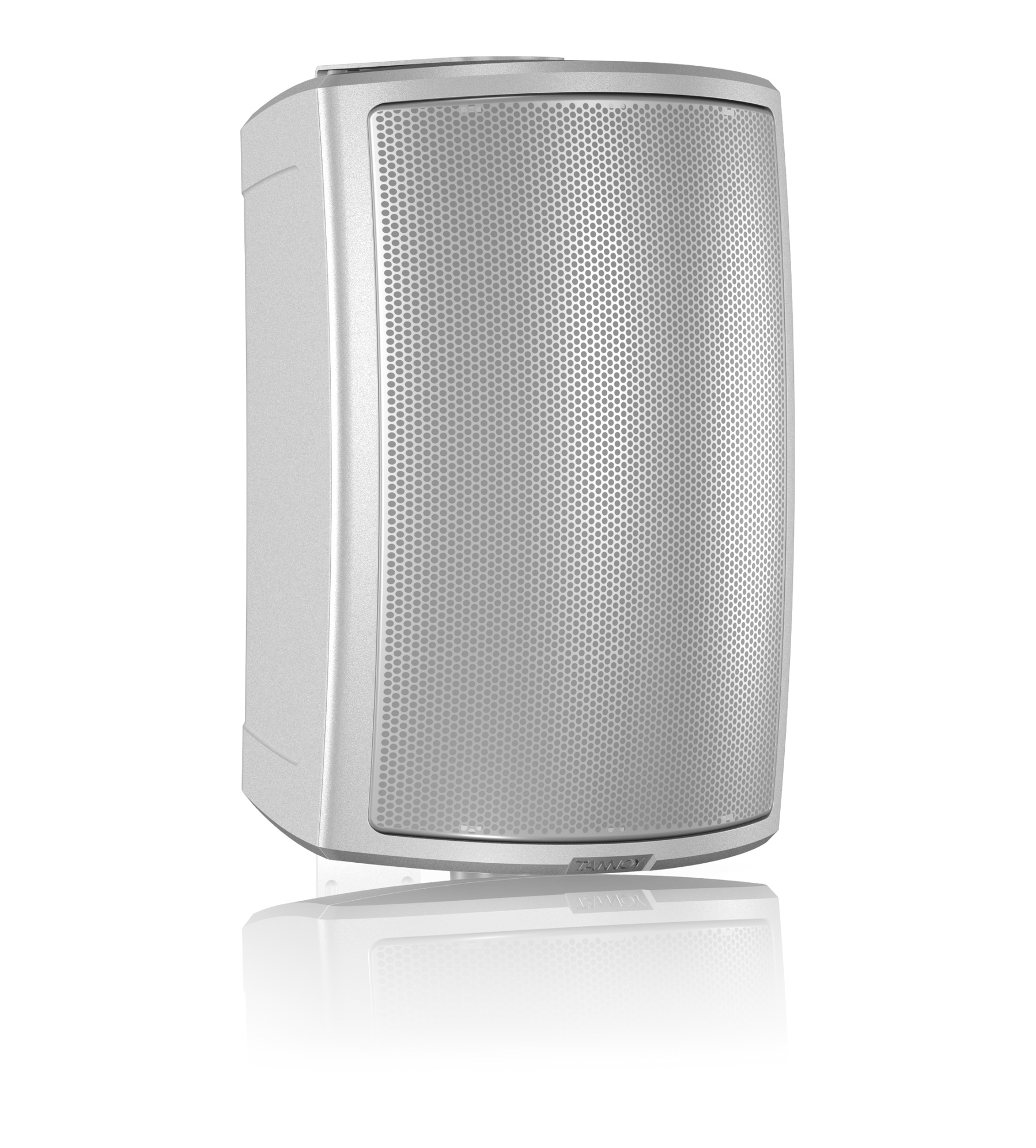

Tannoy AMS-6ICT-WH
Passive Surface-Mount Loudspeaker Speaker 6.5" 2-Way with ICT HF Driver, 16-Ohm, White

OUR PART #:  AMS-6ICT-WH

A full-bandwidth 240-Watt high-sensitivity loudspeaker, the Tannoy AMS 6ICT-WH utilizes their proprietary 6" ICT (Inductive Coupling Technology) point-source driver...
Learn More
Our Price: $229.99

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Tannoy AMS-6ICT-WH
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A full-bandwidth 240-Watt high-sensitivity loudspeaker, the Tannoy AMS 6ICT-WH utilizes their proprietary 6" ICT (Inductive Coupling Technology) point-source driver, delivering consistent broadband directivity and providing superb long-term reliability. With its extended frequency range and 90° controlled conical dispersion pattern, it's ideally suited for indoor and outdoor music applications including theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. Additionally, it features an elegantly styled semi matt white molded enclosure that blends beautifully into any décor and has an IP65 rating, so it's an great choice for both indoors and outdoors, such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Tannoy AMS-6ICT-WH Features:

  • Full-range surface-mount loudspeaker for indoor and outdoor installation applications
  • 60 Watts continuous, 240 Watts peak power
  • 6" ICT (Inductive Coupling Technology) point-source driver for extended frequency range and reliability
  • 90° controlled conical dispersion for optimum coverage and forward gain
  • High durability design for constant heavy usage in demanding applications
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Optimized for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
  • All components weather resistant to IP65 for outdoor use
  • High temperature-resistant ABS enclosure rated at 120°C
  • Semi matt white paint finish fits unobtrusively in any environment
  • Yoke bracket included for ease of installation
  • Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage
  • Weatherproof cable gland cover to protect Phoenix connectors and tap selector switch
  • 5-Year Warranty Program
  • Designed and engineered in the U.K.

Tannoy AMS-6ICT-WH Technical Specifications

Performance

  • Frequency Response (-3 dB) (1): 75 Hz - 22 kHz
  • Frequency Range (-10 dB) (1): 55 Hz -
  • System Sensitivity (1 W @ 1 m) (2): 90 dB (1 W = 4 V for 16 Ohms)
  • Nominal Coverage Angle: 90 degrees conical
  • Power Handling:
    • Average: 60 W
    • Program: 120 W
    • Peak: 240 W
  • Recommended Amplifier Power : 120 W @ 16 Ohms
  • Nominal Impedance: 16 Ohms
  • Rated Maximum SPL:
    • Average: 108 dB
    • Peak: 114 dB
  • Transformer Taps (via front rotary switch):
    • 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation
    • 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation

Transducers

  • Low Frequency: 1 x 165 mm (6.50") treated multi fiber paper pulp cone
  • High Frequency: ICT

Physical

  • Enclosure: ABS
  • Grille: Steel, plated and painted
  • Connectors: Removable locking connector with screw terminals
  • Transformer setting control: Rotary switch
  • Dimensions (H x W x D): 14.36" x 9.05"x 10.58" (364.8 x 230.0 x 268.8mm)
  • Net Weight (ea): 11.33 lbs (5.14 kg)
  • Shipping Weight: 12.83 lbs (5.82 kg)
  • Included Accessories: Yoke bracket
  • Finish Color: White
