Decimator Design MC-DMON-QUAD
1 to 4 Channel 3G/HD/SD-SDI MultiViewer with Custom Layouts

OUR PART #:  MC-DMON-QUAD

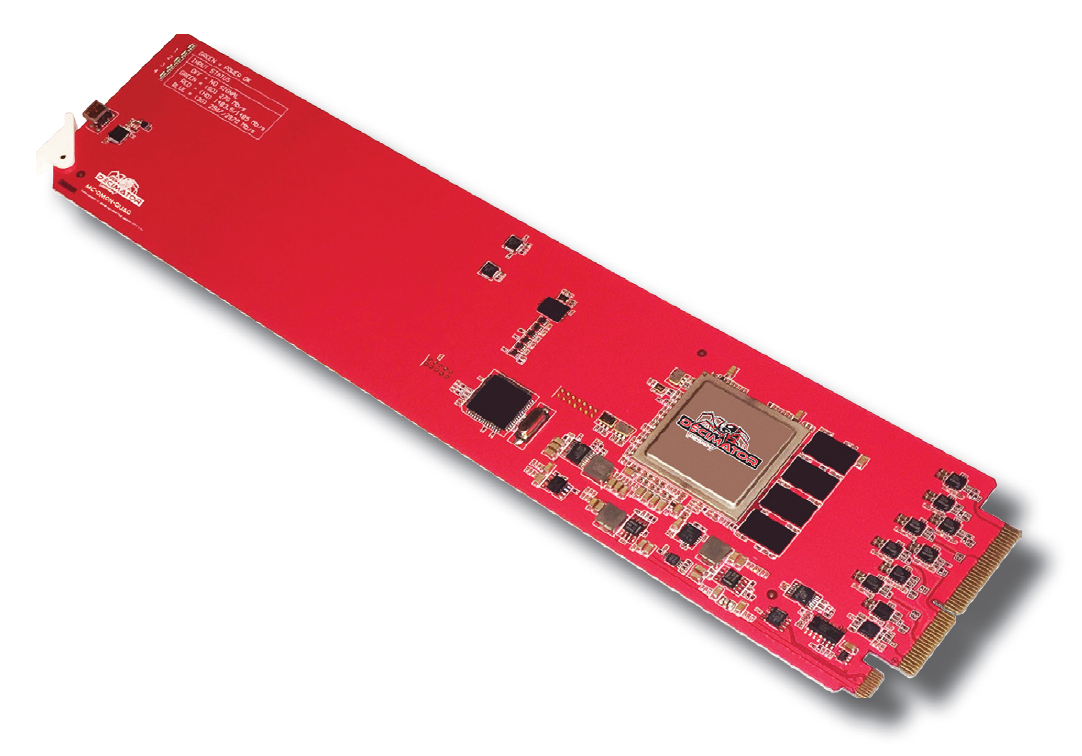

This Open Gear Card from Decimator Design is the MC-DMON-QUAD. This model is a low cost miniature 1 to 4 Channel 3G/HD/SD-SDI MultiViewer or a 4 to 1 input multiplexer.
Learn More
Our Price: $295.00
Decimator Design MC-DMON-QUAD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

This Open Gear Card from Decimator Design is the MC-DMON-QUAD. This model is a low cost miniature 1 to 4 Channel 3G/HD/SD-SDI MultiViewer or a 4 to 1 input multiplexer. The MC-DMON-QUAD supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B and comes with Custom Layouts along with various standard layouts.

Decimator Design MC-DMON-QUAD Features:

  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Audio ID overlay
  • 3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol
  • Tallies can be applied to either Tally Boxes (Default) or Border
  • Tally boxes allows for up to 4 Tallies per window
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen MultiViewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • 4 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)
  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per quadrant
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs
  • USB Mini B port for control and firmware updates
  • Supports openGear DashBoard for control
  • The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485

Decimator Design MC-DMON-QUAD Specifications:

  • SDI Input & Output Formats:
    • 3G:SMPTE 424M @2.97 and 2.967Gb/s:
    • 1080p @60/59.94/50Hz
  • HD:SMPTE 292M/274M/296M @1.485 and 1.435Gb/s:
    • 1080i @60/59.94/50Hz
    • 1080p/psf @30/29.97/25/24/23.98Hz
    • 720p @60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:SMPTE 259M @270Mb/s:
    • 625i50 (PAL)
    • 525i59.94 (NTSC)
  • LED Status:
    • Power / Update
    • 4 x Signal lock and rate
  • Inputs:
    • 4 x (3G/HD/SD)-SDI
    • USB Mini B for control and updates
    • 3-pin connector for UMD and Tallies via RS422/485
  • Outputs: 1 x SDI (3G/HD/SD)-SD
