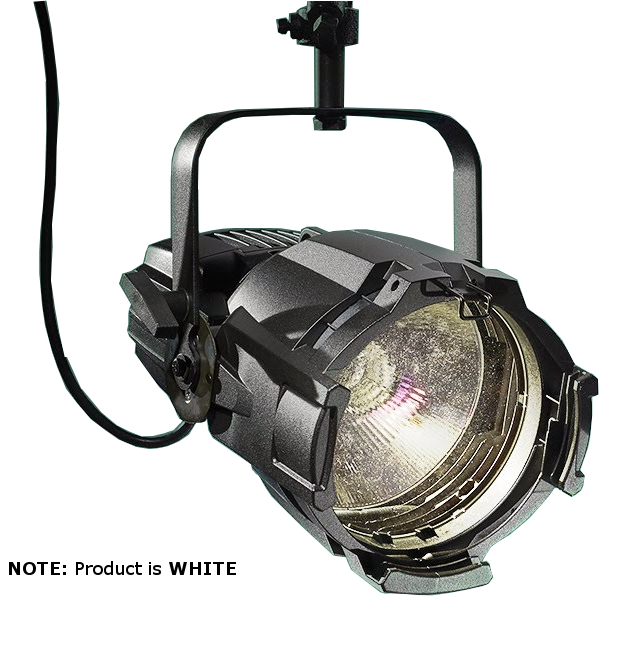

ETC/Elec Theatre Controls S4WRD PAR
White Fixture Body Only

OUR PART #:  S4WRDPAR-1

The ETC S4WRD PAR Fixture Bodies allow you to transform your Source 4WRD LED into a beautiful softlight.
Learn More
Our Price: $250.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls S4WRD PAR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ETC S4WRD PAR Fixture Bodies allow you to transform your Source 4WRD LED into a beautiful softlight. Taking advantage of the great energy efficiency, cool operating temperatures, DMX dimming or line voltage dimming and no lamp changes, the Source 4WRD PAR and PARNel deliver an amazing output without compromise.

Applications:

  • House of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • Cafetoriums

ETC S4WRD PAR Includes:

  • Mounting post
  • Color frame
  • PAR ships with AR coated flat lens (other lenses sold separately)

ETC S4WRD PAR Features:

  • Fixture bodies for use with Source 4WRD LED
  • Works just like a Source Four PAR, using the sameaccessories
  • 155W at full output
  • Brighter than the 750W HPL versions
  • Uses same Source 4WRD LED as the Source 4WRD ellipsoidal

ETC S4WRD PAR Specifications:

  • Source:
    • LED Details: S4WRD LED (48 Cree LEDs) *Not Included*
    • Max Lumens: 10,569
    • Lumens Per Watt: 68
    • L70 Rating (Hours to 70% output): 30,000 hours (estimated value, official results pending)
  • Color:
    • Colors Used: White - 3000 K (Source 4WRD LED)
    • Color temperature range: 3000 K
    • Calibrated Array: No
    • Red Shift: No
    • NOTES: S4WRD is available in 80+ CRI (Standard) and 90+ CRI (Gallery) - See S4WRD datasheet for details
  • Optical:
    • Beam angle range: 19.5°-62°
    • Gate size: N/A
    • Aperture size 7"
    • Pattern projection: No
    • Pattern size: N/A
    • Camera flicker control/Hz range: No
    • NOTES: PAR ships with an AR coated flat lens. Additional PAR lenses sold separately. PARNel ships with
      PARNel lenses
  • Control:
    • Input method: Line Voltage with DMX Control or Line dimmed
    • Protocols: DMX via RJ45 connector
    • Modes (Footprint): 1
    • RDM configuration: Yes
    • UI type: 7-segment address display
    • Local control: Yes
    • Onboard presets: No
    • Onboard sequences: No
    • Onboard effects: No
    • Slave/Master control: No
    • NOTES: Local level control via UI
  • Electrical:
    • Voltage range: 114-125V, 60Hz
    • Input method: Hard wired, 1-meter cord, Edison plug
    • Inrush: 30A (first half-cycle) at 120V
    • Fixtures per circuit: 14 (20A switched circuit, R20 module or similar)
    • Wattage (Typical/Standby): 155W/1.2W
    • Current draw: 1.35A at 120V
    • NOTES: When using line dimming, see the S4WRD Manual for dimmer setup
      • When using line dimming, standby power is 0W
  • Thermal:
    • Ambient operating temp: 41°-104°F (5°-40°C)
    • Fan (controllable): Yes (no)
    • Droop compensation: No
    • dB range: 28dBa average at 1m
    • BTUs/hour: 529
  • Physical:
    • Materials: Die-cast aluminum
    • Color options: Black, white, silver or custom color
    • Mounting options: Yoke
    • IP rating: IP-20
    • Weight: 6.6lbs
