Product Overview

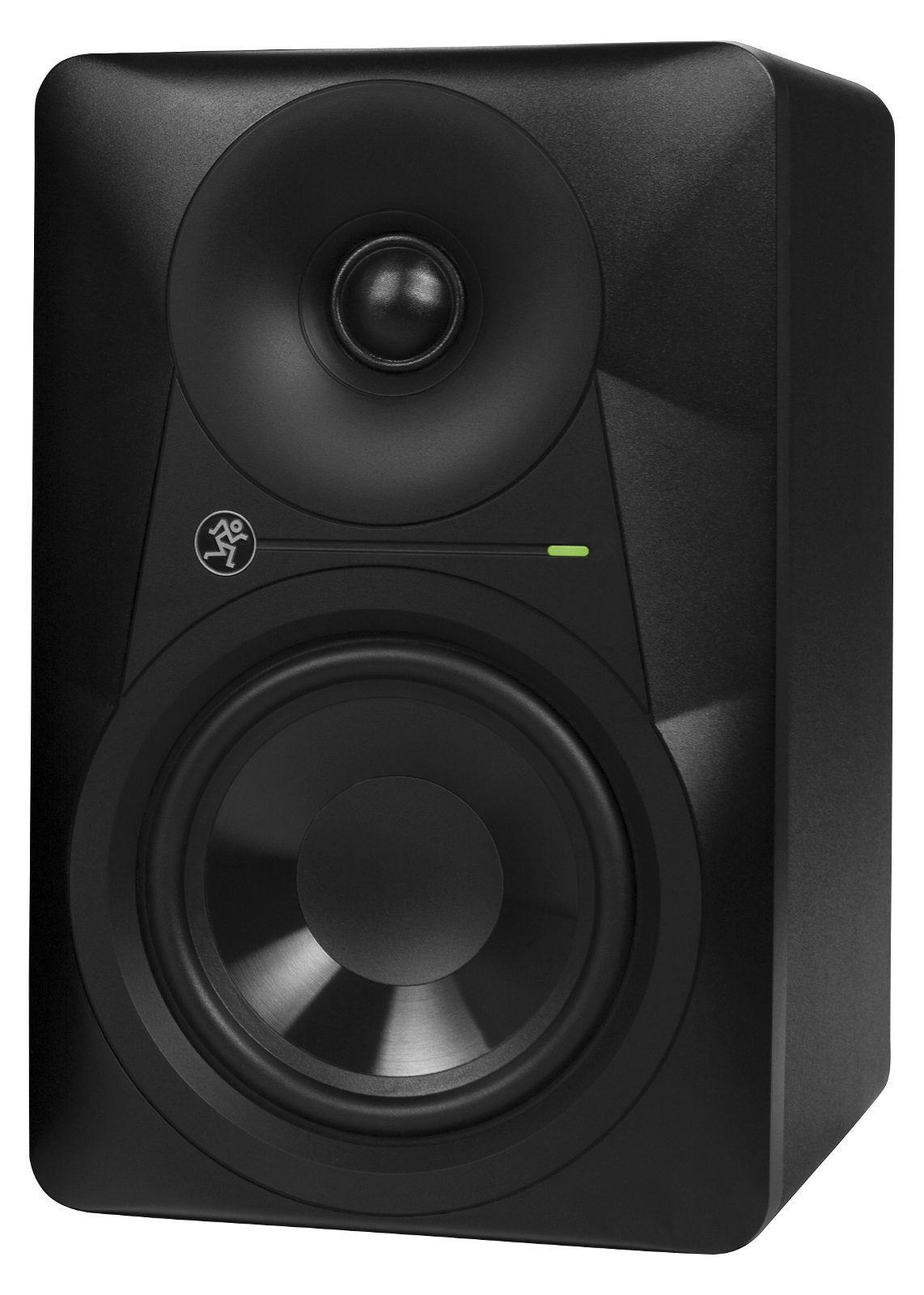

The Mackie MR524 is a 5" powered studio monitor.
MR Series monitors provide professional sound with incredible accuracy and clarity. Using Mackie's extensive studio monitor design experience, these monitors are tuned to stay true to your mix whether it's dialogue, hip hop, rock, or more. The proven logarithmic waveguide provides an ultra-wide listening sweet spot and enhanced stereo imaging while the Acoustic Space controls allow adjustment of the frequency response to match your studio.
Features
- Designed for superior mix translation and accuracy for professional results in any studio
- Equipped with Mackie’s proven logarithmic waveguide design
- Ultra-wide dispersion for enhanced stereo imaging and listening sweet spot
- Precise acoustic alignment offers incredibly balanced sound across the entire frequency spectrum
- 1” silk dome tweeter provides fast transient response for detailed high end and vocal clarity
- 5” polypropylene woofer delivers responsive, dynamic low frequency response
- 50 watts of bi-amplified Class A/B amplification
- Optimize MR monitors for your mixing environment
- Adjustable acoustic space filters maintain flat response in typical placement configurations
- HF filter applies boost or cut to compensate for particularly dull or bright sounding rooms
- Professional all-wood cabinet design with custom internal bracing built to last, look great, and reduce distortion while enhancing bass response
- Flexible inputs for simple connection to almost any audio source
- Acoustically optimized with sound-tightening acoustic absorption material
Specifications
- Acoustic Performance:
- Frequency Response (-3 dB): 57 Hz - 20 kHz
- Frequency Response (-10 dB): 45 Hz - 20 kHz
- Sound Pressure Level @ 1m, +4 dBu into balanced input: 102 dB
- Maximum SPL per Pair: 108 dB
- Transducers:
- Low Frequency: 5.25" polypropylene woofer
- High Frequency: Neodymium magnet-driven 1" silk dome tweeter
- Amplifiers:
- LF Power: 30 W, 4 Ω load, 60 W peak
- HF Power: 20 W, 6 Ω load, 40 W peak
- Type: Monolithic IC, Class AB with DMOS power stage
- Electronic Crossover:
- Crossover Type: 24 dB/oct.
- Crossover Frequency: 2 kHz
- Sensitivity: +4dBu at 300 Hz for full output
- Input Impedance: 20 kΩ balanced bridging, 10 kΩ unbalanced
- HF Equalization: ±2 dB @ 3 kHz and above
- Enclosure: 0.47" thick MDF with 0.83" MDF front panel
- Damping: Adiabatic batting
- Dimensions (H x W x D): 11.1" x 7.1" x 8.7"
- Weight: 10.2 lbs.
