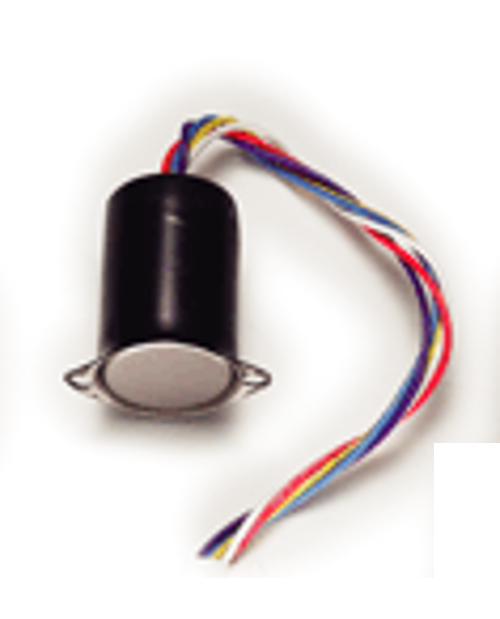

Whirlwind TRSP1F Single I/O Mic Splitting Transformer with Faraday

Whirlwind's TRSP1F transformers are the product of our desire to supply the highest quality transformers at ANY price. Constructed to rigid quality-control specifications, they are used in the most demanding recording and live sound applications.

The transformers have new core and housing materials, special windings, Faraday shielding, high level-handling capabilities and frequency response were all considerations in design.

The TRSP1F facilitate microphone isolation and splitting.

Specifications

• Model: TRSP1F
• Input Impedance: 150 ohms
• Output Impedance: 150 ohms
• Frequency Response (Hz): 20-20k ±0.63 dBu
• THD @ 1kHz: 0.005%
• Max Input (dBu): +16
• Max Input @ 20Hz (dBu): -.5
• Number of Inputs: 1
• Number of Outputs: 1
• Pri to Sec Loss (dB): 0.88
• Metal Can: Yes
• Faraday Shield: Yes

Note

NOTE: Review attachment to ensure this is the correct cable.
