Gefen EXT-DVIKA-HBT2 DVI KVM HDBaseT 2.0 Extender with USB & RS-232

OUR PART #: EXT-DVIKA-HBT2 MFR #: EXT-DVIKA-HBT2

Copied to clipboard

The EXT-DVIKA-HBT2 uses Gefen's implementation of the latest HDBaseT 2.0 technology to extend DVI over a single CAT-5e cable, up to 495 ft (150 m). ...Read more

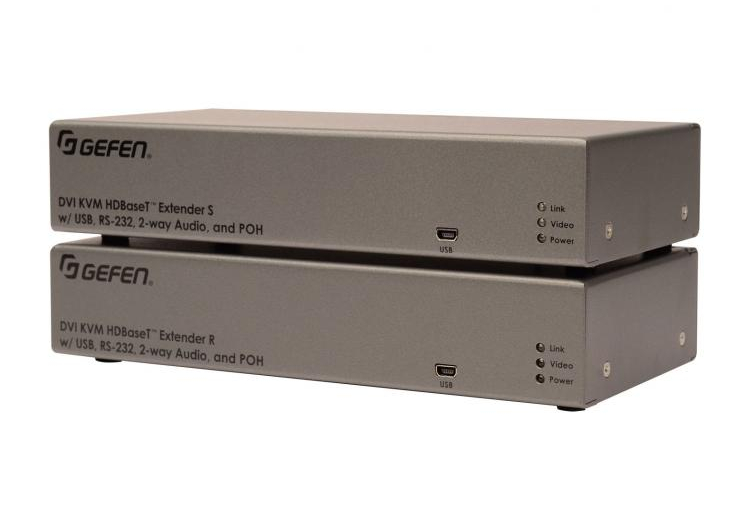

Gefen EXT-DVIKA-HBT2 DVI KVM HDBaseT 2.0 Extender With USB & RS-232 Image 1
Gefen EXT-DVIKA-HBT2 DVI KVM HDBaseT 2.0 Extender With USB & RS-232
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The EXT-DVIKA-HBT2 uses Gefen's implementation of the latest HDBaseT 2.0 technology to extend DVI over a single CAT-5e cable, up to 495 ft (150 m). The new HDBaseT 2.0 Colligo„¢ platform provides additional features such as USB and 2-way audio extension, and ensures an even more robust and resilient connection than the industry standard HDBaseT. Resolutions up to 1080p and 1920 x 1200 (WUXGA) are supported. HDMI resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) along with 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio are also supported when using Gefen DVI to HDMI cables. Supported HBR formats include Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio. USB, RS-232, and 2-way L/R analog audio can be extended between the Sender and the Receiver to accommodate a complete workstation including keyboard, mouse, select USB periperals, microphone, headphones, and powered speakers. POH (Power Over HDBaseT) technology provides power from the Receiver to the Sender unit, using the same CAT-5 cable that extends the DVI, audio, and control signals. Only the Receiver unit needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices. The Gefen Syner-G software with its powerful EDID Management capabilities speeds up configuration, performs real-time performance analysis via Link Monitoring, and simplifies in-field firmware updates. 1U tall, half-rack-width enclosures can be surface-mounted, installed in a standard 19" rack using the EXT-RACK-1U-GRY rack tray, or be placed on a shelf.

Gefen EXT-DVIKA-HBT2 Features:

  • Extends DVI, USB, RS-232, and 2-way Audio over a single CAT-5e:
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330ft (100m)
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495ft (150m)
    • WUXGA (1920 x 1200 @ 60Hz, 8-bit), up to 495ft (150m)
  • Extends HDMI**, USB, RS-232, and 2-way Audio over a single CAT-5e:
    • 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330ft (100m)
    • 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330ft (100m)
    • 4K DCI-Cinema (4096 x 2160 @ 30Hz 4:4:4, 8-bit), up to 330ft (100m)
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330ft (100m)
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495ft (150m)
    • WUXGA (1920 x 1200 @ 60Hz, 8-bit), up to 495ft (150m)
  • HDMI Features Supported:
    • HDMI 2.0 up to 4K 60Hz, 4:2:0, 8-bit color
    • HDCP 2.2 and 1.4
    • 12-bit Deep Color
    • LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master
    • Audio™ pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • Analog L/R Stereo Audio extension from Sender to Receiver and from Receiver to Sender
  • Receiver audio input accommodates a microphone or a line level audio source
  • POH (Power Over HDBaseT™) feature provides power to Sender unit over the link cable - only the Receiver needs external power
  • Advanced EDID Management via Gefen Syner-G™ software
  • Link Quality Monitoring via Gefen Syner-G™ software
  • In-field firmware update via USB, using Gefen Syner-G™ software
  • Locking power connector
  • 1U tall, half-rack-width enclosures can be:
    • Surface-mounted
    • Installed in a standard 19" rack using the EXT-RACK-1U-GRY rack tray (available separately)
    • Placed on a shelf

Note:

**Use Gefen DVI to HDMI cables
