IOGEAR GWHDMS52MBK3

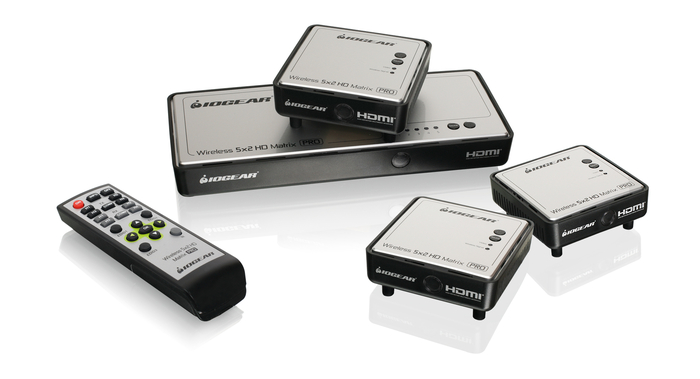

Wireless 5 x 2 HD Matrix Pro with Two Additional Receivers

OUR PART #:  GWHDMS52MBK3

The IOGEAR GWHDMS52MBK3 long range wireless 5x2 HDMI Matrix PRO has 2 addtional receivers.
Learn More
Our Price: $1,025.20
List Price: $1,099.95
You save 7%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

IOGEAR GWHDMS52MBK3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The IOGEAR GWHDMS52MBK3 long range wireless 5x2 HDMI Matrix PRO has 2 addtional receivers. Simultaneously transmit HD content wirelessly to four displays while viewing different HD content on a fifth local display.

IOGEAR GWHDMS52MBK3 Includes:

  • 1 x Wireless HDMI Transmitter
  • 3 x Wireless HDMI Receivers
  • 4 x Remote Controls
  • 1 x Component Adapter Cable
  • 1 x IR Blaster Cable (Transmitter)
  • 3 x IR Sensor Extender Cables (Receiver)
  • 4 x Power Adapters
  • 3 x HDMI Cables
  • 8 x Batteries
  • 1 x User's Guide
  • 1 x Warranty Card

IOGEAR GWHDMS52MBK3 Features:

  • Long Range Wireless 5x2 HD Matrix with Multicast - Includes 2 additional Wireless HDMI Receiver
  • Wireless fully uncompressed HD video up to 200 feet through standard home walls
  • Built in 5 x 2 Matrix - Allows you to switch and independently select any of 5 sources between 2 HDTVs
    • Location 1: HDTV can connect to transmitter's loop-through (local) port
    • Location 2: HDTV can receive content from wireless receiver
  • Multicast up to 5 HDTVs – Send content up to 5 locations at the same time (4 wireless)
  • Connect and wirelessly transmit content from a Blu-ray / DVD player, DVR / Cable box, Game console, Computer / laptop, and media server
  • Supports full uncompressed HD 1080p, 3D content, and 5.1 channel digital audio
  • Video Resolutions: 480p, 720p, 1080i and 1080p (24 / 30 / 60fps)
  • HDMI® Inputs / Outputs:
    • Transmitter:
      • 4 x HDMI in
      • 1 x Component in
      • 1 x Mini USB in
      • 1 x HDMI out (local port)
      • 1 x IR In
    • Receiver: 1 x HDMI output
  • Based on WHDI™ Technology
  • HDCP 2.0 Compliant
  • Built-in Infrared (IR) pass-through allows user control over their source devices that are in a different location from the wireless receiver
  • No software or driver installation needed

IOGEAR GWHDMS52MBK3 Specifications:

  • UPC: 881317511997
  • SKU: ECCN
    • GWHDMS52MBK3: 5A992C
  • Connectors:
    • Video Input: 4 x HDMI, 1 x Component
    • Video Output: 1 x HDMI Loop Through (Transmitter), 1 x HDMI (Receiver)
    • Power: 1 x Power Jack (Transmitter and Receiver)
  • Video Resolution: 480p, 576p, 720p, 1080i, 1080p (24/30/60fps) and 3D Support
  • Video Streaming: <1ms Latency
  • Audio:
    • Audio Output: Digital 6Mbps AC3 and DTS, Analog 48KHz and 24-bit per sample
  • Frequency: 4.9 ~ 5.9GHz (Includes non-DFS and DFS Frequency Bands)
  • Antenna Type: High Performance Internal
  • Range: Maximum video transmission range is 200ft (60m)
  • Power Switch: 1 x Push Button (Transmitter and Receiver)
  • LEDs:
    • Power On: Green / Red LED (Transmitter and Receiver)
    • Link: Green LED (Transmitter and Receiver)
    • Input: 5 x Green (Transmitter) 1 x Green (Receiver)
  • Power:
    • Voltage: 100~240v - 5V DC Jack (Transmitter), 5V DC mini USB (Receiver)
    • Amps: Transmitter: 2A, Receiver: 1.5A
  • Infrared:
    • Frequency: 3ft IR Extension Cable 38kHz, 47kHz & 56kHz
  • Operating Temperature: 0° ~ 40°C
  • Housing:
    • Case: Plastic
  • Cable Connections:
    • Input: 1 x Mini USB (Female)
  • Security: 128-Bit AES Encryption
  • Warranty: 1-Year
  • Dimensions (WxHxD): 12" x 10" x 9"
  • Weight: 7.10lb
