Teradek Bolt 500
HDMI Video Transceiver Set

OUR PART #:  BOLT-500

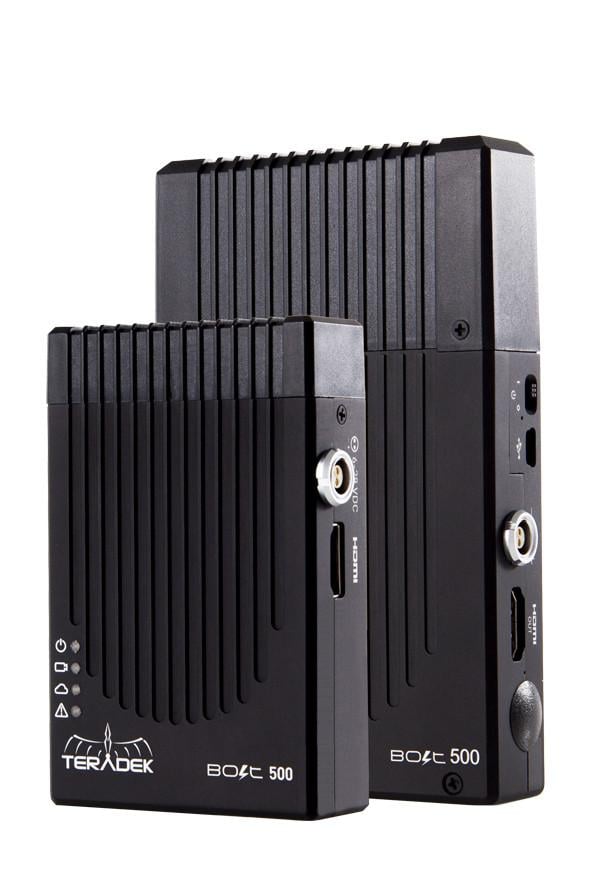

The Teradek Bolt 500 HDMI Video Transceiver Set includes one transmitter and one receiver.
Learn More
Our Price: $1,990.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Teradek Bolt 500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Teradek Bolt 500 HDMI Video Transceiver Set includes one transmitter and one receiver.

With highly refined software, new wireless radios, and a redesigned chassis, these new models are the most reliable and capable monitoring solutions we have ever built. Metadata and timecode support, 3D LUTs, dual inputs/outputs, multicast capable (one Transmitter can multicast up to four Receivers), manual frequency selection and USB 3.0 GRAB Engine are all included.

Teradek Bolt 500 Includes:

  • General:
    • (2) HDMI 18 inch Cable (Type A to Type A)
  • Transmitter:
    • (1) 2-pin Connector to PowerTap 18" Cable
    • (1)  Hot Shoe Adapter (1/4"-20")
    • (1) x HDMI 18" Cable (Type A to Type A)
  • Receiver:
    • (1) Thumb Screw 1.25" length (1/4"-20")
    • (1) Lightstand Adapter (1/4"-20")
    • (1) SDI (BNC to BNC) Cable 10"
    • (1) USB 3.0 Cable A to Micro B (3ft Length)
    • (1) PSU 2-Pin Connector to 18W AC Adapter 6ft cable
    • 1-Year Warranty

Teradek Bolt 500 Features:

  • Longer Range: Transmit visually lossless video up to 500ft with no delay
  • 2 New DFS Channels: Operate interference-free more often in the USA and Europe by making use of two newly introduced DFS channels
  • More Robust Than Ever Before: Reach your Bolt’s full range and potential right out of the box with new software that provides the most robust wireless link we’ve ever created
  • Rapid Reconnection: Reconnect times during a dropped link are now instantaneous once you move back into range
  • Built-In HDMI to SDI Converter: Perfect for use with MoVI and other gimbals, Bolt’s TX has a built-in HDMI to SDI converter, allowing you to connect both your on-camera monitor and video source via the same device

Teradek BOLT-500 Specifications:

  • Bolt Pro 500 3G-SDI Video TX Specifications:
    • Video Inputs: 1 x SD/HD/3G-SDI (75 Ohm BNC)
    • Video Outputs: 1 x HD/SD/3G-SDI Loop-out (75 Ohm BNC)
    • Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers
    • Color Sampling: SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
    • Delay Tx To Rx: <0.001sec (when no video format conversion is enabled)
    • Supported Resolutions:
      • 1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1080psf23.98/24/25/29.97/30
      • 1080i50/59.94/60
      • 720p50/59.94/60
      • 480p59.94/576p50 (via HDMI ports only)
      • 480i(NTSC)/576i(PAL)
    • Video Compression: visually lossless
    • Color Correction:
      • CDL/1024 1D LUT (supports 10-bit color)
      • 33x33x33 3D LUT (supports 10-bit color)
    • Audio Compression: 48kHz 24-bit PCM
    • Audio Input: Embedded Audio I
    • Physical:
      • Dimensions: 1" x 2.6" x 4.0" (24 x 66 x 102.1mm)
      • Weight: 7.6oz (217g)
      • Construction:
        • Milled Aluminum (Chassis) and regulation-compliant PCB
        • Plastic Cap
    • Power Input: 2-Pin Connector 7-28 VDC
    • Nominal Power Consumption: 7.3 Watts (Measured at 1080p60)
    • Operating Temperature: 0° ~ 40°C
  • Bolt Pro 500 RX - 3G-SDI/HDMI Video RX Specifications:
    • Video Outputs:
      • 1 x SD/HD/3G-SDI (75 Ohm BNC)
      • 1 x HDMI Type-A receptacle
      • 1 x USB 3.0 micro B receptacle
    • Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers
    • Color Sampling:
      • SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
      • HDMI: RGB 4:4:4, 8-bit
    • Delay Tx To Rx: <0.001sec (when no video format conversion is enabled)
    • Dimensions: 1.0" x 3.5" x 5.8" (25.2 x 88.9 x 146.5mm)
    • Weight: 10.5oz (299g)
    • Construction:
      • Milled Aluminum (Chassis) and regulation-compliant PCB
      • Plastic Cap
    • Power Input: 2-Pin Connector 7-28 VDC
    • Battery: None
    • Nominal Power Consumption: 9 Watts (Measured at 1080p60)
    • Operating Temperature: 0° ~ 40°C
  • Mountability: Multiple mounting options with 1/4" holes
For 2nd Generation Bolt
Teradek SKB Protective Case For 2nd Generation Bolt
This protective case constructed by SKB is designed for 2nd Generation Teradek Bolts. The case can carry one transmitter and up to two receivers.
