Kramer TP-588D DVI and HDMI over Twisted Pair Receiver

OUR PART #: TP-588D MFR #: 50-80226090

Copied to clipboard

The Kramer TP-588D is a high-performance, extended-reach HDBaseT 1.0 receiver for 4K60Hz (4:2:0) DVI or HDMI, Ethernet, RS-232, IR and stereo audio signals over twisted pair. ...Read more

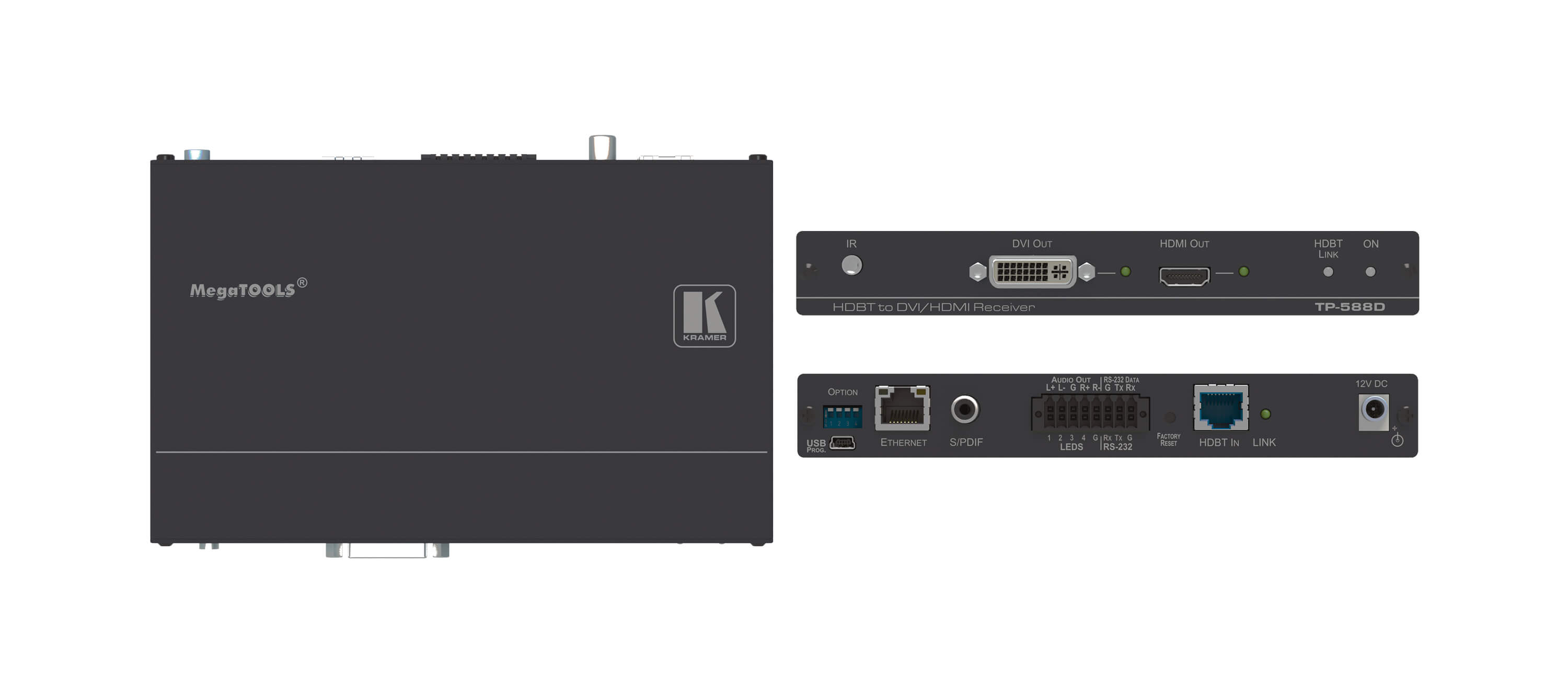

Kramer TP-588D DVI And HDMI Over Twisted Pair Receiver Image 1
Kramer TP-588D DVI And HDMI Over Twisted Pair Receiver
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Kramer TP-588D is a high-performance, extended-reach HDBaseT 1.0 receiver for 4K60Hz (4:2:0) DVI or HDMI, Ethernet, RS-232, IR and stereo audio signals over twisted pair. It extends video signals to up to 330ft (100m) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Features

  • High Performance Standard Extender
  • HDMI Signal Extension
  • I–EDIDPro™ Kramer Intelligent EDID Processing™
  • Multi–channel HDMI Audio Extension
  • Audio De–embedding (Drop–and–Continue)
  • Ethernet Extension
  • Bidirectional RS–232 Extension
  • Bidirectional Infrared Extension
  • Cost–effective Maintenance
  • Easy Installation

Specifications

  • Input: 1 HDBT on an RJ–45 female connector
  • Outputs:
    • 1 HDMI on an HDMI connector,
    • 1 DVI–D on a DVI–I connector,
    • 1 Stereo S/PDIF digital audio on an RCA connector,
    • 1 Stereo analog balanced stereo audio on a 5–pin terminal block
  • Ports:
    • 1 IR on a 3.5mm mini jack for IR link extension,
    • 1 RS–232 on a 3–pin terminal block for serial link extension,
    • 1 RS–232 on a 3–pin terminal block for device control,
    • 4 remote LED ports on a 5–pin terminal block,
    • 1 10Base–T/100BaseTx Ethernet on an RJ–45 female connector for device control and network traffic extension
  • Extension Line:
    • HDBaseT 1.0 compliant
    • Up to 100m (330ft) at 4K @60Hz (4:2:0)
    • Up to 130m (430ft) at full HD (1080p @60Hz 36bpp)
    • Up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)
  • NOTE: When using Kramer HDBaseT cables
    • Video:
      • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
      • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
      • HDMI 2.0 and HDCP 1.4 signal compliance
    • Audio:
      • Up to 2 Vrms level
      • 0.03% THD + NOISE @ 1 KHz at nominal level
    • Extended Ethernet: Up to 100Mbps extended line rate bandwidth
    • Extended RS-232: 300 to 115200 baud rate
    • Control RS-232: 115200 baud rate
    • Supported Web Browsers:
      • Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35
      • MAC:Chrome version 35, Firefox version 27, Safari version 7; Android OS: Chrome version 35; iOS:Chrome version 35, Safari version 7
    • Power Source: 12V DC, 2A
    • Power Consumption: 12V DC, 770mA
    • Enclosure: Mega Tools size, Aluminium type
    • Cooling: Convection ventilation
    • Operating Temperature: 32° to 104°F (0° to +40°C)
    • Storage Temperature: –40° to 158°F (–40° to +70°C)
    • Humidity: 10% to 90%, RHL non–condensing
    • Vibration: ISTA 1A in carton (International Safe Transit Association)
    • Safety Reguatory Compliance: CE
    • Environmental Regulatory Compliance: RoHs and WEEE
    • Included Accessories: Power supply
    • Dimensions (WxDxH):
      • Product: 7.38" x 4.53" x 1.00" (18.75 x 11.50 x 2.54cm)
      • Shipping: 13.58" x 6.50" x 2.05" (34.50 x 16.50 x 5.20cm)
    • Weight:
    • Product: 1.0lbs (0.5kg) approx
    • Shipping: 2.2lbs (1.0kg) approx
