Lowell ACR-SEQ4-1509
4-Step Rackmount Sequencer with (9) 15A Outlets

OUR PART #:  ACR-SEQ4-1509

Our Price: $379.19
List Price: $575.96
You save 34%!
Write the first review.
Lowell ACR-SEQ4-1509
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

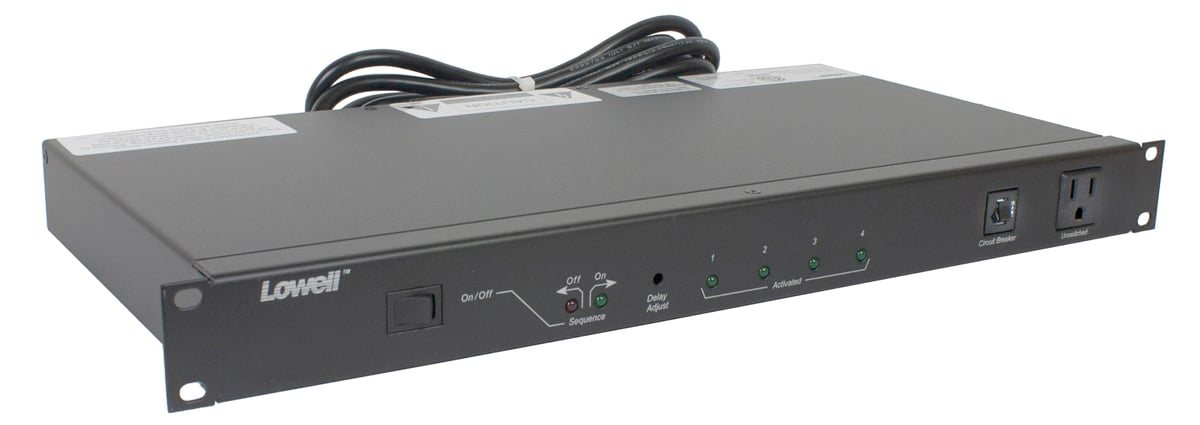

Lowell's ACR-SEQ4-1509 rackmount panel features 15A power outlets and a four-step sequencer for time-delayed activation/deactivation of equipment directly plugged into the six outlets controlled by the on/off switch. Three additional outlets are un-switched (always on). Also includes a rear terminal block to connect to optional remote switches.

Lowell ACR-SEQ4-1509 Features:

  • Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
  • Color coded LED status indicators
  • Rear terminal block for connection to optional remote switches (momentary)
  • Rear terminal block to allow system switches to be overridden for life safety system applications where fire code mandates an alarm interface

Lowell ACR-SEQ4-1509 Specifications:

  • Chassis: 19" x 9" x 1.75" (1RU)
  • Power Rating: 120VAC, 60Hz, 15A
  • Termination: 9 ft attached cord with NEMA 5-15P plug
  • Activation: Rocker switch
  • Outlets (9 total): 1 front 15A (un-switched), 2 rear 15A (un-switched), 6 rear 15A (switched)
