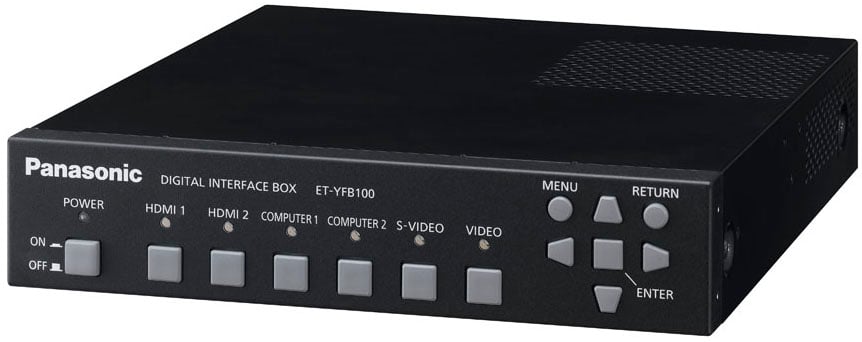

Digital Interface Box for Digital Link-Ready Projectors


NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $917.28
List Price: $1,299.00
You save 29%!
Write the first review.
In Stock

Related Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

By combining Panasonic's ET-YFB100G with a DIGITAL LINK-ready projector, video, audio and control signals can be transmitted over a single cable. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.

Applicable models:

  • PT-VW431D
  • PT-RZ470
  • PT-RW430
  • PT-RZ370
  • PT-RW330

Transmits Digital Signals with a Single Cable

  • Equipped with a DIGITAL LINK output terminal. Allows transmission of HDMI, uncompressed HD digital video, audio and control signals (Ethernet, RS-232C) for up to 328 ft (100 m) through a single CAT5e (STP) cable or higher
  • Abundant input terminals, including two sets of HDMI and RGB inputs.
  • A separate audio output enables sound to be output when the projector power is turned off
  • ET-YFB100G input can be selected with the remote control of a Panasonic projector with DIGITAL LINK compatibility
Outputting High-Quality Images in Their Optimal Form
  • Digital transmission allows clear image and sound quality without any degradation even over long distances
  • Digital Cinema Reality converts interlaced motion image signals into beautifully smooth progressive images
  • PC signals are automatically resized and output in the optimal resolution to match the projector panel resolution*
    *The output setting for the ET-YFB100G should be set to AUTO. This scaling/resizing function does not support some formats
  • The Auto Setup function automatically distinguishes the input signal and adjusts it to output the optimal angle of view
  • 3D video format transmission is supported (PassThrough mode only)

Convenient Functions Expand System Configuration Potential

  • DIGITAL LINK is an original function added to technology based on the transmission standards used in Crestron's DigitalMedia8G+, Extron’s XTP Systems, etc. Signals from the ET-YFB100G can also be relayed to a non-DIGITAL LINK-ready projector by using another manufacturer's equipment based on the same technology.**
    **Input selection and other ET-YFB100G operations can be performed only when connecting to a DIGITAL LINK compatible projector.
  • Brackets included for various installation needs, including server rack (EIA standards) mounting.
  • Eco mode*** automatically stops the DIGITAL LINK output when no input signal is detected.
    ***When using Eco mode, time and other menu settings must be made.
  • Closed caption compatible

Panasonic ET-YFB100G Includes:

  • AC adaptor x1
  • Powercords (2 m) x3
  • AC power cord holder x1
  • AC power cord holder screw x1
  • Mounting brackets for rack or countertop installation x2
  • Mounting bracket for rack installation x1
  • Countersunk screws x6
  • Legs x4
  • Screws for installing legs x4

Panasonic ET-YFB100G Specifications:

  • Power supply: DC 16 V (DC input terminal)
  • Power consumption (use with supplied AC adaptor): 16 W [0.2 W with the power off] (including power consumption of the AC adaptor)
  • AC adapter:
    • Input: 100-240 V AC, 50/60 Hz
    • Output: DC 16 V, 3.75 A
  • Scanning frequency:
    • HDMI: fH: 27-99 kHz,fV: 24-119.8 Hz, dot clock: 25.2-162 MHz
    • RGB (analog): fH: 15.6-99kHz, fV: 24-119.8 Hz, dot clock: 13.5-162 MHz
      • fH: 15.75kHz, fV: 60 Hz [480i (525i)]
      • fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
      • fH:45.00 kHz, fV: 60 Hz [720 (750)/60p]
      • fH: 33.75 kHz, fV: 60 Hz [1035(1125)/60i]
      • fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
      • fH: 33.75 kHz,fV: 30 Hz [1080 (1125)/30p]
      • fH: 56.25 kHz, fV: 50 Hz [1080(1125)/50p]
      • fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
      • fH: 31.25 kHz, fV: 50Hz [576p (625p)]
      • fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
      • fH: 28.13 kHz,fV: 50 Hz [1080 (1125)/50i]
      • fH: 27.00 kHz, fV: 24 Hz [1080(1125)/24p]
      • fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
  • Video/S-Video: fH: 15.75 kHz, fV: 60 Hz[NTSC/NTSC4.43/PAL-M/PAL60], fH:15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Terminals:
    • HDMI IN: HDMI 19-pin x2 (DeepColor, compatible with HDCP)
      480p, 576p, 720/60p, 720/50p, 1080/60i,1080/50i, 1080/24p, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x480)-WUXGA* (1,920 x 1,200), audio signal: linear PCM (sampling frequencies:48 kHz, 44.1 kHz, 32 kHz)
      *Supported only when the signals are compliantwith VESA CVT-RB.
    • COMPUTER IN: D-sub HD 15-pin (female) x2(RGB/YPBPR/YCBCR x2)
    • VIDEO IN: RCA pin x1 (Composite VIDEO)
    • S-VIDEO IN: Mini DIN 4-pin x1 (S-VIDEO)
    • AUDIO IN: M3 (L-R)x1
    • AUDIO OUT: M3 (L-R) x1 (variable)
    • SERIAL IN: D-sub9-pin (female) x1 for external control (RS-232C compliant)
    • REMOTE IN: D-sub 9-pin (female) x1 for external control (parallel)
    • LAN: RJ-45 x1, for network connection, 10Base-T/100Base-TX
    • DIGITALLINK: RJ-45 x1, for DIGITAL LINK connection (video, audio and control signals)
  • Dimensions not including protruding parts (WxHxD): 8-9/32" x 1-23/32" x 9-27/32" (210 x 44 x 250mm)
  • Weight not including AC adaptor: Approximately 2.54 lbs (1.15 kg)**
    **Average value. May differ depending onmodels.
  • Operating environment:
    • Operating temperature: 32°-104°F (0°-40°C)
    • Operating humidity: 20 %-80 % (no condensation)
