Product Overview

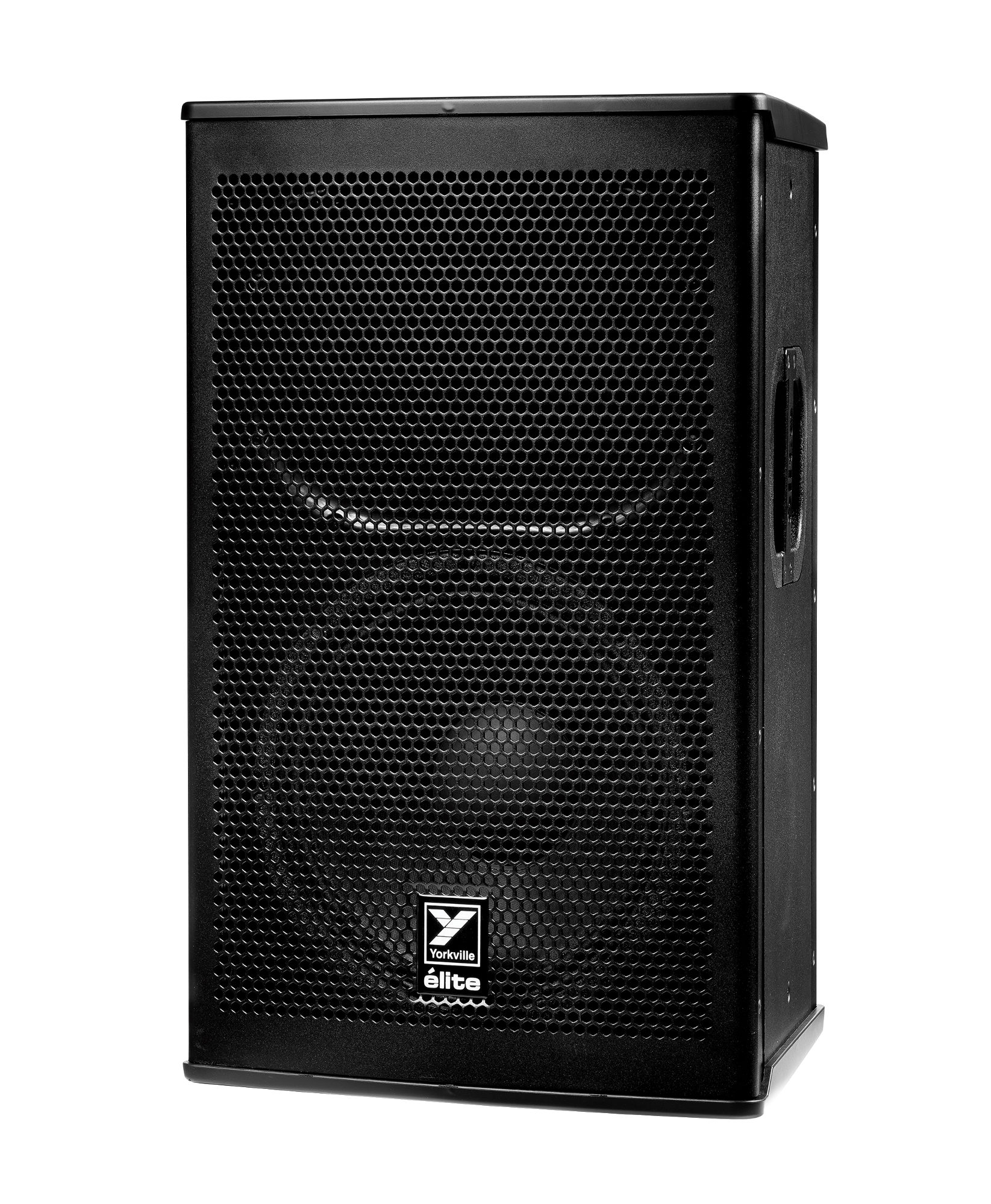

Yorkville's EF12P is a 12"/3", 1200-watt loudspeaker that's part of their next-generation Élite series.
Élite Series Speakers - The launch of the Yorkville Élite speaker series in the 1980's changed the face of high-powered portable speakers, with indestructible wood cabinets and high output drivers. It offered PA professionals and weekend warriors alike a new level of high SPL speakers in portable packages. It's 30 years later, and Yorkville is changing the rules again...
Yorkville EF12P Features:
- High-output, high-quality, and extremely durable dedicated Front of House box
- Completely redesigned next-generation Élite cabinet
- ABS-coated Birch plywood cabinet construction
- Multiband DSP limiting with 4 preset Performance Modes
- 3-inch Titanium Diaphragm Compression Drivers for Reduced Distortion at High SPL
- 12" Neodymium Woofer with 3" Voice coil
- Made in Canada
Yorkville EF12P Specifications:
- System Type: 2-Way, Active
- Program Power: 1200 Watts (2400 Watts peak)
- Max SPL (dB): 131dB peak, 125dB continuous
- Frequency Response (Hz +/- 3dB): 47 - 16k (Hz +/-3dB)
- Crossover Frequency (Hz): 1100
- Driver Configuration: 12", with 3" Diaphragm
- HF Driver(s): 3" Voice coil (Titanium Diaphragm)
- HF Dispersion (°H x °V): 60 x 40
- LF Driver(s): 12" neo magnet with 3" voice coil
- HF Power Amplifier (Watts): 300
- HF Amplifier Type: 3-Tier High Headroom
- LF Power Amplifier (Watts): 900
- LF Amplifier Type: Class-D
- Power Cable: 25ft (7.6m) Heavy-gauge detachable IEC
- In / Out Connections:
- 1 x XLR and ¼" Combi-jack Line Input
- 1 x XLR microphone Input
- 1 x XLR and ¼" Combi-jack Main Input
- 1 x XLR-M Thruput
- Input Impedance (Bal/UnBal): 95 kOhms / 90 kOhms
- Input Sensitivity (Vrms Sine): +4 dBv / 1.23V
- Controls
- Mixer Enable
- Mic Input with level
- Line Input with level
- DSP Mode (Club, Concert, Vocal, Custom)
- Sub (100Hz HP Filter)
- Bluetooth® control enabled
- Master Level
- Bar Handles: 2 x Side / 1 x Top
- Flypoints: 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
- Pole Mount Adapter (1-3/8" [3.5cm]): 1 Bottom: 1-3/8" (3.5cm)
- Enclosure Materials: ABS-Coated Baltic Birch plywood
- Dimensions (D x W x H x BackW): 14.5" x 18.6" x 28.2" x 11.1" (71.6 x 36.8 x 47.2 x 28.1cm)
- Weight: 59 lbs. (26.8 kg)
- Note: All specifications and information subject to change without notice.
