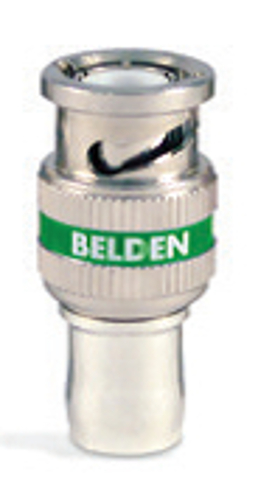

Belden 1694ABHD3 3-Piece RG6 HD-BNC connector

Belden's 1694ABHD3 is a 3-piece crimp HD-BNC connector.

Designed specifically for Belden Brilliance coaxial cables, HD Brilliance Connectors maximize broadcast signal integrity, quality, performance and durability. All Belden HD Brilliance connectors exceed SMPTE return loss standards, providing excellent headroom and true 75 Ohm performance for when broadcasters need to push the limits. Durability is excellent, with brass construction and patented compression rings ensuring pullout forces exceeding 100 lbs, depending on the cable.

Belden HD-BNC Connector Features:

• Superior return loss through 4.5GHz providing headroom to account for potential losses elsewhere in the transmission line
• Slicing center pin provides non-blind entry and assurance that the center conductor is properly seated in the connector
• Patented extended head knurl nut design for easier gripping
• Color bands allow for easier connector size identification
• Locking BNC features a screw-lock collar to physically "lock" the bayonet nut of the BNC in position, maintaining coaxial alignment from cable to connector for unparalleled RL performance
