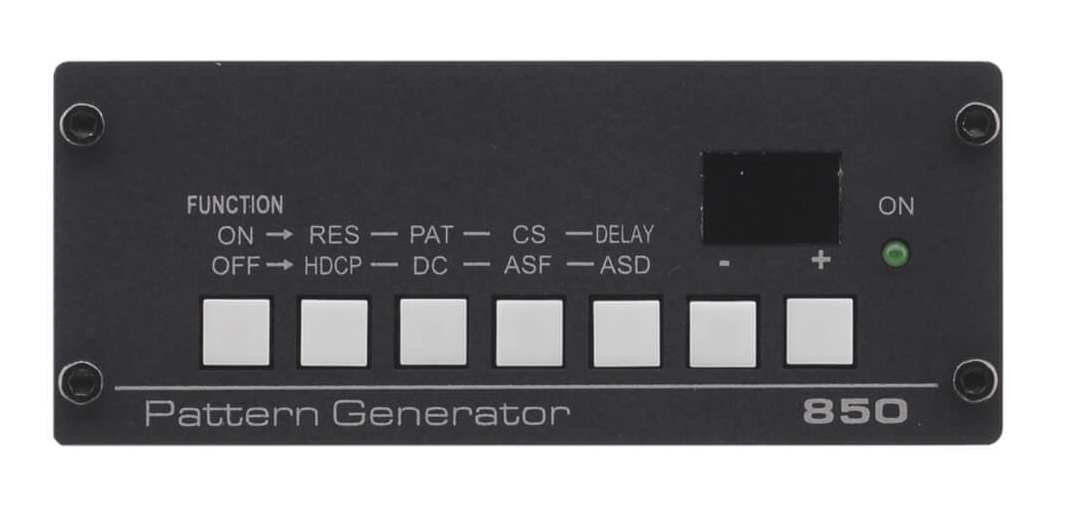

Kramer 850
DisplayPort Video Test Pattern Generator

OUR PART #:  850

This specialty AV product from Kramer is the 850 - a high performance DisplayPort video test pattern generator.
Learn More
Our Price: $576.00
List Price: $720.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Kramer 850
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This specialty AV product from Kramer is the 850 - a high performance DisplayPort video test pattern generator. It can generate 32 preset patterns at 16 popular, predefined computer and HD video resolutions and seven user-defined resolutions, including several unique patterns incorporating motion.

Kramer 850 Features:

  • Patterns: 32
  • Resolution: 12
  • Size: MultiTOOLS® - Mount 4 units side–by–side in a 1U rack space with the optional RK–1 rack adapter
  • Output Resolutions: All common PC and HDTV resolutions
  • HDTV Compatible
  • Control: USB and RS–232 ports for connecting to a controlling PC
  • Indicators: 2–digit display, power LED

Kramer 850 Specifications:

  • Output: 1 DisplayPort connector
  • Control: 5 dual–function and 2 single–function front panel buttons, remote control via USB on a USB connector and RS–232 on a 9–pinD–sub connector
  • Power Source: 5V DC, 670mA
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: –40° to 158°F (–40° to +70°C)
  • Humidity: 10% to 90%, RHL non–condensing
  • Included Accessories: Power supply
  • Options: RK–1 19" rack adapter
  • Dimension (WxDxH):
    • Product: 4.20" x 4.07" x 1.72" (10.68 x10.35 x 4.36cm)
    • Shipping: 9.13" x 5.35" x 3.94" (23.20 x13.60 x 10.00cm)
  • Weight:
    • Product: 0.7lbs (0.3kg) approx.
    • Shipping: 1.1lbs (0.5kg) approx.
