Attero Tech unHX2D Dante-Enabled HDMI Audio De-Embedder/Embedder

The unHX2D is a Dante™-enabled HDMI de-embedder/embedder from Attero Tech that's designed to bridge 2-channel PCM HDMI audio to/from a Dante audio network. Additionally, it includes 2 line-level analog inputs and outputs that can be independently bridged to/from a Dante audio network as well. It features an adjustable audio delay buffer included on the Dante output for modifying audio and video lip sync, along with flexible audio routing between system input sources and outputs, installer-adjustable EDID management, and facilitates bridging audio from either video sources or monitors to a Dante network. The HDMI output operates as a pass-thru repeater of the HDMI input video source.

Information regarding Firmware Comparability

There are 2 control interface options (and consequently model types) available for this device. Each interface type requires different firmware to be loaded into the unit. The first type is the Symetrix/AES67/Dante proprietary interface (-C model) which is typically used, already having built-in support for Attero Tech devices. The second firmware option enables a 3rd party UDP (-U model) interface and is available to anyone to use with a device capable of forming and sending a UDP message as well as receiving and parsing the response.

Applications

Conference rooms/meeting centers • Control rooms • Video teleconferencing • Convention center presentation rooms • Classrooms and instructional facilities • More

unHX2D Features/Benefits

• HDMI 2.0 compliant (HDCP 2.2) pass-through support for up to 4K/60/4:4:4 video, 2-channel PCM audio
• Highly configurable routing between system inputs and outputs allow PCM HDMI audio from both HDMI sources and monitors to be bridged over the Dante network (see the audio routing matrix description on the page below)
• Simple network control protocol for integration with 3rd party control system

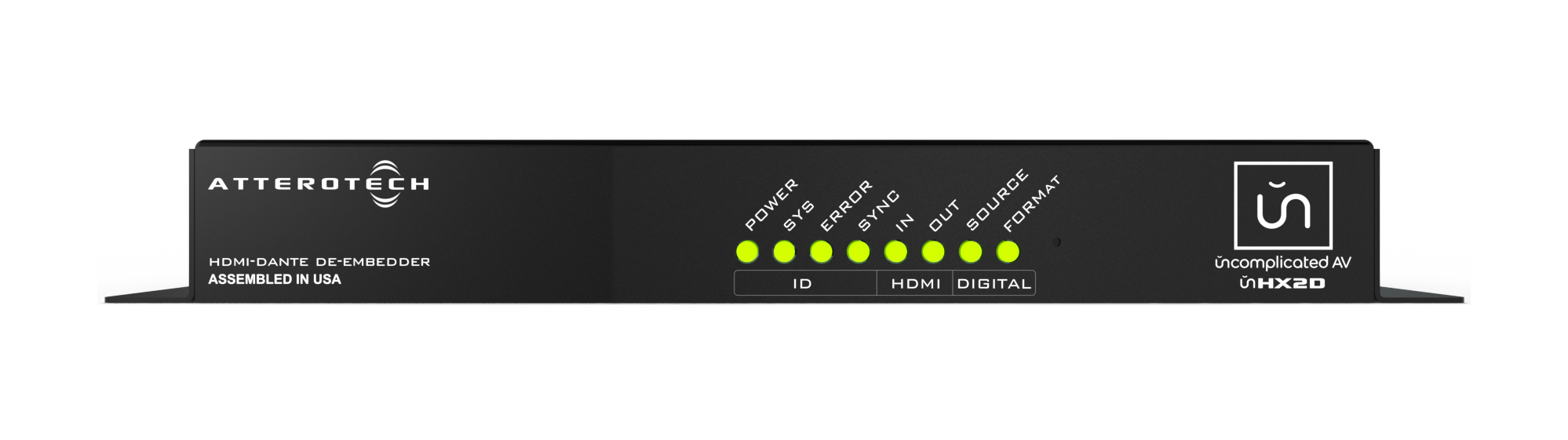

• Front panel indication of Dante status, HDMI connectivity and digital audio format
• Installer-adjustable EDID management settings via software
• 170ms of adjustable lip sync delay on the Dante TX 1-2 audio output path
• Software configuration is supported in Attero Tech unIFY Control Panel (PC/Mac)

Specifications

• Note: Specifications and more information is available by clicking on the itsm located under the "Documentation" tab above.
