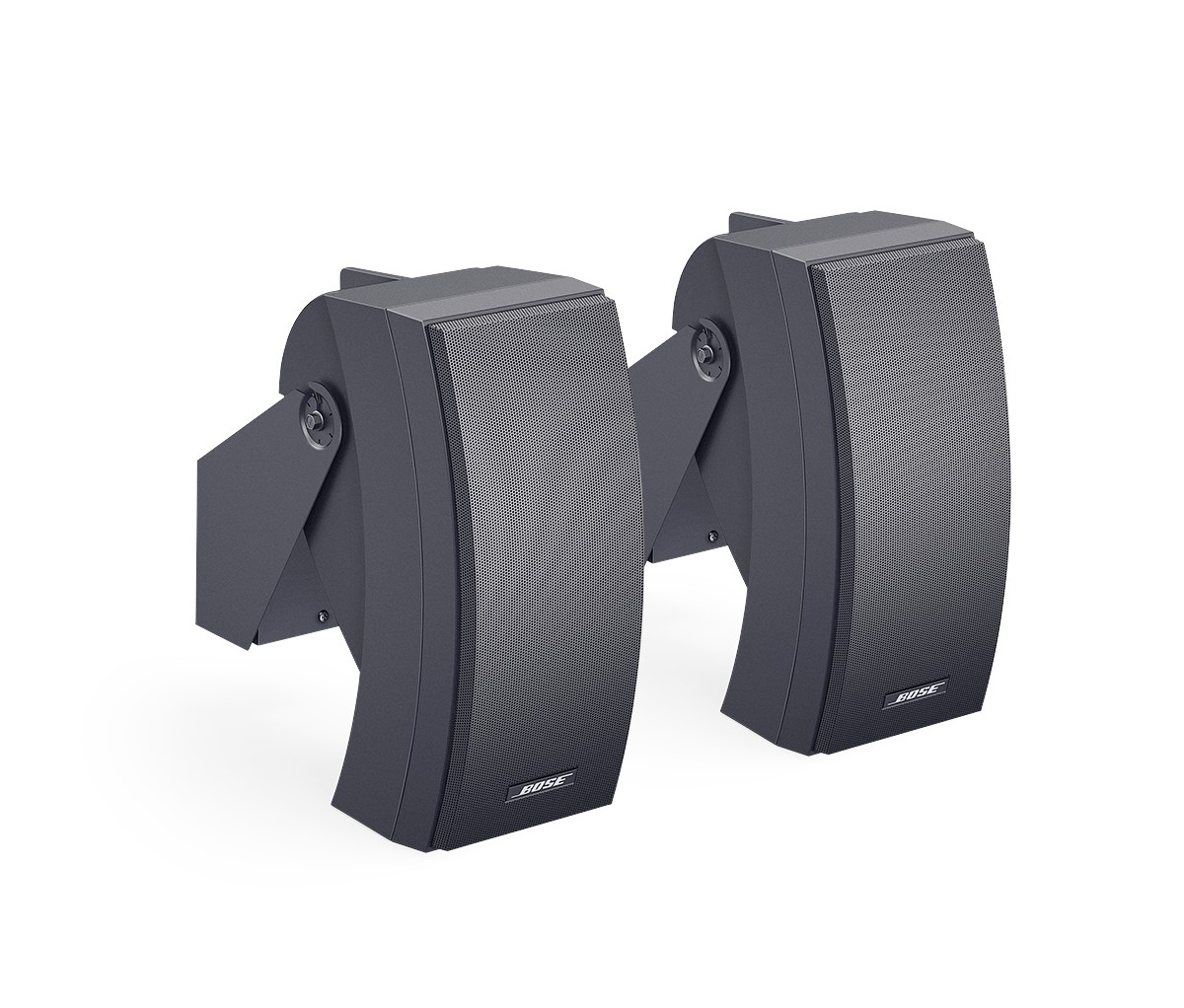

Bose 302A-BLACK [RESTOCK ITEM]
Pair of 200W Pannaray Commercial Loudspeakers in Black

OUR PART #:  302A-BLACK-RST-01

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $478.62
List Price: $908.00
You save 47%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bose 302A-BLACK [RESTOCK ITEM]
Qty:
In Stock
Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

The Panaray 302A is an elegant, versatile loudspeaker. It uses a 180° horizontal pattern to deliver full sound in small-to-medium-sized indoor and outdoor locations.

This full-range, two-way speaker uses proprietary Articulated Array speaker design to reproduce sound over a wide listening area, using fewer speakers to provide more coverage. A patented Acoustimass multi-chamber bass enclosure inside each cabinet delivers full, deep bass without audible distortion.

The Panaray 302A loudspeaker delivers frequency response of 75Hz to 16kHz, so it can be used in commercial music applications like outdoor decks, entranceways and reception areas for hotels, restaurants and transportation facilities.

All Panaray 302A loudspeakers come equipped with heavy-duty mounting brackets supplied with flanged self-locking screws that keep speakers securely in place on walls or ceilings. They are built to last through snow, rain, salt and temperature extremes of 140°F (60°C) to -22°F (-30°C).

Bose 302A Specifications:

  • Frequency Range: 75Hz to 16kHz ±3dB
  • 302A Speaker Configurations: 70V/100V (25W, 50W, 100W, 200W taps)
  • Sensitivity(*1): 82dB-SPL @ 1W, 1m (pink noise)
  • Maximum Acoustic Output(*2):
    • 102dB-SPL @ 1m (pink noise)
    • 102dB-SPL @1m (IEC(*3) noise)
  • Dispersion (–6dB point, average, 1-4kHz):
    • Horizontal 178°
    • Vertical93°
  • Long-Term Power Handling(*4):
    • 100W Continuous
    • 200W Peak
  • Impedance:
    • 70V: 25W at 200W tap setting
    • 100V: 50W at 200W tap setting
  • Mechanical Specifications:
    • Dimensions (HxWxD): 13.4" x 5.7" x 9.0" (34 x 14 x 23 cm)
    • Weight: 13 lb (3.85 kg)
      including transformer and bracket
  • Connectors: Screw terminals
  • Mounting Hardware Included: “Quick install” U-bracket with transformer andhardware
  • Bracket Angle: Ceiling pitch, 90°;Wall pitch, 30°

*1. Full bandwidth pink noise is applied to the 302A and amplified to a level at the loudspeaker terminals corresponding to 1 Watt as referenced to the nominal impedance. The average sound pressure level (dB-SPL) is measured at 1 meter from the speaker in an anechoic environment.

*2. Full bandwidth pink noise is applied to the 302A and amplified to a level at the loudspeakerterminals corresponding to the long-term rated power handling of the speaker. The average sound pressure level (dB-SPL) is measured at 1 meter from the speaker in an anechoic environment.

*3. Full bandwidth pink noise, meeting International Electrotechnical Commission (IEC) Standard #268-5, with a spectrum corresponding to average program material.

*4. Full bandwidth noise, meeting the IEC Standard #268-5 is applied to the 302A and amplified to alevel at the loudspeaker terminals corresponding to the power handling of the loudspeaker. The loudspeaker must show no visible damage or measurable loss of performance after 100 hours of continuous testing.
