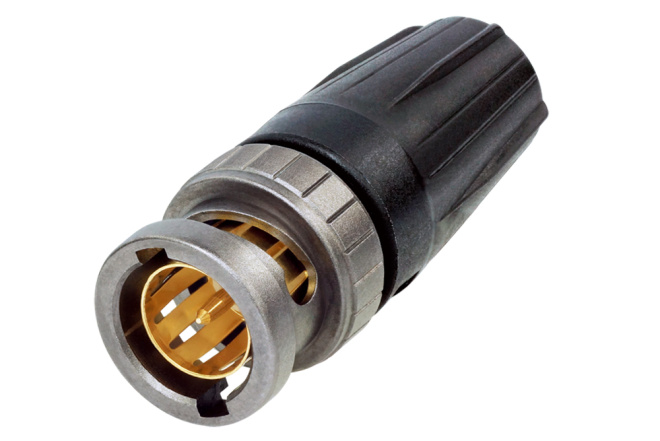

Neutrik NBNC75BUU11X
rearTWIST UHD Male BNC 75 Ohm Connector


Neutrik's rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions.
Learn More
Our Price: $2.69
List Price: $2.92
You save 8%!
Write the first review.
Neutrik NBNC75BUU11X
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Neutrik's rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.

Neutrik NBNC75BUU11X Features:

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies

Neutrik NBNC75BUU11X Specifications:

  • Electrical Specifications:
    • Contact resistance: = 3 mOhms (inner)
    • Contact resistance: = 2 mOhms (outer)
    • Dielectric strength: 1.5 kVdc
    • Impedance: 75 Ohms
    • Insulation resistance: > 5 GOhms
    • Rated voltage: < 50 V
    • VSWR:
      • =1.06 / >30 dB up to 6 GHz
      • =1.13 / >24 dB up to 12 GHz
      • =1.22 / >20 dB up to 18 Ghz
  • Mechanical Specifications:
    • Cable O.D.: 7.3 mm
    • Cable retention: > 30 N (center)
    • Crimp size: 7.36 Hex crimp (shield)
    • Crimp size (pin): 1.6 crimp
    • Insertion force: < 25 N
    • Lifetime: > 1000 mating cycles
    • Locking device: Bayonett
    • Cable anchoring: Jacket crimping
  • Material Specifications:
    • Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo
    • Shell: Brass (CuZn39Pb3)
    • Shell plating: Antraloy
    • Insert: PP
  • Environmental Specifications:
    • Temperature range: -30°C to +85°C
    • Contact crimpability: Complies with IEC 60803 and IEC 60352-2
