Product Overview
The Steadicam ZEBXHMBCZZ Zephyr HD System with vest incorporates adjustable and pivoting shoulder buckles to assure a new comfort level for extended use.
The tools-free patented Iso-Elastic™ stabilizer Zephyr Arm supports 23lbs (10.4kg) of payload weight. The no-tools Arm /Vest interface allows for quick customization to the individual operator. “On the fly” weight adjustment frees the operator from dismounting the system to make changes. The open design of the arm has freedom of movement unknown in this weight class. The Zephyr adjustable and interchangeable arm post assembly is a feature usually found on more expensive systems.
The Steadicam Zephyr comes standard with a 7” Multi standard HD/SDI LCD 1000 nit monitor that features enhanced image quality and a wide viewing angle, even under bright sunlight making it ideal for field production use. Input configurations include: Analog NTSC/PAL Composite Component/RGB with active loop through.
The Zephyr camera mounting stage was designed for enhanced mounting stability with standard HD and composite BNC video connectors, 2 x standard 3-pin LEMO power connectors and expandability ports for future accessories. The stage comes complete with a dual axis vernier adjustable mounting platform and extended camera mounting dovetail plate.

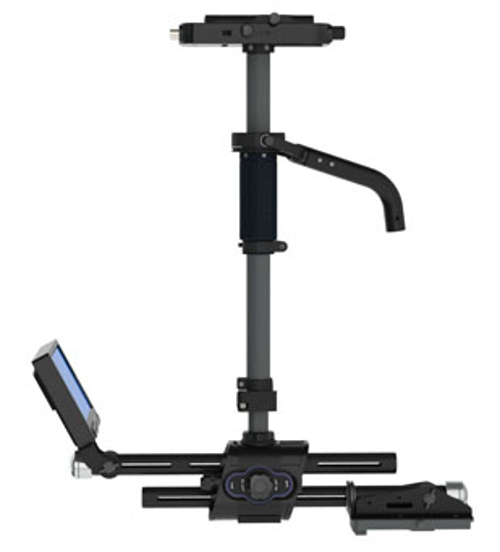

The Zephyr Sled Base features extendable rigid aluminum monitor and battery mounting rods, easily removable for compact storage or transport. A single mounting rod release allows for quick set-ups and ease of dynamic and inertial adjustments.
Steadicam ZEBXHMBCZZ Includes:
- Camera Mounting Chassis (Sled)
- New X-Y Vernier Stage
- Drop-in Dovetail Camera Mount
- 2x Lemo Power Connector on stage
- 2x BNC Connector on Stage (Composite and HD)
- 12/24V Via 1x 3-Pin Lemo
- HD Capable Via 1x BNC
- 2-Section CF Post
- AB Battery Mount (12/24V) (optional)
- V-Lock Battery Mount (12/24V) (optional)
- Dual Rod mounts for independent monitor and batterymovement
- Coiled Post Cable
- 24V Capability (via after sales battery mount)
- 1/4-20 Mounting for Base Weights
- Inertial/Balance Control via Merlin weights
- 9 to 23lbs. (4 to 10.4kg) net camera weight
- Compact Vest
- Battery Mount ( IDX V- mount, Anton Bauer )
- Docking Bracket
- 12V Power Cable
- 3 ft. light weight BNC video cable
- Dovetail Plate
- Rolling Hard Case
- BNC to RCA Adaptor
- RCA to BNC Adaptor
- 2x Mounting screws
- 2x Locating Pin
- 2x Start Weight
- 2x Middle Weight
- No-tools Gimbal Clamp
- Tango Compatible
- Warranty Card
- EFP/SK Instructional DVD
- Owner’s Manual
Steadicam ZEBXHMBCZZ Features:
- Arm:
- Frictionless, silky smooth Iso-Elastic™ Stabilizer Arm
- Huge 28? (71cm) double-section lifting range
- Tool-free, one-touch lift adjustment for each section
- New spring design with rounded arm sections
- 9 to 23lbs. (4 to 10.4kg) net camera weight
- Two-section arm with quick release
- New Post assembly permists different size post length
- Sled Stage:
- Pre-loaded light-weight aluminum dovetail frame design for camera mounting stability
- Dual axis backlash compensated vernier adjustable stage
- Positive action camera plate clamp
- Drop in camera plate with safety stops and coarse fore-aft position adjustability
- Standard HD and composite BNC video connectors
- 2 x standard 3-pin LEMO power connectors
- 2 x standard connector expandability ports for future options or accessories
- Universal mounting design for future options and accessories
- Standard extended camera mounting dovetail plate
- Sled Base:
- Extendable rigid aluminum monitor and battery mounting rods easily removable for compact storage or transport
- Single knob rod release for quick set-up’s
- Independently adjustable battery and monitor mounts for dynamic balance adjustability
- Tilting and rotationally indexed monitor mount
- Inertial control and adjustability via standard Steadicam Merlin type balance weights
- Balance control via standard ¼-20 mounting hole at the base of the sled and additional balance weights
- Standard dovetail base for mounting of future options or accessories
- Standard HD BNC video connector and interchangeable monitor harness
- Standard 3-pin LEMO power connector for additional power output or input via optional 2nd battery mount
- Optional 2nd battery mount for parallel 12V capability or 24V capability
- Anton Bauer or V-lock battery compatible
- Telescopic, index carbon fiber main post with internal safety line
- No tools post clamp
- 7” HD/Composite LCD as standard
- Gimbal
- No tools adjustable knurled gimbal handle with ergonomic handle
- Standard Steadicam TANGO compatibility
- Vest:
- New ergonomic lightweight design
- New removable vest and pad covers
- Proprietary arm/vest connector
- Stiff front spar
- Vertical adjustment of socket block for extended lens height, especially useful in low-mode
- Socket block mounts left or right
- Two basic vest sizes to fit any operator
