Product Overview

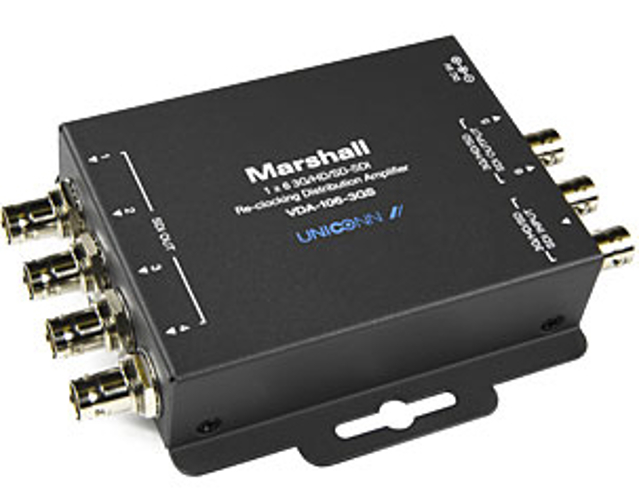

The Marshall Electronics VDA-106-3GS is a compact and reliable distribution amplifier which accepts a single SDI input and provides 6 identical outputs. All embedded data is passed transparently. Signals are reclocked and cable equalization is provided to support long cable runs. The unit is useful for providing video to multiple destinations (recorders, displays, encoders) from a single video source.
Includes
- 1x VDA-106-3GS
- 1x 5V power adapter
- 1x User Manual
Features
- 3G/HD/SD serial digital distribution
- (6) separately buffered and reclocked outputs
- Cable equalization and signal retiming
- Dual-color LED indication of input lock and rate
- Passes all ancillary data
- Provides automatic input cable equalization up to 1000ft (300m) @SD, 500ft (150m) @HD/3G
Specifications
- SDI standards: 3G/HD/ SD -SDI
- Auto 3G/HD/SD detection: Yes
- Supported protocols: DVB-ASI at 270Mbps, SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE425M
- Video bandwidth: [2.97Gpbs and 2.97/1.001Gbps]
- Data rates: 270 / 1483 / 1485 / 2970 Mbps
- Output impedance: 75 Ω
- Reclocking function: Yes
- Cable equalization:
- [3G] up to 300ft (90m) / [HD] up to 500ft (150m)
- [SD] up to 1000ft (300m)
- Audio support: Yes
- Input: 1x BNC [SDI]
- Output: 6x BNC [SDI]
- RP-198 pathological patterns: Immune
- Eye pattern characteristics [HD]:
- Amplitude: Within 800 mV (< 10%)
- Rise overshoot: Less than 2% (< 10%)
- Fall overshoot: Less than 2% (< 10%)
- Long time jitter: 0.195 UI (< 1.0 UI)
- Timing jitter: 0.8 UI (< 1.0 UI)
- Alignment jitter: 0.13 UI (< 0.2 UI)
- Housing: Metal enclosure
- Dimensions (L x W x H):
- Product: 4.1" x 3" x 1" (105 x 78 x 27mm)
- Package: 10.6“ x 6.9" x 3.2" (270 x 175 x 80mm)
- Carton: 17.7" x 14.6" x 11.8" (450 x 370x 300mm)
- Weight:
- Product: 10.9 oz. (310 g)
- Package: 1.7 lbs. (785 g)
- Power supply: 5 VDC 4 A with locking connector
- Power consumption: 5 Watts [max]
- Operation temperature: 32 ~ 104 °F (0 ~ 40 °C)
- Storage temperature: -4 ~ 140 °F (-20 ~ 60°C)
- Relative humidity: 20 ~ 90% RH (no condensation)
