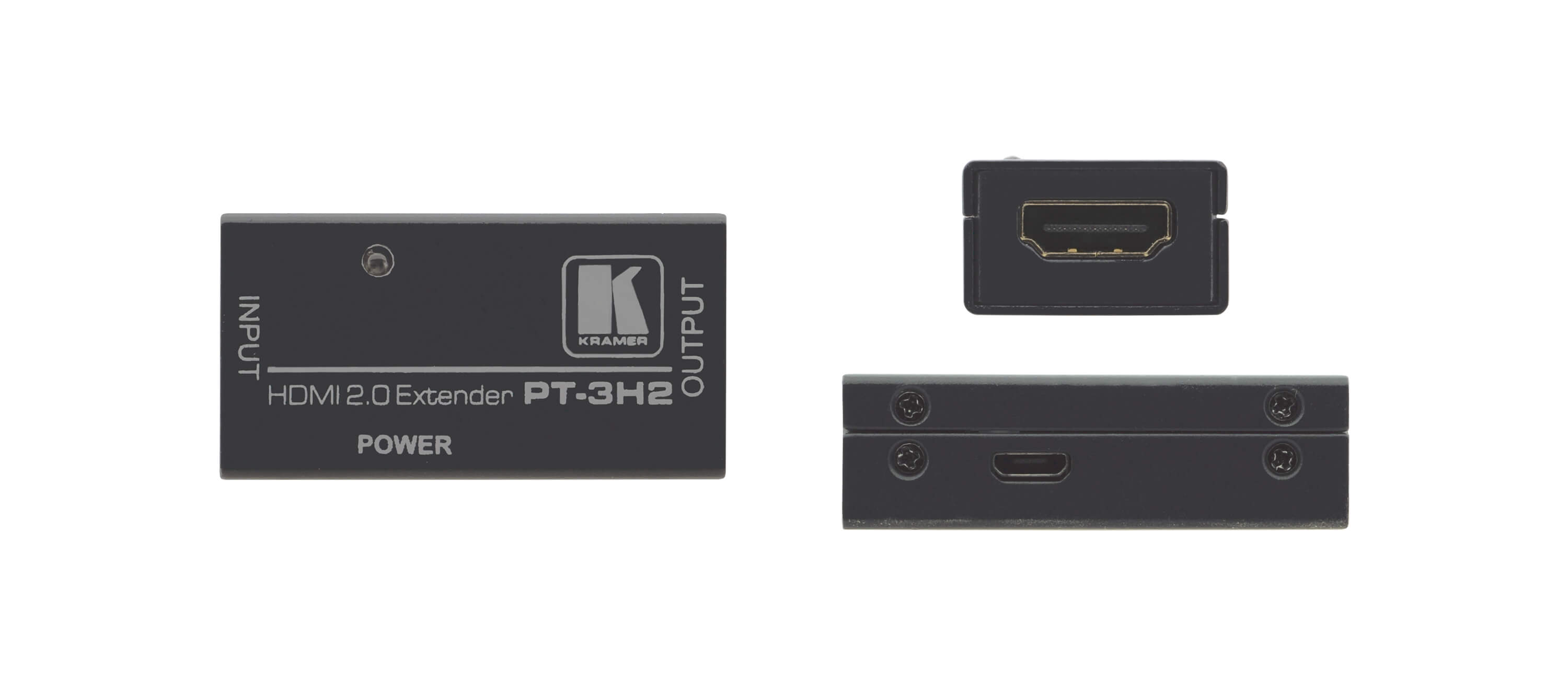

Kramer PT-3H2
4K UHD HDMI 2.0 Extender

OUR PART #:  PT-3H2

The Kramer PT-3H2 is a 4K@60Hz (4:4:4) equalizer and line driver for HDMI 2.0 and HDCP 2.2 signals. The unit extends the range when using long HDMI cables.
Learn More
Our Price: $76.00
List Price: $95.00
You save 20%!
Write the first review.
Kramer PT-3H2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer PT-3H2 is a 4K@60Hz (4:4:4) equalizer and line driver for HDMI 2.0 and HDCP 2.2 signals. The unit extends the range when using long HDMI cables.

Kramer PT-3H2 Features:

  • Max. Resolution: 4K@60Hz (4:4:4)
  • HDTV Compatible
  • HDCP 2.2 & HDMI 2.0 Compliant
  • HDMI Support: ARC, CEC
  • Range:
    • 10m to input, 10m from output, total 20m (65ft) at 4K60 (4:4:4)
    • 25m to input, 15m from output, total 40m (130ft) at 4K60 (4:2:0)
    • 30m to input, 15m from output, total 45m (150ft) at 1080p60
  • External Power Supply Option

Kramer PT-3H2 Specifications:

  • Input/Output: HDMI connectors
  • Max. Data Rate: 18Gbps (6Gbps per graphic channel)
  • Max. Rresolution: Up to 4K@60Hz (4:4:4)
  • Max. Range:
    • 4K@60 4:4:4: 20m (115ft); 10m to PT–3H2, 10m to display
    • 4K@60 4:2:0 / 4K@30: 40m (130ft); 25m to PT–3H2, 15m to display
    • 1080p@60: 45m (150ft): 30m to PT–3H2, 15m to display
  • Standards Compliance: HDMI2.0, HDCP2.2
  • HDMI Support: ARC, CEC
  • Power Consumption: 5V DC, 150mA
  • Temperature:
    • Operating: 32°F to 158°F (0°C to +70°C)
    • Storage: 14°F to 176°F (–10°C to +80°C)
  • Humidity:
    • Operating: 10% to 85% RH (no condensation)
    • Storage: 5% to 90% RH (no condensation)
  • External Power Source (OPTIONAL): 5V, 150mA on micro–USB connector
  • Dimensions (WxDxH):
    • Product: 5.75" x 0.79" x 3.74" (14.60 x 2.00 x 9.50cm)
    • Shipping: 9.69" x 3.39" x 7.91" (24.60 x 8.60 x 20.10cm)
  • Weight:
    • Product: 1.1lbs (0.5kg) approx
    • Shipping: 2.4lbs (1.1kg) approx
