Cartoni P70+ Master 40 System
P70+ Pedestal with Master 40 Head, Dovetail Plate, (2) Pan Bars, Flat Base Adapter and Pump


The Cartoni P70+ is a portable and compact system for both Studio and OB applications.
Learn More

Call for price! Not available online.
List Price: $24,250.00

Related Products

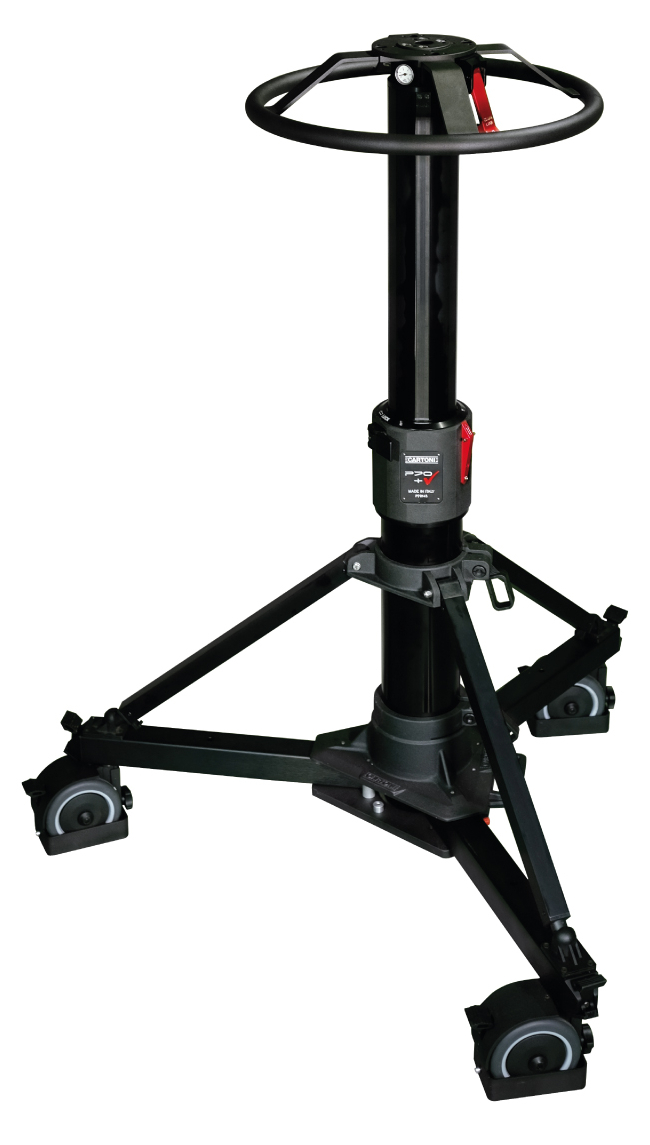

The Cartoni P70+ is a portable and compact system for both Studio and OB applications. Extremely stable yet lightweight, its ideal performance is reached with camera/lens combination of around 121 lbs (55 kg).

The air filled, one shot column is fast and safe to operate: the air can be set in manually or by compressor, and a safety air pressure valve prevents danger of over pumping. The innovative column design provides outstanding stability and jerk-free control with exceptional smoothness and precise movements. Accurate camera balance is achieved at full extension by simply activating the bleed valve, releasing excess air pressure. The column supports a maximum payload of 154 lbs (70 kg) at 125 psi.

On the foldable dolly, the six-position track lock, cable guards, and foot operated brake on each of the 125 mm twin wheels provide smooth movements in any desired direction. The column is firmly secured to the dolly by a double clamp, easily engaged by two ergonomic locking levers. A set of 200 mm pneumatic tires with wheel brakes are available for OB use.

The Master 40 is the ideal support for broadcast camera configurations up to 88 lbs (40 kg). It features an amazingly smooth patented counterbalance system and the superb thin plates fluid drag.

The Master 40 controls, knobs, and levers are ergonomically placed to ensure camera operators complete ease-of-use in any situation, whether in the studio, location or during outside broadcasts, while drag and counterbalance systems are monitored on a digital display.

Cartoni P70+ Master 40 System Specifications:

  • Part Number: P7MA4
  • Maximum Pressure: 9.0 atm; 132.3 psi
  • On-Shot Stroke: 50.00
  • Doorway Tracking Width Minimum: 26.4" (67.00 cm)
  • Doorway Tracking Width Maximum: 39.4" (100.00 cm)
  • Capacity: 154.3 lbs (70.00 kg)
  • Wheel Diameter: 4.9" (12.50 cm)
  • Minimum Height: 29.5" (75.00 cm)
  • Maximum Height: 55.1" (140.00 cm)
  • Pedestal Weight: 61.7 lbs (28 kg)
  • Head Weight: 33.1 lbs (15 kg)
  • Minimum Payload Capacity: 0 lbs (0 kg)
  • Maximum Payload Capacity: 88 lbs (40 kg)
  • Bowl Diameter: Flat
  • Fluid Drag: Continuous
  • Counterbalance: Continuous
  • Pan Range: 360┬░
  • Tilt Range: +/- 90┬░
