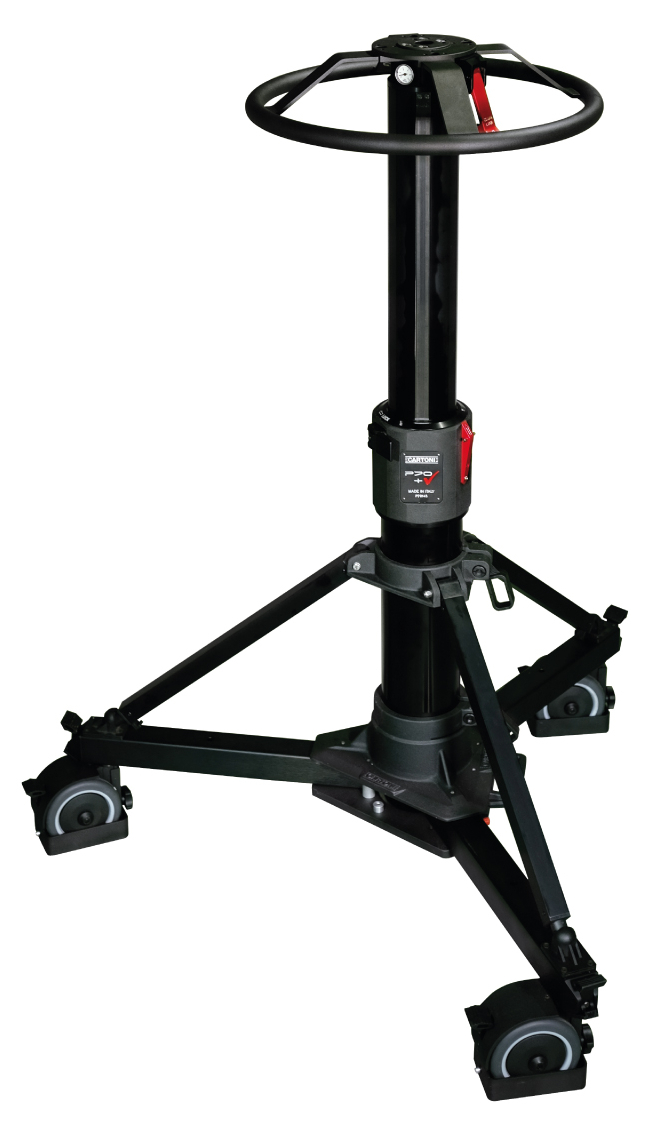

Cartoni P70+ Master System
P70+ Pedestal with Master Mk2 Head, (2) Pan Bars, Flat Base Adapter and Pump

OUR PART #:  P7MA1

The Cartoni P70+ is a portable and compact system for both Studio and OB applications.
Learn More

Call for price! Not available online.
List Price: $20,835.00

Similar Products

The Cartoni P70+ is a portable and compact system for both Studio and OB applications. Extremely stable yet lightweight, its ideal performance is reached with camera/lens combination of around 121 lbs (55 kg).

The air filled, one shot column is fast and safe to operate: the air can be set in manually or by compressor, and a safety air pressure valve prevents danger of over pumping. The innovative column design provides outstanding stability and jerk-free control with exceptional smoothness and precise movements. Accurate camera balance is achieved at full extension by simply activating the bleed valve, releasing excess air pressure. The column supports a maximum payload of 154 lbs (70 kg) at 125 psi.

On the foldable dolly, the six-position track lock, cable guards, and foot operated brake on each of the 125 mm twin wheels provide smooth movements in any desired direction. The column is firmly secured to the dolly by a double clamp, easily engaged by two ergonomic locking levers. A set of 200 mm pneumatic tires with wheel brakes are available for OB use.

The Master Mk2 is the ultimate Cartoni Fluid Head, designed specifically for HD applications, film, and ENG & EFP camera systems.

The Mk2 counterbalances very light cameras from 6.6 lbs (3 kg) all the way to 77 lbs (35 kg) making the Mk2 suitable for the smallest HDV camera to a fully loaded RED, Alexa, F65, C300 (etc) camera with all of the trimmings.

Cartoni P70+ Master System Specifications:

  • Part Number: P7MA1
  • Maximum Pressure: 9.0 atm; 132.3 psi
  • On-Shot Stroke: 50.00
  • Doorway Tracking Width Minimum: 26.4" (67.00 cm)
  • Doorway Tracking Width Maximum: 39.4" (100.00 cm)
  • Capacity: 154.3 lbs (70.00 kg)
  • Wheel Diameter: 4.9" (12.50 cm)
  • Minimum Height: 29.5" (75.00 cm)
  • Maximum Height: 55.1" (140.00 cm)
  • Pedestal Weight: 61.7 lbs (28 kg)
  • Head Weight: 18.7 lbs (8.5 kg)
  • Minimum Payload Capacity: 6.6 lbs (3 kg)
  • Maximum Payload Capacity: 77 lbs (35 kg)
  • Bowl Diameter: Flat
  • Fluid Drag: Continuous
  • Counterbalance: Continuous
  • Pan Range: 360┬░
  • Tilt Range: +/- 90┬░
