Cartoni P70+ C20 System
P70+ Pedestal with C20S Head, (2) Pan Bars, 100mm Adapter and Pump

OUR PART #:  P7C01

The Cartoni P70+ is a portable and compact system for both Studio and OB applications.
Learn More

Call for price! Not available online.
List Price: $18,630.00

Related Products

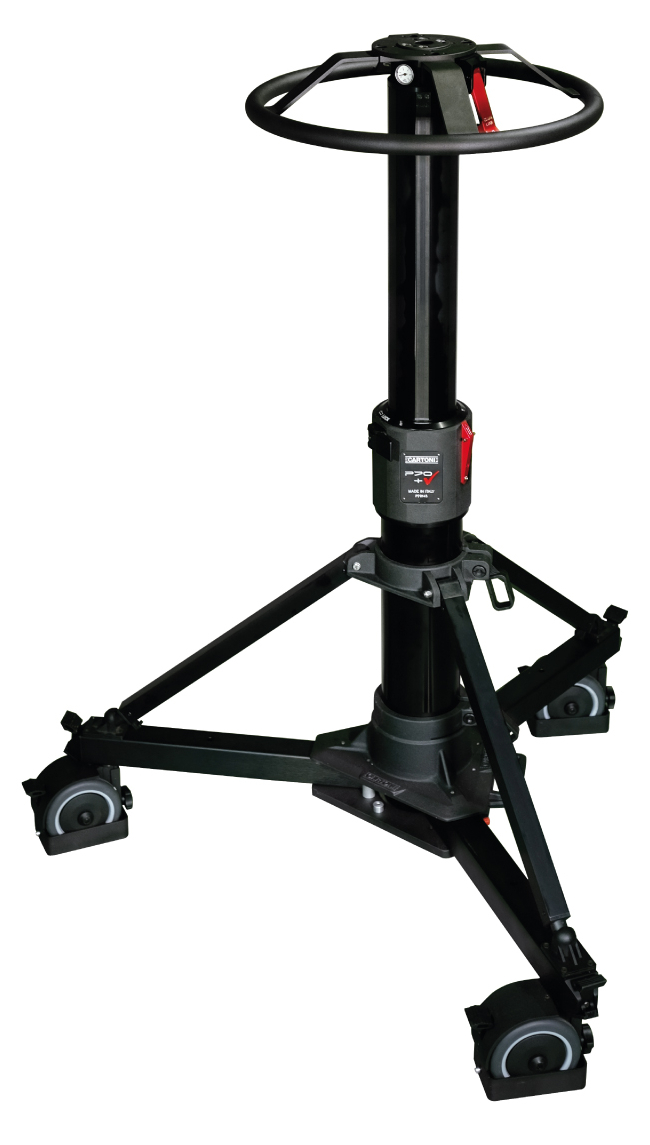

The Cartoni P70+ is a portable and compact system for both Studio and OB applications. Extremely stable yet lightweight, its ideal performance is reached with camera/lens combination of around 121 lbs (55 kg).

The air filled, one shot column is fast and safe to operate: the air can be set in manually or by compressor, and a safety air pressure valve prevents danger of over pumping. The innovative column design provides outstanding stability and jerk-free control with exceptional smoothness and precise movements. Accurate camera balance is achieved at full extension by simply activating the bleed valve, releasing excess air pressure. The column supports a maximum payload of 154 lbs (70 kg) at 125 psi.

On the foldable dolly, the six-position track lock, cable guards, and foot operated brake on each of the 125 mm twin wheels provide smooth movements in any desired direction. The column is firmly secured to the dolly by a double clamp, easily engaged by two ergonomic locking levers. A set of 200 mm pneumatic tires with wheel brakes are available for OB use.

Designed to provide an extremely stable support for standard EFP configurations, the C20S fluid head is ready to operate with a wide range of cameras weighing from 15 to 71 lbs (7 to 32 kg). C20S features three award winning fluid damping modules assuring outstanding drag levels and extraordinary smoothness in both pan and tilt modes.

Cartoni P70+ C20 System Specifications:

  • Part Number: P7C01
  • Maximum Pressure: 9.0 atm; 132.3 psi
  • On-Shot Stroke: 50.00
  • Doorway Tracking Width Minimum: 26.4" (67.00 cm)
  • Doorway Tracking Width Maximum: 39.4" (100.00 cm)
  • Capacity: 154.3 lbs (70.00 kg)
  • Wheel Diameter: 4.9" (12.50 cm)
  • Minimum Height: 29.5" (75.00 cm)
  • Maximum Height: 55.1" (140.00 cm)
  • Pedestal Weight: 61.7 lbs (28 kg)
  • Head Weight: 14.3 lbs (6.5 kg)
  • Minimum Payload Capacity: 15 lbs (7 kg)
  • Maximum Payload Capacity: 71 lbs (32 kg)
  • Bowl Diameter: 100 mm
  • Fluid Drag: 7 steps + 0
  • Counterbalance: 7 steps + 0
  • Pan Range: 360┬░
  • Tilt Range: +/- 65┬░
