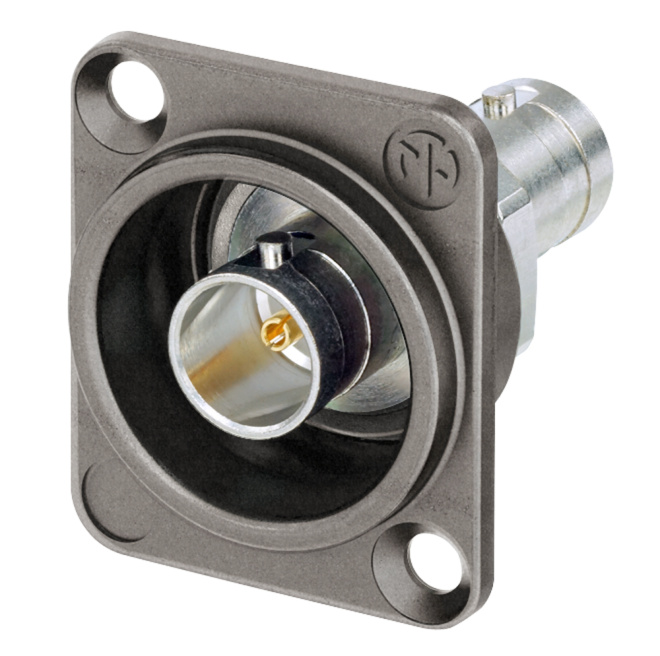

Neutrik NBB75DFGX
Grounded UHD BNC Panel Connector, Feedthrough in Antraloy Plated D-Shape Housing

OUR PART #:  NBB75DFGX

Neutrik's UHD BNC chassis connectors are specifically designed for high resolution video signal transmissions.
Learn More
Our Price: $8.21
List Price: $9.20
Save up to 20% when you order by quantity!
  • Buy 25: $7.94 each.
  • Buy 50: $7.67 each.
  • Buy 100: $7.39 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NBB75DFGX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

Neutrik's UHD BNC chassis connectors are specifically designed for high resolution video signal transmissions. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefor well protected in a D-shape housing.

Due to optimized insulator design the Neutrik UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.

Neutrik NBB75DFGX Features:

  • Optimized gold plated cage type center contact for UHD signals at 4K or 8K
  • Grounded panel mount
  • Standard D-shape housing provides flush mounting and protection from damage
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies

Neutrik NBB75DFGX Specifications:

  • Electrical Specifications:
    • Contact resistance: = 3 mOhms (inner)
    • Contact resistance: = 2 mOhms (outer)
    • Dielectric strength: 1.5 kVdc
    • Impedance: 75 Ohms
    • Insulation resistance: > 5 GOhms
    • Rated voltage: < 50 V
    • VSWR:
      • =1.06 / >30 dB up to 6 GHz
      • =1.13 / >24 dB up to 12 GHz
      • =1.22 / >20 dB up to 18 GHz
  • Mechanical Specifications:
    • Mounting direction: Front mounting
    • Insertion force: < 25 N
    • Lifetime: > 1000 mating cycles
    • Locking device: Bayonett
    • Chassis shape: D
  • Material Specifications:
    • Contacts: Brass (CuZn35Pb3), 0.2 µm AuCo
    • Shell: Polyacetal (POM)
    • Shell plating: Antraloy
    • Insert: PTFE
    • D-shape housing: Zinc diecast (ZnAI4Cu1)
  • Environmental Specifications:
    • Temperature range: -30°C to +85°C
