Neutrik NBNC75BTU11X UHD Male BNC Cable Connector with Rear Twist

OUR PART #: NBNC75BTU11X MFR #: NBNC75BTU11X

Copied to clipboard

Neutrik's rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. ...Read more

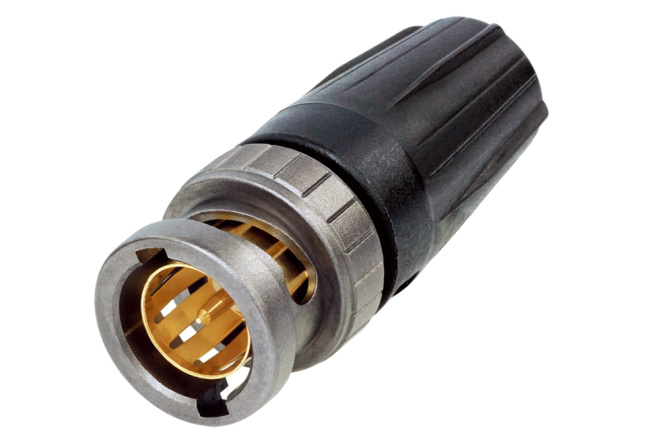

Neutrik NBNC75BTU11X UHD Male BNC Cable Connector With Rear Twist Image 1
Neutrik NBNC75BTU11X UHD Male BNC Cable Connector With Rear Twist
Our Price: $3.64
List Price: $4.25
You save 14%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Neutrik's rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.

Neutrik NBNC75BTU11X Features:

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies

Neutrik NBNC75BTU11X Specifications:

  • Electrical Specifications:
    • Contact resistance: = 3 mOhms (inner)
    • Contact resistance: = 2 mOhms (outer)
    • Dielectric strength: 1.5 kVdc
    • Impedance: 75 Ohms
    • Insulation resistance: > 5 GOhms
    • VSWR:
      • =1.06 / >30 dB up to 6 GHz
      • =1.13 / >24 dB up to 12 GHz
      • =1.22 / >20 dB up to 18 GHz
    • Rated voltage: < 50 V
  • Mechanical Specifications:
    • Cable O.D.: 7.3 mm
    • Cable retention: > 30 N (center)
    • Crimp size: 7.36 Hex crimp (shield)
    • Crimp size (pin): 1.07 crimp
    • Insertion force: < 25 N
    • Lifetime: > 1000 mating cycles
    • Locking device: Bayonett
    • Cable anchoring: Jacket crimping
  • Material Specifications:
    • Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo
    • Shell: Brass (CuZn39Pb3)
    • Shell plating: Antraloy
    • Insert: PP
  • Environmental Specifications:
    • Temperature range: -30°C to +85°C
    • Contact crimpability: Complies with IEC 60803 and IEC 60352-2

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
