Lex Products Corp DB20T1-SBPC

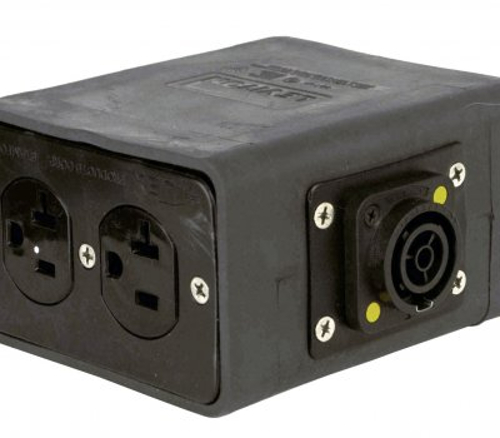

20 Amp Quad Box with powerCON TRUE1 Input to Edisons, Feed Thru

OUR PART #:  DB20T1-SBPC

This exceptionally versatile box is used for placing convenient duplex receptacles exactly where they are needed.
Learn More
Our Price: $174.09
List Price: $212.55
You save 18%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lex Products Corp DB20T1-SBPC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This exceptionally versatile box is used for placing convenient duplex receptacles exactly where they are needed. The box enables the user to create receptacle stringers using extensions of various lengths.

Lex Products DB20T1-SBPC Features:

  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, corrosion
  • Compact and convenient way to place 20 Amp duplex receptacles where they are needed
  • Feed thru option allows multiple boxes to be placed along the same feed

Lex Products DB20T1-SBPC Specifications:

  • Rating: 20 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire, 120 VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, powerCON inlet
  • Output: (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
  • Feed Thru: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, powerCON outlet
  • Dimensions (LxWxH): 4.7" x 2.5" x 4.2" (119 x 64 x 17 mm)
  • Approximate Weight: 1.5 lbs (0.7 kg)
