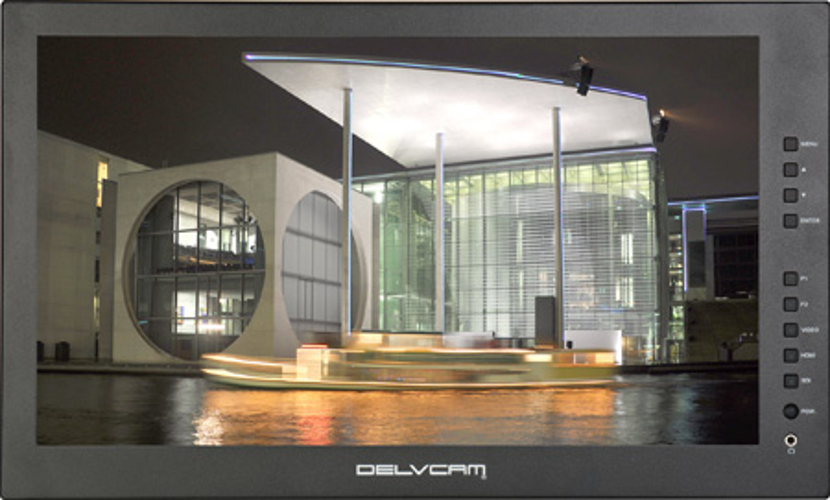

Delvcam DELV-3GHD-17IRM
17.3" Rackmount 3G-SDI LCD Monitor with V-Mount Plate

OUR PART #:  DELV-3GHD-17IRM

The Delvcam DELV-3GHD-17IRM is the ultimate 17" LCD monitoring choice for TV engineers, directors and technical directors.
Learn More
Our Price: $910.24
List Price: $999.95
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Delvcam DELV-3GHD-17IRM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Delvcam DELV-3GHD-17IRM is the ultimate 17" LCD monitoring choice for TV engineers, directors and technical directors. Its full suite of features, including multi-format inputs, built-in 3G/HDMI cross conversion, included rackmount ears and tally, are perfect for live event production. Rich image clarity comes standard with its 1920 x 1080 screen resolution and 700:1 contrast ratio.

The DELV-3GHD-17IRM has HDMI and 3G-SDI inputs with on-board SDI and HDMI cross conversion. Couple cross conversion with its road tough metal housing and rear V-Mount battery plate and you have a perfect solution for on location monitoring.

With Delvcam's slim profile housing, front & rear pull-handles, 4-Pin XLR powering, looping inputs and tally input, this LCD will be at home in the rack bay of a studio or the monitor wall in your OB truck. It also has a rear VESA pattern for wall or monitor arm mounting making it a great option for digital signage.

Delvcam DELV-3GHD-17IRM Includes:

  • Frame Bracket
  • 15VDC Power Adapter
  • Battery Plate Bracket
  • V-Mount
  • Talley Connector

Delvcam DELV-3GHD-17IRM Features:

  • 3G-SDI 17.3-inch LCD screen, LED Backlight
  • Slim design with grip handles and integrated mounting bracket
  • Two User Definable Buttons
  • Durable Black Powder-Coated Steel Housing
  • Multiple signal inputs and outputs
  • Stereo earphone jack
  • Built-in Speaker
  • Built-in Talley Interface
  • USB for software upgrade
  • HDMI/SDI Cross Conversion

Delvcam DELV-3GHD-17IRM Specifications:

  • Display Screen: 17.3" TFT LCD screen
  • Resolution: 1920 x 1080
  • Brightness: 300cd/m²
  • Contrast: 700:1
  • Aspect Ratio: 16:9
  • Viewing Angle: 178°/178°
  • Input: HDMI, SDI, Video, Audio
  • Output: HDMI, SDI, Video
  • Color Format: NTSC/PAL
  • Input Voltage: 12VDC (XLR)
  • Power Consumption: 15W
  • Backlight: LED
  • VESA 75 x 75/100 x 100 Mount
  • Speaker: Mono, Right Channel
  • Dimensions (LxHxD): 17.48" x 10.39" x 1.28" (444 x 264 x 32.5 mm)
  • Weight: 7.5 lb. (3.4 kg)
