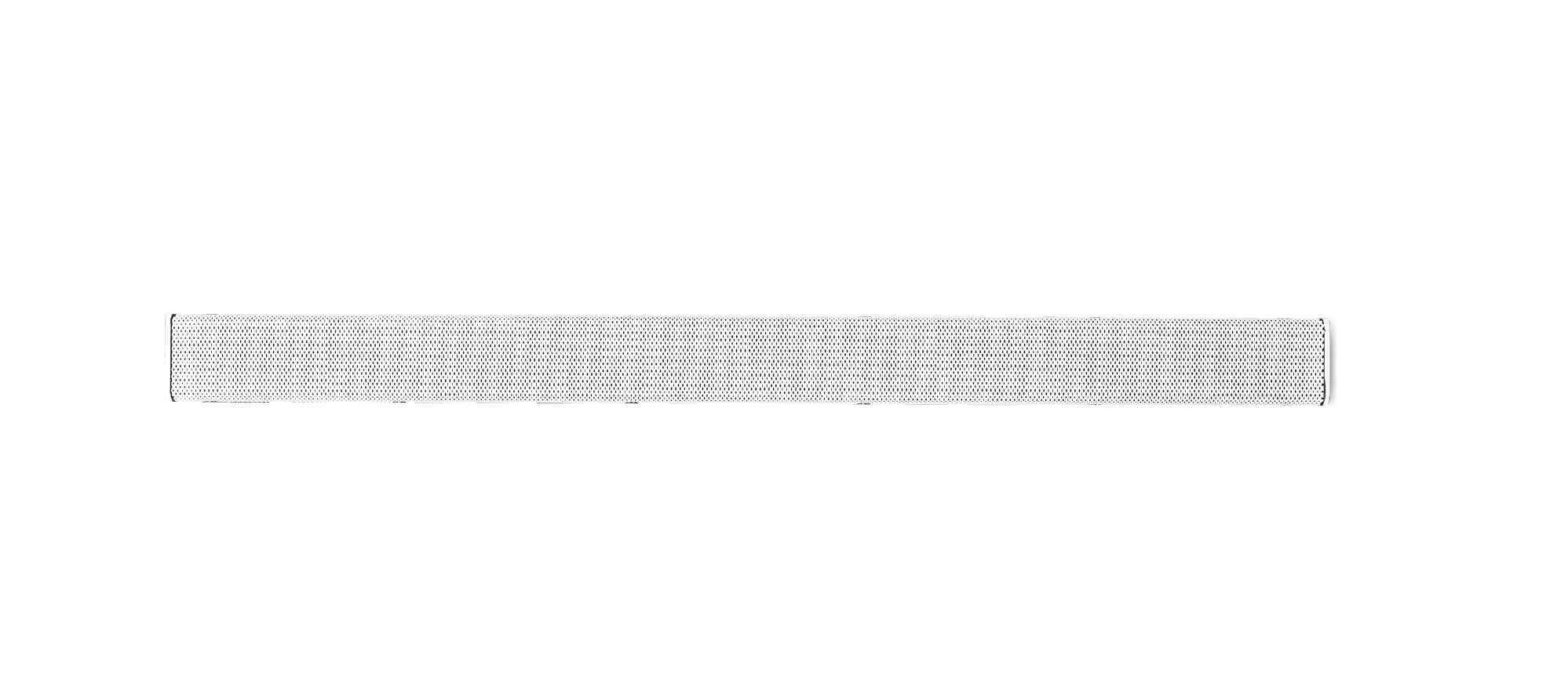

K-Array Vyper-KV52W
Line Array Element Ultra-Flat with 1" Cone in White

OUR PART #:  KV52W

An ultra-flat passive speaker system comprised of eight 1" neodymium magnet transducers...
Learn More
Our Price: $1,075.08
List Price: $1,156.00
You save 7%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

K-Array Vyper-KV52W
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

An ultra-flat passive speaker system comprised of eight 1" neodymium magnet transducers, the K-Array Vyper-KV52W (white version) is housed in an elegant-yet-sturdy aluminum chassis. Its 8 closely-spaced cone drivers deliver true line array characteristics: phase coherence, low distortion, and focused listening in both the near field and at a distance from the speaker. A steel bracket accessory provides an option to mount wall application for permanent installations. For easier use and integration with other speakers or amplifiers, the Vyper allows the user to select two different values of impedance (16 Ohm – 64 Ohm). At 64 Ohm as many as 16 Vypers can be powered off a single amplifier channel at 4 Ohm, which eliminates the need of 70 V amplifiers for wider distributed installed systems. The Vyper is able to reproduce the whole vocal frequency range with high intelligibility, starting from 150 Hz. Integrating one of the K-array subwoofers KU family, powered by a KA amplifiers set with specific presets optimized for the Vyper assures excellent coverage of the entire musical frequency range. All Vyper components are designed by the K-array R&D department and are custom made under the K-array quality control system.

K-Array Vyper-KV52W Features:

  • Unique performance-to-size ratio
  • Multiple 1" long-excursion full-range cone drivers
  • Wide horizontal coverage
  • Selectable 16 Ohm or 64 Ohm impedance
  • Weather proof, suitable for outdoor installations- IP54

K-Array Vyper-KV52W Specifications:

  • Acoustics:
    • Power handling: 150 W (AES)
    • Impedance: 16 Ohm / 64 Ohm (selectable)
    • Frequency range
      • 150 Hz – 20 KHz (- 10dB) (1)
      • 200 Hz – 18 kHz (- 3dB) (1)
    • SPL: 1W/1mt 86 dB (2)
    • Maximum SPL: 108 dB continuous - 114 dB peak
  • Coverage:
    • Horizontal: 110°
    • Vertical: 10°
  • Crossover:
    • Type: External Crossover required
    • Frequency: 150 Hz, 24 dB/oct suggested minimum
  • Transducers:
    • Full-range 8 x 1" Neodymium magnet with 0.75" voice coil
  • Selection Switch:
    • Impedance: 16 Ohm – 64 Ohm
  • Power Audio Input:
    • Connector: 2 x 2-pin Phoenix
  • Physical:
    • Color: White
    • Dimensions: 1.55" x 19.68" x 0.84" (3.9 x 50.0 x 2.1cm)
    • Weight: 1.32 lbs (0.6 kg)
