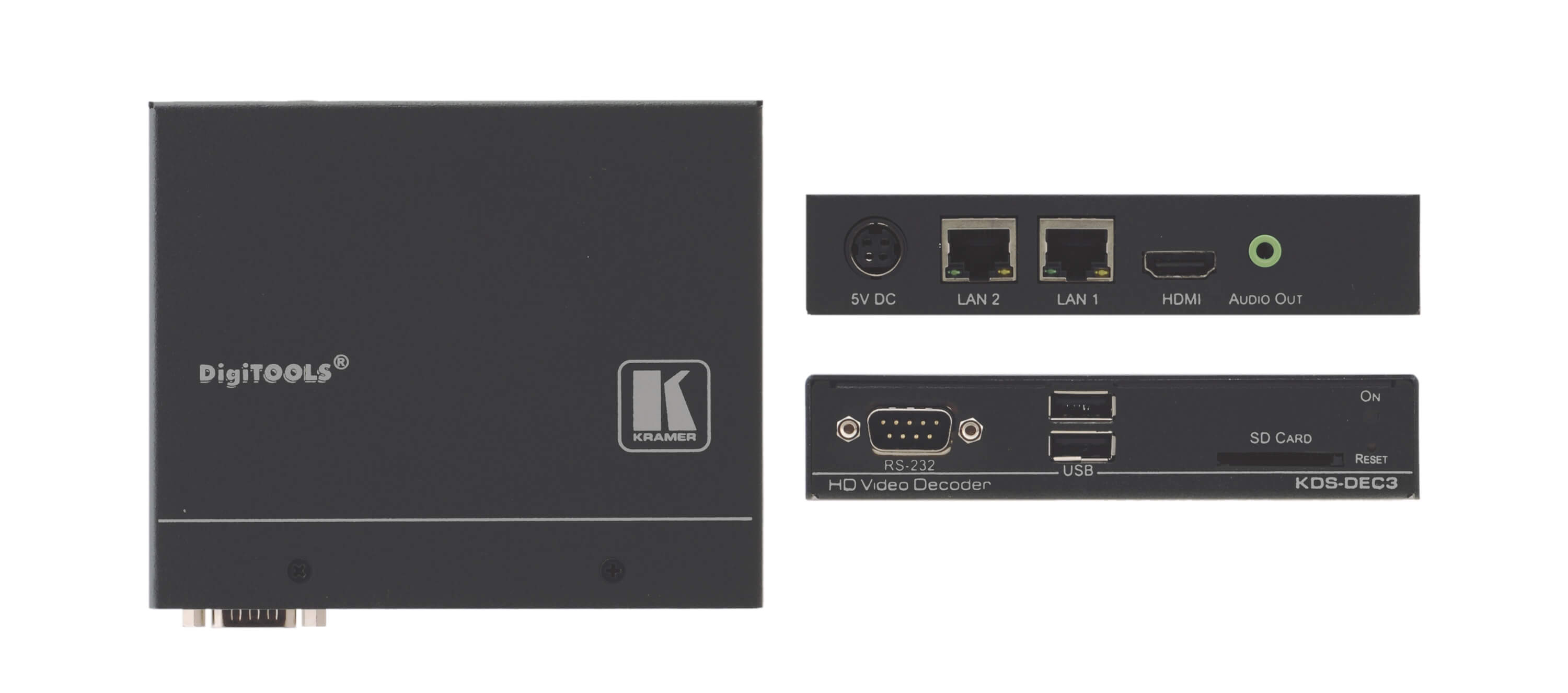

Kramer KDS-DEC3 H.264 Based Decoder-Encoded Streams Produced by KDS-EN3 Encoder

The Kramer KDS-DEC3 is an H.264 decoder for encoded signals up to 1080p60. It is designed to work with the KDS-EN3 H.264 encoder to provide a high-quality and fully-featured end-to-end video and audio over IP solution.

Includes

• Power supply
• Power cord
• Plastic bracket set

Features

• AVC Support: MPEG–4 using H.264 & AAC codecs
• Scaling & Cropping Features: For flexible display of source content on the decoder output
• Standard Ethernet Network Operation: 10/100/1000Mb
• Decoder–Integrated Network Switch: Allows for KDS–DEC3 daisy chaining and network extension
• Video Support: HDMI
• Audio Support: HDMI or analog
• Streaming Support: Unicast and multicast through RTSP (Real Time Streaming Protocol)
• KDS–EN3 Manager Software: Allows remote management of the KDS–EN3 network including auto–detection and discovery of KDS–EN3/KDS–DEC3 units on a subnet
• Fail–safe Video Playback: When a decoder loses its connection to an encoder
• RS–232 Virtualization: From encoder to decoder

Specifications

• Outputs: 1 HDMI, 1 unbalanced stereo audio on a 3.5mm mini jack
• Ports: 2 Ethernet on RJ–45 connectors (fully switched), 1 RS–232 on a 9–pin D–sub connector
• Video Single Channel HD: Up to 1920x1080p60 and 1920x1200(60Hz)
• Compression Standard: H.264/Mpeg4 Part 10 (AVC)
• Profiles: Baseline, Main, High
• Levels: Up to 4.2
• Bit Rates:
  • 100Kbps to 25Mbps
  • 96, 128, 192, and 256Kbps
• Rate Control: CBR, VBR, adjustable GOP (Group Of Pictures) size
• Audio Compression Standard: MPEG4 AAC–LC
• Channels: 2 channel (stereo), HDMI with digital L–PCM audio
• Analog Sample Frequency: 32, 44.1, and 48kHz
• Output Resolutions: 1920×1200, 1920×1080, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1360×768, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 720×576, 720×480, and 640×480
• Power Consumption: 5V DC, 3A max
• Temperature:
  • Operating: 32° to 104°F (0° to +40°C)
  • Storage: –40° to 158°F (–40° to +70°C)
• Humidity: 10% to 90%, RHL non–condensing
• Product Dimensions (WxDxH): 8.46" x 3.94" x 1.02" (21.50 x 10.00 x 2.60cm)
• Product Weight: 0.6lbs (0.3kg) approx
• Shipping Dimensions (WxDxH): 9.13" x 5.35" x 3.94" (23.20 x 13.60 x 10.00cm)
• Shipping Weight: 2.6lbs (1.2kg) approx
