JVC DT-N17H 17.3" Studio / Field LCD Monitor

OUR PART #: DT-N17H MFR #: DT-N17H

Copied to clipboard

The JVC DT-N17H is a 17.3" studio/field monitor. DT-N17H supports 3G-SDI (SMPTE 425M) Level-A & B, 2K-SDI (SMPTE 2048-2) 60p Level-A & B display. ...Read more

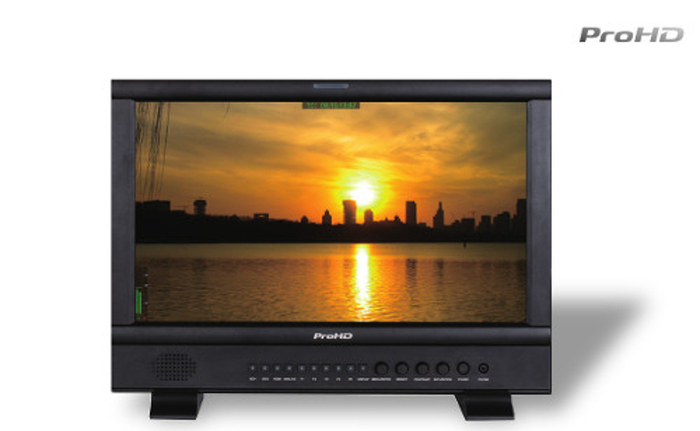

JVC DT-N17H 17.3" Studio / Field LCD Monitor Image 1
JVC DT-N17H 17.3" Studio / Field LCD Monitor
Our Price: $2,017.40
List Price: $2,055.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The JVC DT-N17H is a 17.3" studio/field monitor.

DT-N17H supports 3G-SDI (SMPTE 425M) Level-A & B, 2K-SDI (SMPTE 2048-2) 60p Level-A & B display.

The monitor features a 1920x1080 pixel full HD resolution LCD panel with LED backlighting, with 160° wide viewing angle (H & V), 700:1 contrast, and 16.7M color depth.

The DT-N17H is compatible with ITU-709 standard color space for HDTV broadcasting.

The DT-N17H supports gamma preset selection from: 2.2, 2.4 and 2.6.

The DT-N17H supports SDI/HDMI embedded audio 2-ch meters display, and analog audio 2-ch meters display.

The DT-N17H monitor supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.

The Monitor offers a USB port on the rear side, for firmware upgrade. Users can download firmware to a USB disk, and the upgrade operation is directly on the monitor, without PC or other adaptors.

JVC DT-N17H Includes:

  • Desktop Stands
  • AC-DC Power Adapter
  • Gold Mount battery plate
  • 19" rack mounts

JVC DT-N17H Features:

  • SDI Timecode (LTC, VITC1&2) and AFD info display
  • R/G/B/Mono, False color, Zebra stripes display
  • Peaking focus assist display mode
  • H/V delay, freeze frame display mode
  • Safety area selection: 80%, 85%, 90%, 93%, 95%
  • Scale marker: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • Native scan, over scan and normal scan selection
  • GPI control via RS485 port connection
  • 3 User setting data storage
  • TALLY light with adjustable brightness
  • 4 User definable function keys
  • Easy One-key Menu operation
  • Built-in speaker (2.5W, 8)
  • AntonBauer battery plate for field application (V-mount plate in anoption)

JVC DT-N17H Specifications:

  • LCD Display:
    • Size: 17.3" wide format
    • Display area: 382 x 215mm
    • Resolution: 1920 x 1080 (Full HD)
    • Color depth: 16.77 million
    • Aspect ratio: 16:9
    • Brightness: 300cd/m²
    • Contrast: 700:1
    • Viewing Angle: 160°(H) / 160°(V)
    • Surface treatment: Non-glass
    • Backlighting: LED
  • General:
    • Working voltage: DC / battery 11V-17V
    • Power consumption: Max 32W
    • Working temperature: 0°C - 40°C
    • Working humidity: 10% - 90%
    • Storage temperature: 15° - 60°C
    • Storage humidity: 10% - 90%
    • VESA standard: 100 x100mm (M4x4mm screw)
    • Dimensions: 430 x 310 x 52mm
    • Net weight (w/o stand): 4.7 Kg
  • Compatible video formats:
    • CVBS: NTSC / PAL
    • Y/Pb/Pr:
      • 480i, 480p, 576i, 576p, 720p (50 / 60), 1080i (50 / 60)
      • 480i / 576i / 480p / 576p
      • 1080i (60 / 59.94 / 50)
    • HDMI:
      • 720p (60 / 59.94 / 50)
      • 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
      • 1080psf (30 / 29.97 / 25 / 24 / 23.98)
      • 2048×1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
    • SMPTE-2048-2: 2048x1080i 50 / 59.94 / 60
    • SMPTE-425M:
      • 1080p (60 / 59.94 / 50)
      • 1080i (60 / 59.94 / 50)
    • SDI SMPTE-274M: 1080p (30 / 29.97 / 25 / 24 / 23.98)
    • SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    • SMPTE-296M: 720p (60 / 59.94 / 50)
    • SMPTE-125M: 480i (59.94)
    • ITU-R BT.656:
      • 576i (50)
      • 640x480, 800x600, 1024x768, 1152x864, 1280x768,
    • VGA: 1280x960, 1280x1024, 1600x1200
