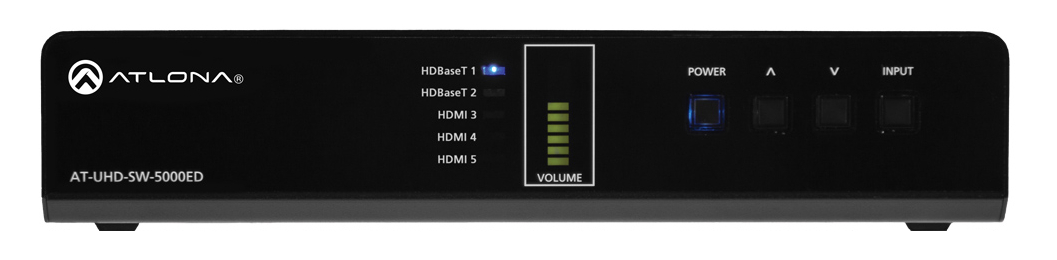

Atlona Technologies AT-UHD-SW-5000ED
4K 5-Input HDMI Switch with 2x HDBaseT In & HDMI/HDBaseT Out

OUR PART #:  AT-UHD-SW-5000ED

The AT-UHD-SW-5000ED is part of the Atlona SW Series of compact AV switchers offers performance, reliability...
Learn More

Call for price! Not available online.

Similar Products

The AT-UHD-SW-5000ED is part of the Atlona SW Series of compact AV switchers offers performance, reliability, and a host of integration and user convenience features making it ideal for a wide range of commercial and residential applications - including, but not limited to:

  • Lecture halls and various meeting spaces –Presentations may be given from two separate locations, both remote from the lectern, equipment rack, or credenza.
  • Conference rooms and meeting rooms – The SW-5000ED is compact and ideal for under-table mounting. It conveniently provides automatic switching and display control for simplified user operation, especially when laptops are brought into the system.
  • Presentation spaces where two displays are needed – This switcher can be installed in a lectern to serve a confidence monitor, plus the primary display in a remote location.

The AT-UHD-SW-5000ED features HDBaseT input and output, and is compatible with Atlona UHD-EX and HDVS-200 Series transmitters and receivers. This switcher can conveniently be controlled by the ANC-108D button control panel.

The Atlona AT-UHD-SW-5000ED is a 5×1 switcher with two HDBaseT inputs, three HDMI inputs, mirrored HDMI and HDBaseT outputs, balanced audio outputs, automatic input selection, and automatic display control capability. The HDBaseT inputs match perfectly with the HDVS-200-TX modules to enable VGA and HDMI sources to be easily integrated into a system. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; (10.2 Gbps). It transmits AV signals along with Ethernet, power, and control over a single cable to displays up to 330 feet (100 meters) from the switcher. Control options include automatic input selection, front-panel buttons, and compatibility with IR, RS-232, or TCP/IP-based control systems. Displays are automatically turned on and off using CEC, IP, or RS-232.

The SW-5000ED enables two HDVS transmitters to be used in a single system. With Ethernet enabled HDBaseT transmission to the HDVS transmitters and the receiver control, setup and maintenance is simplified. Automatic input selection and display control simplify the system, reducing cost, reducing setup time and resulting in a better end user experience.

Atlona AT-UHD-SW-5000ED Includes:

  • 1 x UHD-SW-5000ED
  • 1 x 48V DC power supply (AT-PW48V0.83A-CAPT)
  • 4 x Female captive screw connector (5pin: analog audio, 4 pin: IR, 3 pin: RS-232, and 2 pin: power)
  • 1 x Short rack ear
  • 1 x Long rack ear
  • 2 x Mounting plates
  • 1 x Remote control
  • 4 x Rubber feet
  • 1 x User Manual

Atlona AT-UHD-SW-5000ED Features:

  • Mirrored HDMI and HDBaseT output
  • Two HDBaseT™ Ethernet enabled PoE compatible input ports and three HDMI® inputs
  • Automatic display control using TCP/IP/RS-232 commands, or CEC
  • Auto input switching with video detection technology (activated through RS-232, TCP/IP, or web GUI)
  • Analog audio de-embedding through captive screw connector
  • +4 dBu balanced analog audio output
  • Control volume using web GUI, IR, TCP/IP, or RS-232
  • Supports 4K @ 60Hz 4:2:0 or 4K @ 30Hz RGB with 8 bit color
  • Supports Dolby® TrueHD and DTS-HD Master Audio™ when using an HDMI/HDBaseT for audio input and output
  • Extended distance HDBaseT port w/PoE to power compatible receivers up to 100 meters (328 feet) away
  • Ability to switch HDCP reporting between compliant, noncompliant, and auto EDID management
  • Easy to use webGUI through Ethernet connection
  • Front panel volume control and indicator
  • Half-rack size
  • Comes with rack mount ears and mounting plates

Atlona AT-UHD-SW-5000ED Specifications:

  • Resolution:
    • Video: 4096×2160 @24/25/30/50*/60Hz*, 3840×2160 @24/25/30/50*/60Hz*, 2048x1080p, 1080p @23.98/24/25/29.97/30/50/59.94/60Hz, 1080i @50/59.94/60Hz, 720p @50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
    • Color Depth: 8-bit, 10-bit, 12-bit
  • Audio:
    • Analog: PCM 2Ch (de-embedded)
    • HDMI IN & HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • CAT5e/6 @ 4K: up to 230 feet (70 meters)
    • CAT5e/6 @ 1080p: up to 328 feet (100 meters)
    • CAT6a/7 @ 4K: up to 328 feet (100 meters)
    • HDMI IN/OUT @ 4K: up to 15  feet (5 meters)
    • HDMI IN/OUT @ 1080p: up to 30 feet (10 meters)
  • Signal:
    • Bandwidth: 10.2 Gbps
    • CEC: Compliant
    • HDCP: Switchable – Compliant/Non-compliant – 1.4
  • Temperature:
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 44.22W
    • Idle Consumption: 22W
    • Supply:
      • Input: AC100-240V ~ 50/60Hz
      • Output: 48V/3.125A
  • Dimension (HxWxD): 1.73" x 8.75" x 10.28" (44 x 222.25 x 261 mm)
  • Weight: 3.70 lbs (1.66 kg)
  • Certification:
    • Unit: CE, FCC
    • Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC

NOTE: * 4096×2160 @50/60Hz & 3840×2160 @50/60Hz supported @ chroma sub sampling 4:2:0 8-bit only
