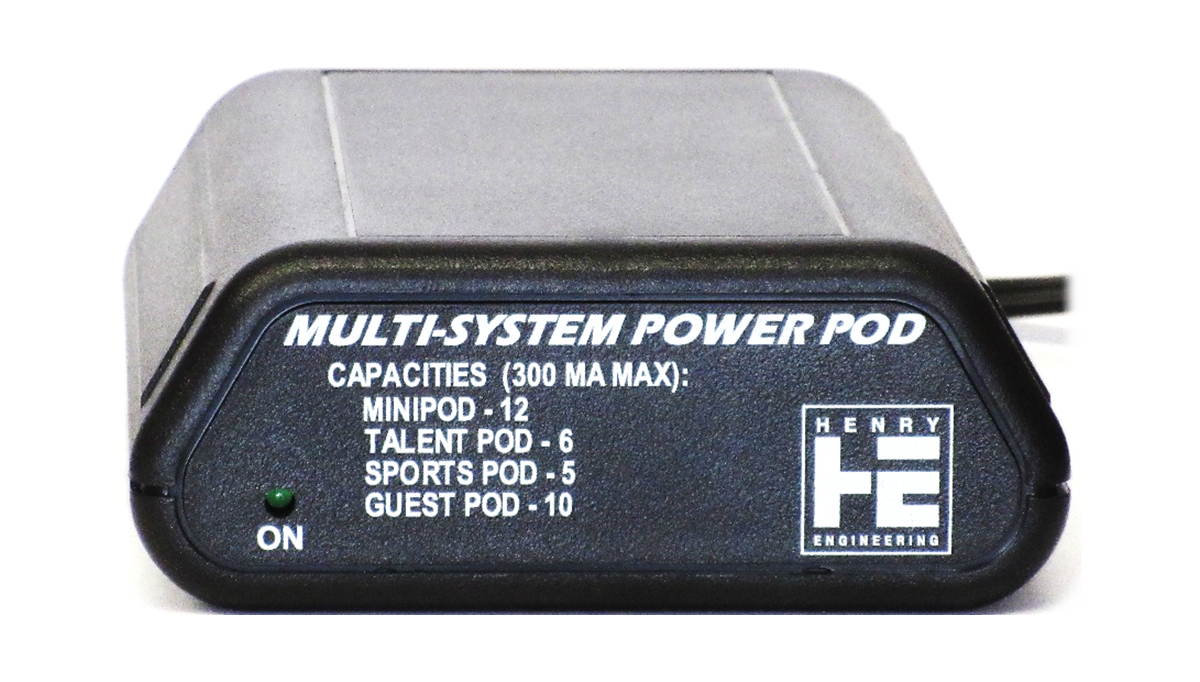

Henry Engineering POWER-POD Multi-System Power Pod Power Supply for Pod Series Products

Henry Engineering's Multi-System Power Pod is a power supply designed for use with all Henry Engineering "pod" products (other Pods sold separately). Power Pod's output is more stable with better regulation and less noise when compared to a "wall wart" transformer, yielding better performance, especially when used with Talent / Sports Pods. It connects to other pod products via the cat5 output, supplying power and Local/Remote (or stereo) audio to all other units in the system. The cat5 linking will distribute power and audio to the entire system, eliminating the need for separate power supplies, as well as audio DAs, and complicated wiring. Note that audio may be fed into the Power Pod, OR into any other unit in the system. Any combination of pod products (sold separately) can be used, up to a maximum of 300 mA:

• TALENT POD (50 mA ea., sold separately)
• SPORTS POD (60 mA ea., sold separately)
• MINIPOD (25 mA ea., sold separately)
• GUEST POD (30 mA ea., sold separately)

The Power Pod's TB OUT jack provides a convenient way to access the Talkback audio from Sports Pod units; it offers a mix of all the Sports Pods' Talkback outputs.

Henry Engineering's Multi-System Power Pod Specifications:

• Power Input: 115 OR 230 VAC, 50-60 Hz, 3W
• Power Output: Bi-polar 12 VDC, 300 mA max.
• Audio Input: Balanced inputs X2, ¼" TRS jacks
• Talkback Output: Unbalanced, -10 dBv, 3.5mm jack
• Compliance: .018 x 10 ¯ ³ cm/dyne
