ikan DH7-DK 7" 4K HDMI On-Camera Monitor Deluxe Kit

The ikan Corporation DH7 Full HD monitor features 4K HDMI capabilities all within a lightweight, affordable package. The 7" monitor's 1920x1200 HD resolution combined with an IPS screen delivers vibrant color and strong viewing angles. It can handle 4K signals from the most popular 4K HDMI cameras and offers two programmable feature buttons. It's no surprise the DH7's simple, practical design makes it the ideal size and weight for field production.

4K Signal Capability: The DH7 supports HDMI input and output signals up to 3840x2160 video resolution. It also offers 1:1 pixel mapping and peaking to ensure everything stays in sharp focus.

1920 x 1200 IPS Panel: The high quality IPS panel will render the best possible image regardless of the monitor's signal. With deep black and nearly perfect viewing angles, the DH7 is the perfect companion for the shooter on the go.

Inputs and Outputs: It's incredibly easy to set your 4K HDMI input and output signals on the DH7. A headphone jack and audio meter display allows you to create clean audio levels. A USB port is also included for software updates.

Battery Power: The DH7 monitor comes with the Sony L series and Canon E6 battery plate. In addition to supporting Ikan's BP5 battery plate system, it's also compatible with the Canon 900, Sony BP-U, Panasonic D54, Panasonic G6 and the Nikon EL-15.

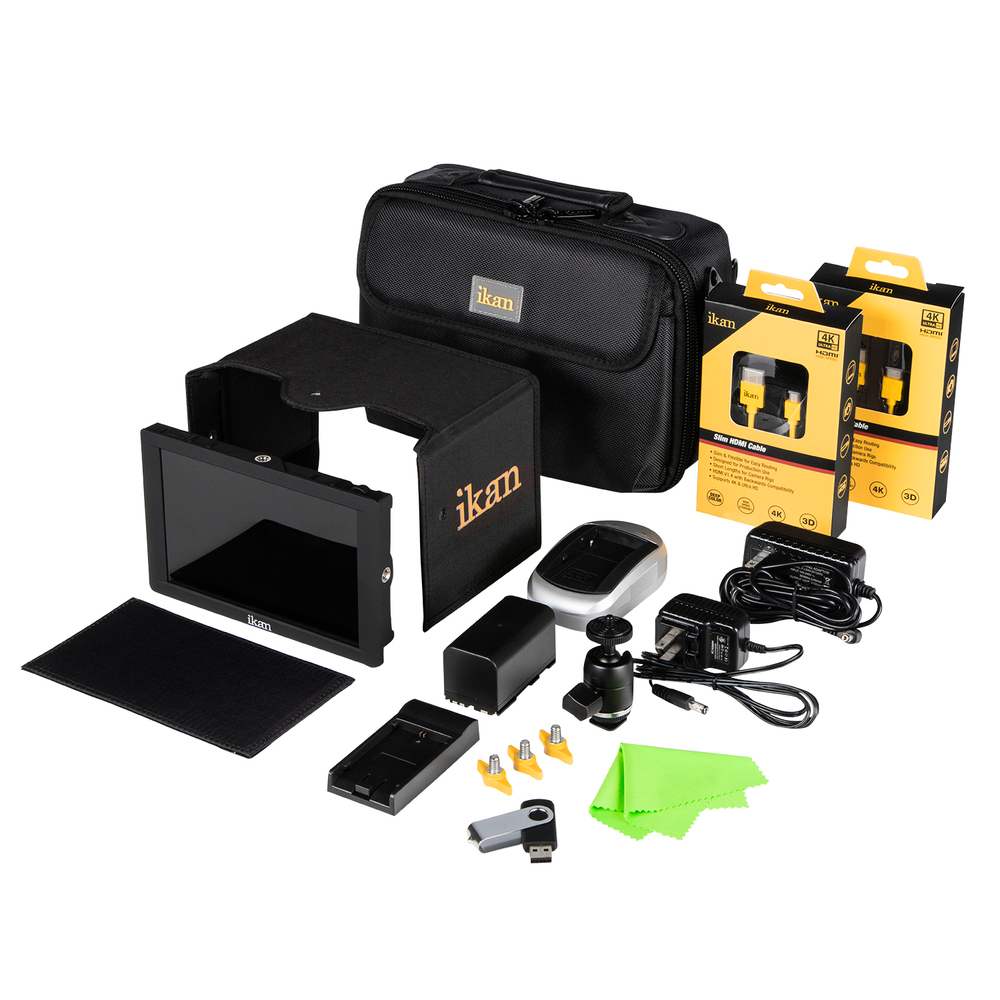

ikan Corporation DH7-DK-N Includes:

• AC Adapter
• DH7 Monitor
• DV Battery
• DV Battery Charger
• DV Battery Plate
• Screen Protection Film
• Screen Wipe
• Shoe Mount
• Soft Padded Case
• Standard To Micro HDMI Cable (1.5 Ft)
• Standard To Mini HDMI Cable (1.5 Ft)
• Sunhood
• USB Drive

ikan Corporation DH7-DK-N Features:

• 1920 x 1200 Full HD Plus LCD Panel
• Supports DCI 4K Ultra HD HDMI Input & Output Signals (Loop Through)
• IPS Screen for More Accurate Color & Viewing Angles
• Histogram & Audio Level Meters
• Peaking, False Color, Clip Guides, & Pixel to Pixel
• Headphone Output
• Video Inputs: HDMI

ikan Corporation DH7-DK-N Specifications:

• HDMI:
  • 720x480i & 720x480p @ 59.94, 60 Hz
  • 720x576i @ 50 Hz
  • 1280x720p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
  • 1920x1080i @ 50, 59.94, 60 Hz
  • 1920x1080psf @ 24, 25, 29.97, 30 Hz
  • 1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
  • 3840x2160p @ 24, 25, 30 Hz
  • 4096x2160p @ 24 Hz
• Aspect Ratio: 16 x 10
• Backlight: LED
• Brightness: 300 cd/m2
• Build Material: Heavy Duty Plastic
• Color Depth: 16.7 Million
• Color System: PAL/NTSC/SECAM (Auto-Detected)
• Contrast Ratio: 1200:1
• Monitor Dimensions: 7.2" x 4.5" x 0.6" (184 x 116 x 17 mm)
• Input Voltage: DC 7V - 24V
• Inputs: HDMI
• Operating Temperature: 32°F ~122°F (0°C ~ 50°C)
• Outputs: HDMI
• Pixel Pitch: 0.07875 × 0.07875 (mm)
• Power Consumption: 6W
• Resolution: 1920 x 1200
• Response Time: 20ms
• Screen Size: 7"
• Shipping Dimensions: 6" x 8" x 11" (15.2 x 20.3 x 27.9 cm)
• Shipping Weight: 4 lbs (1.8 kg)
• UPC Code: 847983019434 (C), 847983019441 (E6), 847983019458 (N), 847983019410 (P), 847983019427 (S)
• Viewing angle: 178° horizontal/178° vertical
• Monitor Weight: 0.5 lbs (0.26 kg)
