Lectrosonics ZS-LRHMa
Wireless Plug-On System and L-Series Kit


The ZS-LRHMa is a complete wireless audio kit from Lectrosonics that makes it easy to put the L Series products right to work on the job...
Learn More
Selected Model Price: $2,529.00
List Price: $3,454.00
Save up to 27%!
Write the first review.
Lectrosonics ZS-LRHMa
Select a Model: (shipping times are approximate)

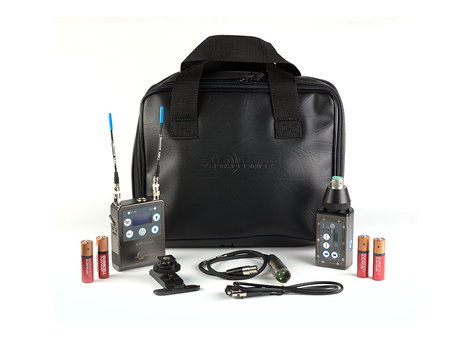

The ZS-LRHMa is a complete wireless audio kit from Lectrosonics that makes it easy to put the L Series products right to work on the job, getting you up and running faster. It includes everything you need (Note: you provide the microphone which is sold separately). Major components included are (Note: (4) AA batteries are also included):

  • LR Receiver
    Delivers excellent performance in a small package for ENG and DSLR video production. Its tracking front-end filters block interference from high powered RF signals on nearby channels to preserve the extended operating range. The RF spectrum scanning displays accurate results on the LCD to make finding clear spectrum quick and easy. It's powered by internal AA batteries or with an optional battery eliminator (sold separately). The top panel includes an IR port for transmitter setup, firmware updates are enabled via a USB port on the side panel, and the housing is made from a solid machined aluminum billet.
  • HMa Transmitter
    The HMa transmitter features a unique plug-on design that will ideally match any microphone or line-level source via a standard XLR connector. Phantom power is selectable at 5, 15, and 48 volts, or can be switched off for use with dynamic microphones and line-level signal sources. The design includes a wide tuning range of up to 76 MHz, with tuning steps in increments of 100 kHz or 25 kHz for up to 3072 frequencies. The tuning range covers (3) standard 25.6 MHz Lectrosonics frequency blocks, with each of the standard blocks including 256 different pilot tone frequencies for compatibility with all Digital Hybrid Wireless receivers. Additionally, DSP compatibility modes are also included to work with legacy Lectrosonics analog wireless microphone receivers and IFB receivers, as well as some receivers from other manufacturers.
  • LRSHOE Accessory Camera Mount
    LRSHOE is an accessory shoe designed for use with the LR receiver to allow mounting onto DSLR cameras.
  • MCSRXLR Cable
    The MCSRXLR is a 15" audio cable for LR receiver; TA3F plug to 3-pin male XLR.
  • MCLRTRS Cable
    The MCLRTRS is an audio cable; LR output; TA3F to 3.5mm TRS male; 20" in length. It's wired for mono output (tip and ring are combined).
  • CCMINI Pouch
    The CCMINI is a soft-sided, padded and zippered carrying case designed for compact wireless systems.

Lectrosonics ZS-LRHMa Features:

LR Receiver

  • Tunes over a 75 MHz range*
    *Note: Tuning range varies slightly in different frequency bands
  • Tracking front-end filters
  • Digital Hybrid Wireless® with compatibility modes for use with earlier transmitters
  • Compact size powered by 2 AA batteries or an optional battery eliminator (sold separately)
  • LCD with RF spectrum scanning
  • SmartSquelch™ noiseless muting adapts automatically for near/far operation
  • DSP-based pilot tone for squelch control
  • USB port for firmware updates
  • IR sync port for transmitter setup

HMa Digital Hybrid Wireless® UHF Plug-on Transmitter

  • Accepts microphone or line-level signals
  • Selectable 5, 15, 48 volt phantom power
  • 76 MHz tuning range in 100 kHz or 25 kHz steps for up to 3072 frequencies
  • Selectable 50/100 mW output power
  • Adjustable low frequency roll-off
  • Powered by 2 AA batteries
  • USB port for firmware updates
  • IR (infrared) port for fast setup
  • Solid machined-aluminum housing

Lectrosonics ZS-LRHMa Technical Specifications:

For Technical Specifications and additional information, please refer to the items under the "DOCUMENTATION" tab, above.

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
