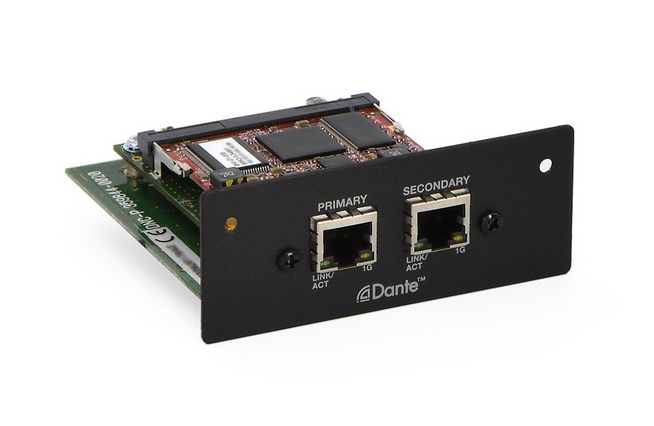

Bose Professional 359844-0020 PowerMatch® Dante™ Network Card

The Bose Professional Dante network card for PowerMatch configurable professional power amplifiers provides 8 input channels of low-latency digital audio using the Dante audio networking solution from Audinate®. Eight output channels are available for diagnostic monitoring from remote locations.

The Dante network card is installed into the digital expansion slot of the amplifier and includes a primary and secondary Gigabit Ethernet port. The secondary port can be configured for switched (default), redundant, or filtered for legacy product network connections. Up to 10 devices can be daisy-chained using the switched port configuration.

Bose Dante network card for PowerMatch Specifications:

• Input Channels: 8 (max), 4-ch range selectable on PM4500/PM4250
• Connectors: Two 1 Gb (Gigabit) Ethernet RJ-45
• Secondary Port Modes: Switched (default) / Redundant / LegacyHardware (multicast filtered)
