Innovox Audio SL-Micro
Slim 2-Way Loudspeaker, White

OUR PART #:  SL-MICRO-WHITE

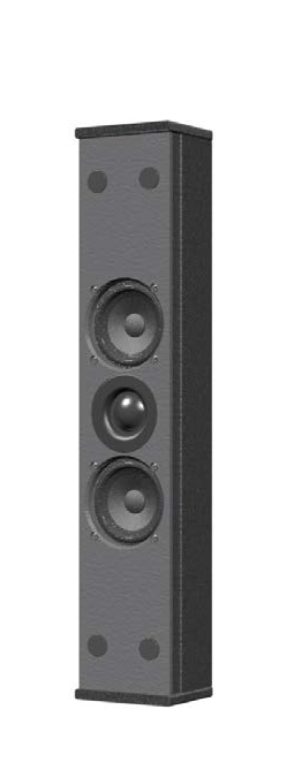

Note: Image shown is for display purposes only. This item comes in white. For more information please contact your Full Compass Sales Pro.
Learn More

Call for price! Not available online.

Similar Products

Note: Image shown is for display purposes only. This item comes in white. For more information please contact your Full Compass Sales Pro.

The Innovox Slim Line SL-Micro is a slim 2-way loudspeaker designed to be surface- or flush-mounted and disappear into the architectural surroundings. It employs a 3/4” textile dome HF driver and two 2” long-excursion LF drivers to yield a very smooth, neutral response for near-field applications.

Innovox SL-Micro Features:

  • Slim profile (only 2.0” deep by 2.5” wide)
  • 120°H x 90° V coverage
  • Blends into architectural environment
  • Easily integrated into architectural casework with optional millwork adapter kit

Innovox SL-Micro Specifications:

  • System Configuration: Low profile 2-way
  • Components and Loading: (2) 2” long-excursion LFdrivers, (1) 3/4” textile dome HF
  • High-Pass Filter: Built-in 1st order @ 130 Hz
  • Enclosure Type: Sealed enclosure, very low profile
  • Enclosure Material: Aluminum chassis, with compositeendcaps
  • Finish: Black or White
  • Connectors: Dual binding head screws
  • Suspension Hardware: Mounting brackets included
  • Grille: Perforated metal
  • Frequency Response: 150 – 20,000 Hz +/- 3 dB
  • Sensitivity: 84 dB @ 2.83 volts / 1M
  • Impedance: 8 Ohm
  • Power Handling: 45 W long term program
  • Maximum Output: 100 dB long term / 106 dB peak @ 1meter on axis
  • Nominal Coverage Angles: 120° H x 90° V
  • Dimensions:
    • Height: 13" (330 mm)
    • Width: 2.5" (64 mm)
    • Depth: 2" (51 mm)
  • Net Weight: 2.5 lbs (1.2 kg)
  • Shipping Weight: 3 lbs (1.4 kg)
