QSC E215 Dual 15" 2-Way, Externally Powered, Live Sound-Reinforcement Loudspeaker

OUR PART #: E215-QSC MFR #: E215

Copied to clipboard

The QSC E215 is a trapezoidal, two-way loudspeaker featuring dual 15" 500W (continuous) die-cast aluminum frame woofers with 3.5" voice coil. ...Read more

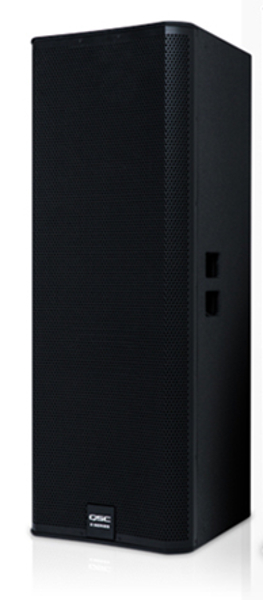

QSC E215 Dual 15" 2-Way, Externally Powered, Live Sound-Reinforcement Loudspeaker Image 1
QSC E215 Dual 15" 2-Way, Externally Powered, Live Sound-Reinforcement Loudspeaker Image 2
QSC E215 Dual 15" 2-Way, Externally Powered, Live Sound-Reinforcement Loudspeaker Image 3
QSC E215 Dual 15" 2-Way, Externally Powered, Live Sound-Reinforcement Loudspeaker Image 4
QSC E215 Dual 15" 2-Way, Externally Powered, Live Sound-Reinforcement Loudspeaker
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The QSC E215 is a trapezoidal, two-way loudspeaker featuring dual 15" 500W (continuous) die-cast aluminum frame woofers with 3.5" voice coil. It employs a Frequency-shading topology across both woofers to maximize low frequency output, while minimizing interference through the HF crossover transition. It is intended for use when high-power and extended low-end are needed from a single full-range loudspeaker. A large format 2.8” compression driver attached to the 75° DMTTM waveguide assures that even distant listeners will be well covered.

The E Series is a range of passive loudspeakers offering robust construction, trusted reliability and overall sonic performance beyond expectations. Intended for sound reinforcement in entertainment applications including live performance, DJ and dance music, karaoke and event production, E Series loudspeakers will deliver outstanding results. Building on QSC’s proven “Systems” methodology, the E Series loudspeakers’ performance is further enhanced when paired with QSC’s GXD or PLD amplifiers or with a QSC TouchMix digital mixer, and taking advantage of the on-board DSP and factory-tuned presets. These presets support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Features

  • High output, professional quality sound with 1000W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
  • Titanium diaphragm for high fidelity and long life
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill

Specifications

  • Configuration: 2 x 15", 2-way non-powered
  • Frequency Response (-6 dB): 49 Hz - 20 kHz
  • Frequency Range (-10 dB): 39 Hz - 20 kHz
  • Power capacity: continuous/peak: 1000W / 4000W
  • Sensitivity: 98 dB, 1 W @ 1 m
  • Coverage Angle: 75° conical DMT
  • Output1 (peak SPL @ 1 m): 134 dB
  • Drivers:
    • LF: 2 x 15" (381 mm) driver with 3.5" (89 mm) voice coil
    • HF: 1.5" (38 mm) exit, 2.8" (71 mm) voice coil, compression driver
  • Nominal Impedance: 4 Ω
  • Cross-over: Full-range only, 1.8 kHz
  • Input connectors: 2 x NL4, 1 x barrier strip
  • Enclosure: 11-ply, black texture paint finish. Perforated, powder-coated steel grille with foam lining
  • Gross weight: 115 lbs. (52.3 kg)
  • Net speaker weight: 108 lbs. (49.1 kg)
  • Dimensions (W x H x D): 16.5" x 44.25" x 18.25" (420 x 1125 x 464 mm)
