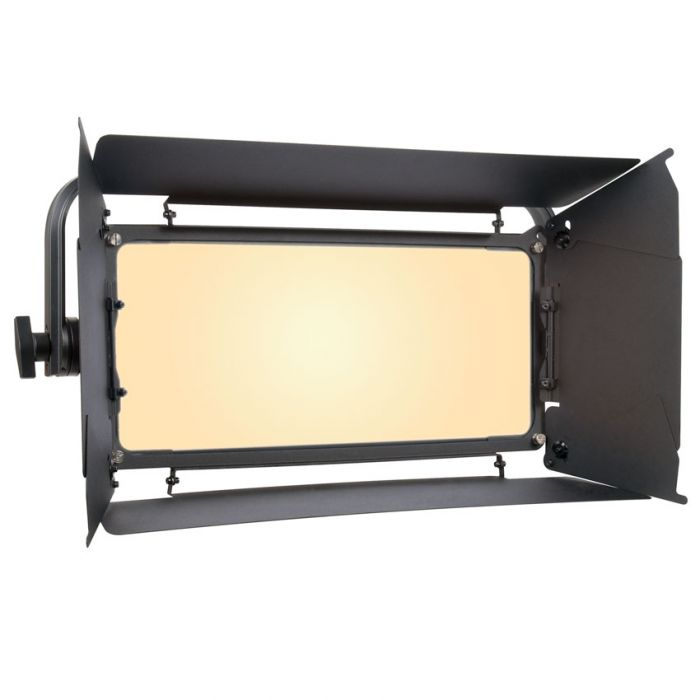

Elation Pro Lighting TVL SOFTLIGHT DW
100W 3K-6K LED Fixture with Barn Doors

OUR PART #:  TVL-SOFTLIGHT-DW

The Elation Pro Lighting TVL SOFTLIGHT DW™ is a softlight luminaire featuring (240) Cool White and (240) Warm White LEDs, a 115° beam angle...
Learn More
Elation Pro Lighting TVL SOFTLIGHT DW Back
Elation Pro Lighting TVL SOFTLIGHT DW No Doors
Elation Pro Lighting TVL SOFTLIGHT DW Ports

Click a thumbnail to see more images. (6 total)

Our Price: $1,040.00
List Price: $1,300.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting TVL SOFTLIGHT DW
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Elation Pro Lighting TVL SOFTLIGHT DW™ is a softlight luminaire featuring (240) Cool White and (240) Warm White LEDs, a 115° beam angle, 8-leaf adjustable / removable barn doors, linear white color temperature range (3,200K - 5,600K), smooth 16bit dimming curve mode effects, adjustable LED refresh frequency and gamma brightness for flicker free operation for TV and FILM, 5pin DMX, RJ45 etherCON (Art-NET), and powerCON TRUE1 connections, (4) button menu control panel, dimmer and color temperature rotary control dials, 180° reversible LCD menu display, multiple unit power linking, and a multi-voltage universal auto switching power supply (100-240v).

Elation Pro Lighting TVL SOFTLIGHT DW Features:

  • Dynamic White 115° Beam TVL Panel SoftLight
  • Linear White Color Temp Range (3,200K - 5,600K)
  • Smooth 16bit Dimming and Dimming Curve Effects
  • Dimmer and Color Temperature Rotary Control Dials
  • 8-Leaf Adjustable / Removable Barn Doors Included
  • Adjustable LED Refresh Rate and Gamma Brightness
  • Flicker Free Operation for TV and FILM

Elation Pro Lighting TVL SOFTLIGHT DW Specifications:

  • Source:
    • (240) Cool White and (240) Warm White LEDs
    • 20,000 Hour Average LED Life*
      *May vary depending on several factors including but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
  • Photometric Data:
    • >95CRI | 6,700 Total Lumens
    • 2,299 LUX 214 FC @6.6 ft (2m) Full ON 4,200K >95CRI
    • 2,322 LUX 216 FC @6.6 ft (2m) CW 5,600K >96CRI
    • 2,258 LUX 210 FC @6.6 ft (2m) WW 3,200K >95CRI
  • Effects:
    • 3,200K - 5,600K Linear Variable Color Temperature
    • Electronic Strobe and Variable Dimming Curve Modes
  • Color: Cool White / Warm White
  • Control/Connections:
    • 6 DMX Channel Modes (7 total channels)
    • 4 Button Control Panel
    • 2 Rotary Control Dials (Dimmer and Color Temperature)
    • Adjustable Refresh Rate (900-25,000 Hz)
    • Adjustable Gamma Brightness (2.0-2.8)
    • 180° Reversible LCD Menu Display
    • 5pin DMX In/Out
    • RJ45 etherCON (Art-NET) In
    • powerCON TRUE1 Power In
  • Dimensions (LxWxH): 26.5” x 12.4” x 16.7” (673 x 315 x 425mm)
  • Weight: 18 lbs. (8.2 lg) (w/barndoors attached)
  • Electrical/Thermal:
    • AC 100-240V - 50/60Hz
    • 99W Max Power Consumption
    • 5°F to 113°F (-15°C to 45°C)
  • Approvals/Ratings: CE | cETLus | IP20

NOTE: Specifications and documentation subject to change without notice.
