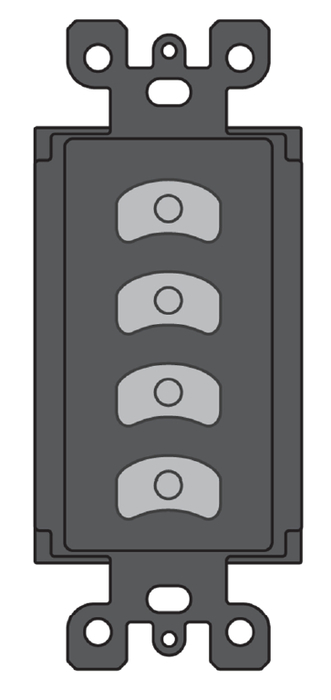

Pathway Connectivity 0700-5412 4-Button Primary Insert for Vignette PoE

The Vignette™ from Pathway Connectivity is a series of DMX Snapshot and Zone Controller units, with this model number (700-5412) being a 4-Button Primary Station Insert. Available in black or white, Vignette modular button and slider wall station inserts allow you to snapshot four universes of E1.31 sACN or one universe of DMX512. You can design custom wall stations, from single-gang up to six-gang.

Buttons can be press-and-hold to record, and press to play back. Sliders can act as grand master for the Vignette's output, or proportionately control user-defined zones with minimum and maximum values for individual channels. Playback and crossfade between snapshots, complex zones, single channels or non-dims of a very large network of station, using PoE or multidrop (RS485) wiring topology.

Pathway Connectivity Vignette 700-5412 Features:

• Attractive Decorator-style design in white or black,compatible with Pathway Connectivity or third-party faceplates
• Primary/secondary inserts available as single or doublesliders, or as two or four buttons
• PoE variant works with the VIA PoE switches andPathport gateways
• RS485 variant requires DIN-rail mounted VignetteArchitectural Gateway that includes an ethernet port for configuration, sACNsend/receive as well as DMX in/out. Each Gateway can support up to 64 modulesacross four separate daisy-chain buses
• Group stations to mirror each other or workindependently
• Works as a snapshot record and playback out of thebox. Advanced configuration using Pathscape on Mac OS or Windows PC
• Buttons have multiple functions including snapshotreplay, non-dim zones, record enable and take control
• Sliders can act as zone control or grand master

Pathway Connectivity Vignette 700-5412 Specifications:

• Model Number: 0700-5412
• Type: Vignette PoE - Four Button Primary Insert
• Class 2 (PoE or 24V DC RS485 over Cat5 or 3-paircable)
• 7.5 watts maximum power consumption per station
• Operating conditions: 32°F-105°F (0°C to 40°C ),10-90% relative humidity, non-condensing
• Cabling:
  • PoE: Standard Cat5/5e/6 Ethernet, 330 ft (100 m) max
  • RS485: Cat5/5e/6 cable, 500 ft (150 m) max; Belden 9773 or equivalent, 1000 ft (300 m) max
• Compliance:
  • ANSI E1.11 DMX512-A
  • ANSI E1.31 streaming ACN
  • IEEE 802.3AF Power-over-Ethernet
  • RoHS 2002/95/EC
• Physical:
  • 0.5 lbs (0.225 kg) [per insert]
  • 1.75”W x 1.6”D x 4”H (45mm x 40mm x 102mm) [Primary]

NOTE:

Each PoE station must have Cat5 homerun to Ethernet PoE switch.

Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.
