Pathway Connectivity 0700-5901 NSB 2-Button Local Insert

OUR PART #: P700-5901 MFR #: PWWSI LOC B2 BL

Copied to clipboard

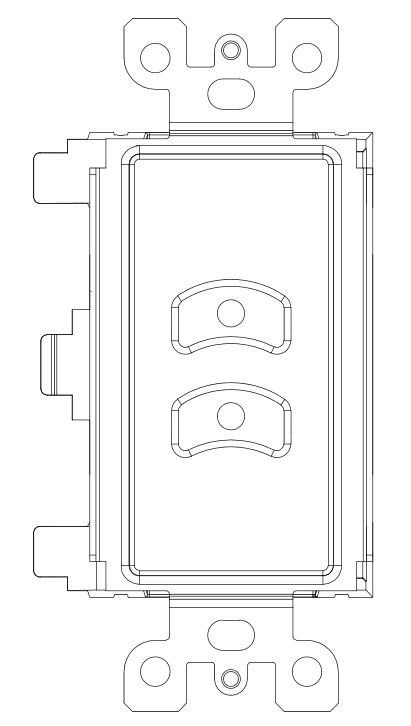

Pathway Connectivity 0700-5901 NSB 2-Button Local Insert Image 1
Pathway Connectivity 0700-5901 NSB 2-Button Local Insert
Selected Model Price: $255.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
(shipping times are approximate)
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

From Pathway Connectivity comes NSB™ (Networked Sliders and Buttons) - a system of modular button and slider wall station inserts that are fully compatible with Cognito2™ and Choreo™ lighting control platforms. Now you can design the wall station needed, from single-gang up to six-gang. Any button or slider may be associated with memories recorded on a Cognito2 or Choreo.

This model, the 700-5901 is a Two Button Secondary Insert that is available in either black or white.

Pathway 700-5901 NSB Insert Features:

  • Attractive Decorator-style design in white or black, compatible with Pathway Connectivity or third-party faceplates
  • Primary/secondary inserts available as single or double sliders, or as two or four buttons
  • PoE variant works with the VIA PoE switches and Pathport gateways
  • RS485 variant requires eDIN NSB Architectural Gateway that includes an ethernet port for configuration and communication with the controller. Each Gateway can support up to 64 modules divided among four separate multi-drop buses
  • Associate buttons and sliders with Memories recorded on a Cognito2 or Choreo controller on the same network
  • Button behavior mimics Memory's recorded button actions
  • Discovery and configuration from within Cognito2 or Choreo
  • Works with Room Combine to control lights in its own space

Pathway 700-5901 NSB Insert Specifications:

  • PoE: Class 2 (PoE of 24V DC RS485 over Cat5 or 3-pair cable)
  • 7.5 watts maximum power consumption per station
  • Operating Conditions: 32°F-105°F (0°C to 40°C ), 10-90% relative humidity, non-condensing
  • Cabling:
    • PoE: Standard Cat5/5e/6 ethernet, 330 ft (100 m) max
    • RS485: Cat5/5e/6 cable, 500 ft (150 m) max, or retrofit onto existing 3-pair Belden 9773 or equivalent, 1000 ft (300 m) max.
  • Compliance:
    • ANSI E1.11 DMX512-A
    • IEEE 802.3AF Power-over-Ethernet
    • RoHS 2002/95/EC
  • Physical:
    • 0.5 lbs (0.225 kg) [per insert]
    • 1.75”W x 1.6”D x 4”H (45mm x 40mm x 102mm) [Primary]

NOTE:

Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.
