Pathway Connectivity 700-5392
NSB 485 Architectural Gateway with 2 DMX and 8 Contact Closures

OUR PART #:  P700-5392

Our Price: $528.22
List Price: $550.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Pathway Connectivity 700-5392
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Pathway NSB™ 485 Architectural Gateway series provides a connection for your architectural lighting system to the NSB485 button and slider stations using a multi-drop serial data bus. Providing power on four separate buses, each accommodating up to 16 devices (button or slider modules), this device comes in a variety of configurations with or without buttons and auxiliary contact closure inputs.

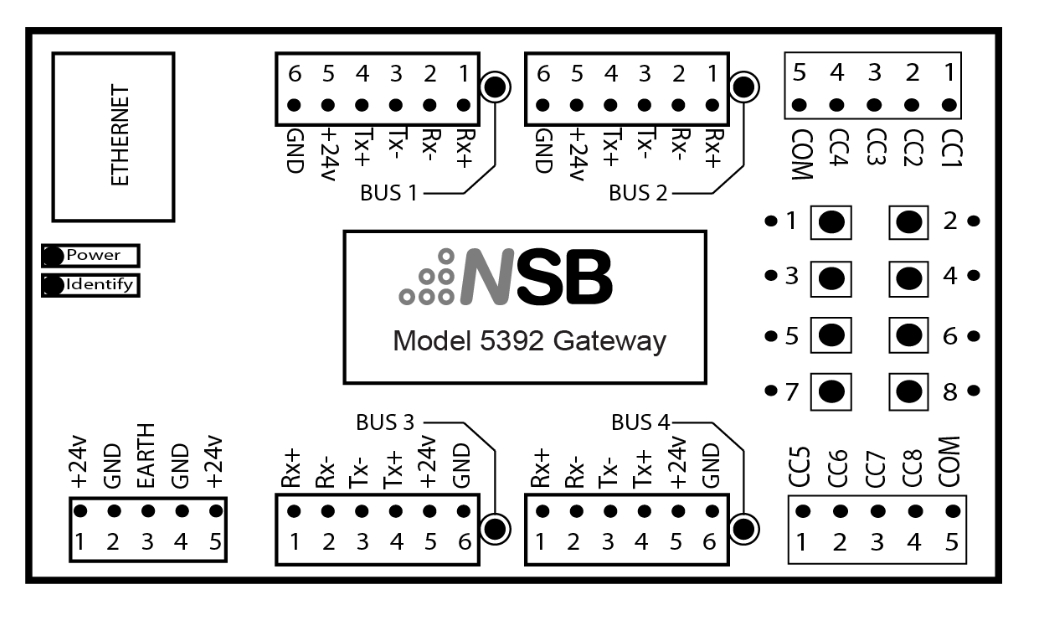

This model, the 700-5392 is a NSB485 Gateway with 2 DMX and 8 Contact Closures with four buses, each capable of powering 16 inserts (a 3-gang button station is 3 inserts.) The 700-5392 is also capable of local control of Choreo or Cognito2 Memories for testing and provides connections for eight momentary contacts.

NOTE: NSB Gateways are required on networks using RS485 Master Inserts.

Pathway NSB485 Gateway Features:

  • Power and network connectivity for NSB485 slider and button modules, with optional Contact Closures
  • Greatly extends the number of NSB stations connected to a Choreo Architainment Controller using a single Ethernet connection
  • Also compatible with Cognito2 consoles
  • Allows using legacy multi-drop wiring where PoE home-run is not feasible
  • Use third-party buttons to trigger Choreo/Cognito memories
  • Increase the number of A/V contacts for your Choreo Architainment Controller
  • Attached devices can be discovered and configured on Choreo or Cognito2
  • Pathscape can discover and identify attached NSB stations.

Pathway NSB485 Gateway Specifications:

  • Compatible with NSB 700-53xx series of button and slider inserts
  • Class 2 (24v DC RS485 over Cat5 or six-wire cable)
  • 3.6” wide and 4.5”, 6.25” and 8” long depending on model
  • Compression fit and IDC terminal connections for DMX512 connections and station buses
  • 10W at 24V max. power consumption. 1W per insert on the bus
  • Operating Conditions: 32°F-105°F (0°C to 40°C)
  • Standards Compliance:
    • IEEE 802. Ethernet
    • RoHS 2002/95/EC
