Pathport OCTO 8-Port Gateway with Front RJ45 Ethercon Connectors

OUR PART #:  P6407

NOTE : Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.
Learn More
Our Price: $1,961.96
List Price: $2,200.00
You save 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Pathway Connectivity 6407
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NOTE: Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

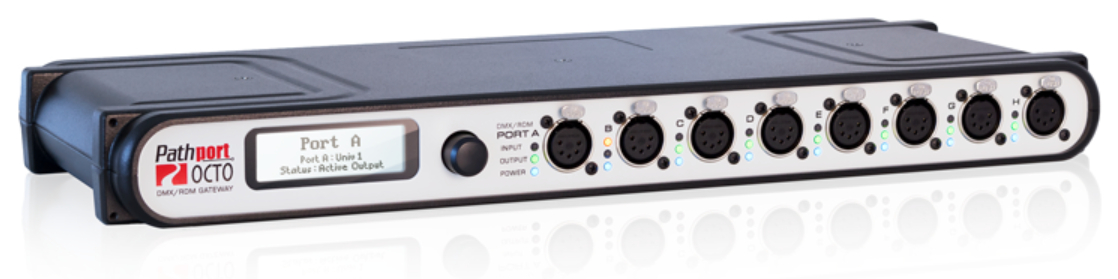

The Pathport Octoâ„¢ from Pathway Connectivity is an eight-port rackmountable gateway, providing compact installation for any size system. This model, the 6407 is a Pathport Octo 8-Port Node with front RJ45 Ethercon connectors. The Octo also provides a simple, straightforward replacement option for Pathfinderâ„¢ matrix switching systems.

Status LEDs provide instant confirmation of port direction and activity. The LCD display and encoder knob allow for front panel configuration and reporting of the most commonly used features, such as IP address and subnet mask, port direction and protocol selection. Different Ethernet protocols may even be merged together or prioritized. Advanced features include crossfade between DMX sources, DMX output speed and signal loss behavior. Multiple connector options available, including adaptor kits to convert terminal strips to IDC connections.

Pathway 6407 Pathport Octo Gateway Includes:

  • Installation/Operations manual
  • Rackmount Ears

Pathway 6407 Pathport Octo Gateway Features:

  • Eight DMX512 ports, individually configurable
  • 10/100Mb Ethernet port
  • Front panel UI supports configuration of  IP settings, port direction, basic patching and more
  • Route DMX on either a universe or channel-by-channel basis
  • Map up to eight sources to each output channel, with merge and/or priority options user-set for each source
  • Acts as E1.20 RDM proxy controller, when used with freely downloadable Pathport Manager software
  • DMX output speed and signal loss behavior user-selectable
  • Silent, fanless operation
  • Rackmount ears included
  • Wide-range power input
  • Supports the  following Ethernet protocols:
    • E1.31 streaming ACN (sACN)
    • Art-Net
    • Pathport Protocol
    • Shownet

Pathway 6407 Pathport Octo Gateway Specifications:

  • 85-264VAC wide-ranging power input
  • Operating Conditions: 14 to 122° F (-10 to +50° C), 5-95% relative humidity, non-condensing
  • Compliance:
    • USITT DMX512 –1990 ANSI E1.11 DMX512-A R2013
    • E1.20 RDM - Remote Device Management
    • E1.31 sACN - streaming ACN
    • ETL
    • CE
    • RoHS 2002/95/EC
  • Physical:
    • 5.2 lb (2.4 kg)
    • 17 x 6 x 1.7 in (432 x 150 x 40mm)
