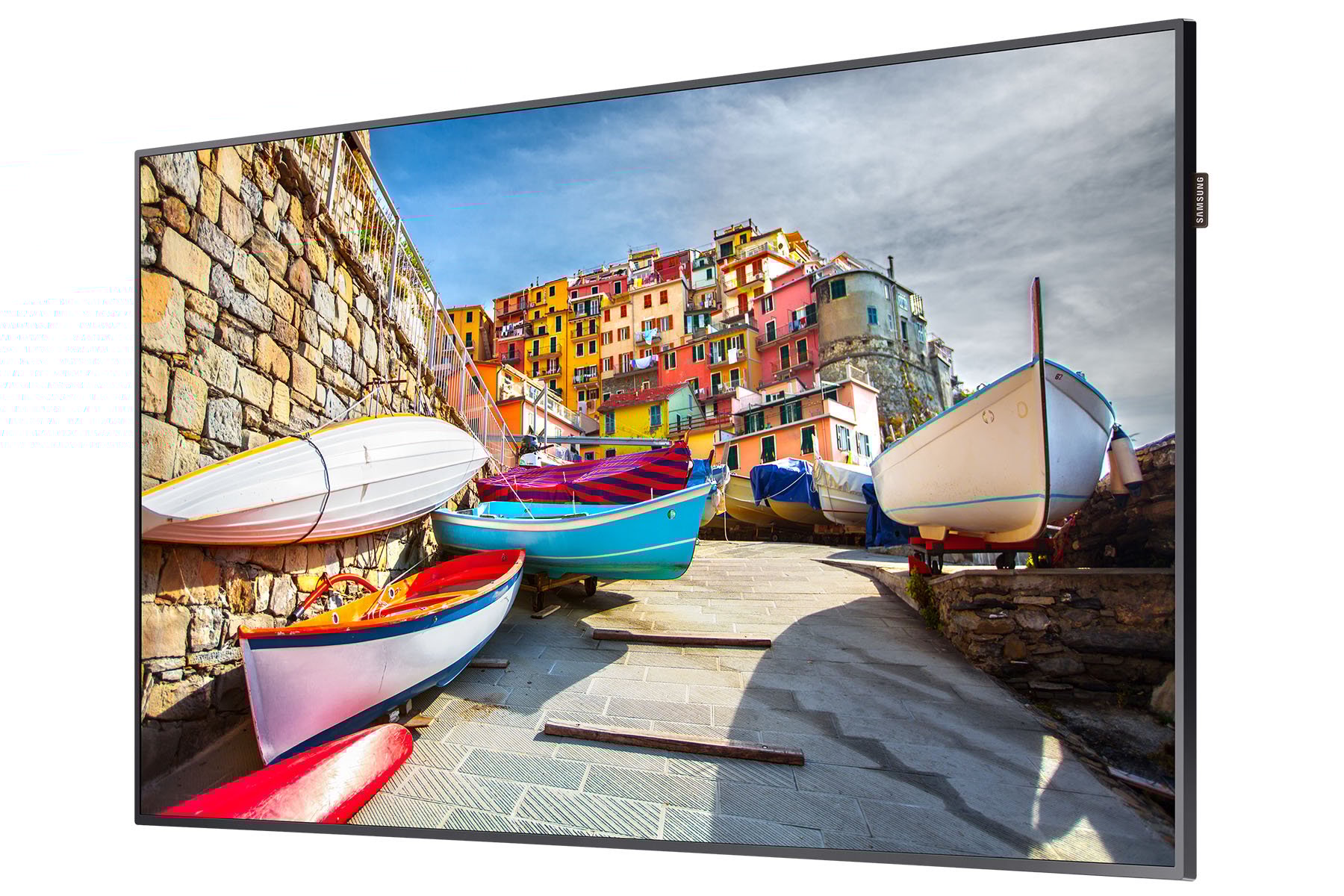

Samsung PM49H
49" SMART Signage Commercial Display with MagicInfo Player S4

OUR PART #:  PM49H

This member of Samsung's SMART Signage PMH Series, the PM49H can amplify business content efficiently through this captivating TIZEN-powered display that features 24/7 durability.
Learn More
Samsung PM49H - Detailed Connectors View
Samsung PM49H - Connectors View
Samsung PM49H - Side View

Click a thumbnail to see more images. (6 total)

Our Price: $1,142.37
List Price: $1,537.00
You save 26%!
Be the first to review.
Samsung PM49H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This member of Samsung's SMART Signage PMH Series, the PM49H can amplify business content efficiently through this captivating TIZEN-powered display that features 24/7 durability. The PM49H can accommodate any business setting through its slim design and deploy advanced web applications to effectively manage content by using SSSP 4.0 powered by TIZEN. This model can effectively handle all environmental conditions and dusty situations thanks to IP5x-certification and allowing you to realize complete and convenient control by navigating display hub with Central IR. Plus, you'll discover heightened image visibility and information readability with its non-glare panel.

Samsung's PMH series of displays support SSSP 4.0 which allows for a stronger, faster and more stable performance than its previous models. Transcending past hardware performance, the new SSSP 4.0 enables CMS partners to develop and deploy advanced web applications which can help to effectively manage content and SMART Signage for their customers. The standalone displays’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. All PMH Series models can receive the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.

Samsung PM49H Includes:

  • Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, RemoteController, Batteries, RS232C(IN) adapter, Cover Jack

Samsung PM49H Features:

  • 24/7 operation
  • EdgeLED
  • Anti-Glare
  • Quad Core CPU
  • Wi-fi module embedded
  • All-in-one display solution with embedded MagicInfo Player S4 powered by TIZEN™
  • IP5x certification and non-glare panel to withstand a range of environmental conditions
  • Sleek design with slim depth (30.5mm) and narrow bezels (9mm)

Samsung PM49H Specifications (partial):

  • Model Name: PM49H
  • Panel:
    • Size: 49 CLASS (48.5 inches / 123.2 cm)
  • Display area:
    • 42.2 inches (H) x 23.7 inches (V)
    • 1073.78 mm (H) x 604.00 mm (V)
  • Weight:
    • Set: 29.10 lbs (13.2 kg)
    • Package: 38.58 lbs (17.5 kg)
  • Mechanical:
    • VESA Mount (mm): 400x400
    • Bezel Width (mm): 9.0/9.0/11.0
  • Audio Output: Built in Speaker(10W + 10W)
  • Connectivity:
    • Input:
      • RGB: DVI-I(D-Sub Common), Display Port 1.2 (2)
      • Video: HDMI 2.0 (2) / HDCP 2.2
      • HDCP: HDCP 2.2
      • Audio: Stereo mini Jack, RGB/DVI/HDMI
      • USB: USB 2.0 x 2
    • Output:
      • RGB: DP1.2(Loop-out)
      • Video: N/A
      • Audio: Stereo mini Jack
      • Power Out: N/A
      • External Control: RS232C (in/out) thru Stereo Jack, RJ45
      • External Sensor: N/A
      • Tuner: Yes (only for North America)
  • Power Supply: AC 100 to 240 VAC (+/- 10%), 60 / 50 Hz ± 3 Hz

NOTE: Refer to the label at the back of the product as the standard voltage can vary in different countries.

  • Environmental Considerations:
  • Operating:
    • Temperature: 32 °F – 104 °F (0 °C – 40 °C)
    • With PIM: 50 °F – 104 °F (10 °C – 40 °C)
    • Humidity: 10% – 80%, non-condensing

NOTE: CAUTION - For installing the housing, keep the internal temperature at 104 °F or below.

  • Storage:
    • Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
    • Humidity : 5% – 95%, non-condensing

NOTE: For further information and complete specifications, consult the documentations tab above.
