Pathway Connectivity 1107

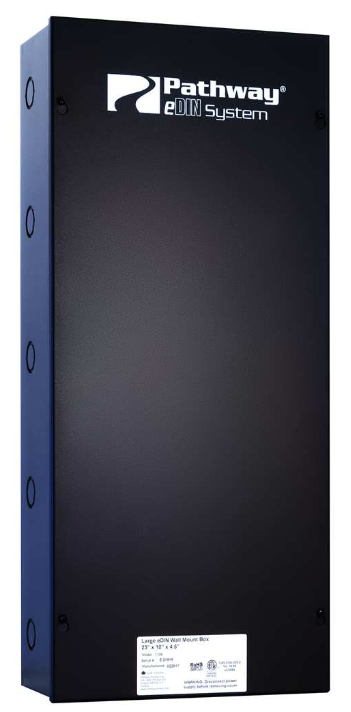

10" x 23" x 4.5" eDIN System Enclosure with Three 9" Horizontal DIN Rails

OUR PART #:  P1107

This Pathway eDIN Large enclosure [1107] is an ETL-listed NEMA1 enclosure for eDIN modules with a power supply.
Learn More
Our Price: $278.52
List Price: $290.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Pathway Connectivity 1107
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This Pathway eDIN Large enclosure [1107] is an ETL-listed NEMA1 enclosure for eDIN modules with a power supply. This model has a trio of 9" Vertical DIN Rails within the enclosure.

Pathway 1107 eDIN Enclosure Features:

  • Contractor friendly, sturdy steel construction
  • Conduit knockouts provided on all sides
  • Logical arrangement makes wiring neat and easy
  • Barriered high-voltage section for power supplies (power supply not included)
  • Internal DIN rail can be used to mount eDIN and other standard DIN rail modules
  • Pre-installation service of eDIN modules and power supply available; local contractor only lands main power and data lines
  • When eDIN modules are factory-installed in a Pathway enclosure, assembly is ETL listed

Pathway 1107 eDIN Enclosure Specifications:

  • DIN Rail: 3 x 9" (228mm) horizontal
  • Physical:
    • 10.25" x 23.25" x 4.5" (260mm x 590mm x 120mm)
    • Depth: 4.5" (120mm)
    • 13.5 lbs (6 kg)
  • Compliance: ETL-listed
