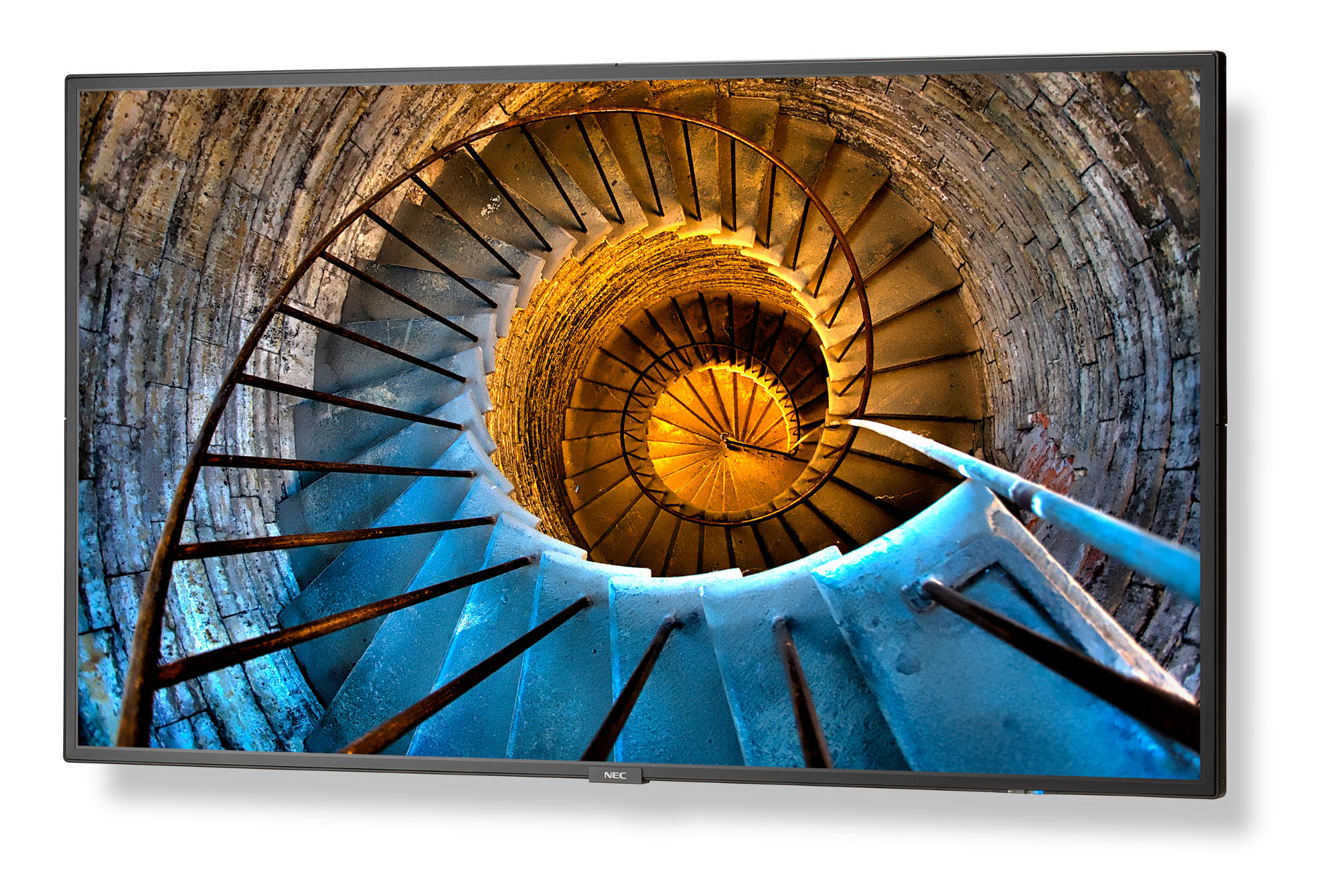

NEC Visual Systems P484
48" Professional-Grade Large Format Display for Digital Signage

OUR PART #:  P484

Our Price: $1,579.00
List Price: $1,737.00
You save 9%!
Write the first review.
NEC Visual Systems P484
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The P484 from NEC is a 48-inch large format display that features a brand new aesthetically-focused design which allows for seamless integration into any digital signage environment while maintaining the professional ruggedness necessary for the transportation, restaurant and financial industries. And, you can create maximum visual impact through seamless simplicity with the professional NEC P series product lineup. New contemporary and slim mechanical design with focused aesthetics allows the NEC P484 to deliver smooth and stylistic integration into any type of environment. Its full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments.

With a wide range of the latest connectivity interfaces including resolution support up to Ultra High Definition at 60Hz, this large format display offers the future-proofing necessary for the investment. The P484 also includes expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The NEC P series boasts 700 cd/m2 brightness along with a new anti-glare surface that allows for efficient readability in higher ambient light situations and is ideal for 24/7 signage in airports, quick-serve restaurants, financial institutions and command and control.

NEC P484 Includes:

  • 9.8 ft (3m) Power cord
  • 5.9 ft (1.8m) DVI-D cable
  • Wireless remote control
  • Batteries
  • CD-ROM (User Manual)
  • SD Card Cover Slot
  • Screws

NEC P484 Features:

  • Stylish and sleak design: Allows for easy and unobtrusive integration into any environment
  • 700 cd/m² brightness: Combined with full HD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions
  • Future proof modular expansion: Options including the ability to integrate Open Pluggable Specification (OPS) or a Raspberry PiCompute Modules seamlessly into the display
  • SpectraView Engine: Allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance
  • Integrated Media Player: Allows for audio, video or image playback via USB or SD card that is also upgradeable via LAN
  • Industrial-strength, premium-grade panel: With additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation

NEC P484 Specifications (partial):

  • LCD Module:
    • Panel Technology: SPVA
    • Viewable Image Size: 48"
    • Native Resolution: 1920 x 1080
    • Brightness (Typical/Minimum): 550 cd/m2 / 700 cd/m2
    • Contrast Ratio (Typical): 4000:1
    • Viewing Angle: 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
    • Aspect Ratio: 16:9
    • Displayable Colors: Over 1.07 Billion
    • Orientation: Landscape, Portrait, Face Up, Face Down
    • Panel Haze: (%) 25
  • Connectivity:
    • Input Terminals:
      • Digital: HDMI 2.0 x2 (with HDCP), DVI-D (with HDCP), DisplayPort x2 (with HDCP
      • Analog: VGA 15-pin D-SUB, RCA Composite
      • Audio: 3.5mm Audio Mini Jack x2, DisplayPort Audio x2, HDMI Audio x3
      • External Control: LAN (100Mbit), 3.5 Mini Jack IR Remote, RS232C
      • Data: microSD (Media Player), USB 2.0 (Media Player), USB 2.0 (Service), USB Type-B (Upstream), USB 2.0 x2 (Compute Module, Powered 5V/2A)
    • Output Terminals:
      • Digital: DisplayPort (Outputs DisplayPort or OPS)
      • Analog: isplayPort (Outputs DisplayPort or OPS)
      • Audio: 3.5mm Audio Mini Jack
      • External Control: LAN (100Mb)
  • Power Consumption:
    • On (Typ/Max): 115W/140W
    • Network Standby: 3W
    • Normal Standby: <0.5W
    • Current Rating: 3.1A - 1.2A @ 100V - 240V
    • Speaker Rating: Integrated 10W x 10W, Optional 15W x 3
  • Physical:
    • Bezel Width (L/R, T/B): 13.2mm/13.2mm/13.2mm/13.2mm
    • Net Dimensions (Without stand; Wx H x D):
    • 42.8 x 24.6 x 2.2 in.
    • 1086.5 x 625.3 x 54.7mm
    • Net Weight (Without Stand): 38.8lbs / 17.6kg
    • VESA Hole Configuration 4x M6 x 12mm (300 x 300)
  • Sensors:
    • Ambient Light Sensor: Integrated and programmable
    • Human Sensor: Optional through KT-RC2 Accessory
    • Temperature Sensor: Integrated and programmable; linked to cooling fans
    • NFC Sensor: Integrated; works in conjunction with free NEC Intelligent Wireless Data Application
  • Environmental Conditions:
    • Operating Temperature: 32 to 104F (0 to 40C)
    • Operating Humidity: 20-80%
    • Operating Altitude: 9843ft (3000m)
    • LIMITED WARRANTY: 3 years Advanced Replacement

NOTE: For complete information and specifications, consult the documentations tab above.
